DOT Approved Retaining Wall Caps
This specialized family of wall caps meets or exceed the DOT specification standards of particular states. See the product guide for state specific details
Colors
Applications
Find an Authorized Dealer in your area
Surfaces and Edges

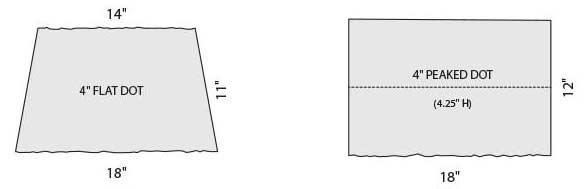

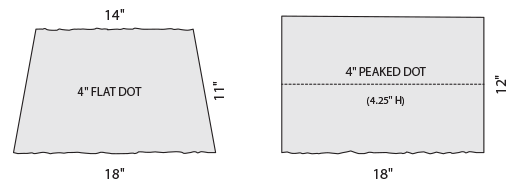

4″ Flat DOT Cap
Meets/exceeds Wisconsin Dept. of Transportation specifications. Split-face front and back, trapezoid design, ideal for use on 8” (DOT) Classic Walls.
4″ Peaked DOT Cap
Meets/exceeds Minnesota and Iowa Dept. of Transportation specifications. Smooth top/sides, rectangle design, ideal for use on 8” (DOT) Classic Walls.
Colors
Gray
Pick a Color
Gray
Sandstone
Technical Resources
| Cap | Size | Face Area | Weight | Units/Layer | Layers/Pallet | Unit/Pallet | Area/Pallet | Weight/Pallet |
|---|---|---|---|---|---|---|---|---|
| 4″ Flat Cap | 18 W x 11 x 4″ (Front) 14 W x 11 x 4″ (Back) |
1.33 ln. ft. | 55 lbs. (split face front/back) |
9 | 5 | 48 | 64 ln. ft. | 2,537 lbs. |
| 4″ Peaked Cap | 18 W x 12 x 4″ H | 1.5 ln. ft. | 70 lbs. (split face front) |
8 | 4 | 32 | 48 ln. ft. | 2,290 lbs. |

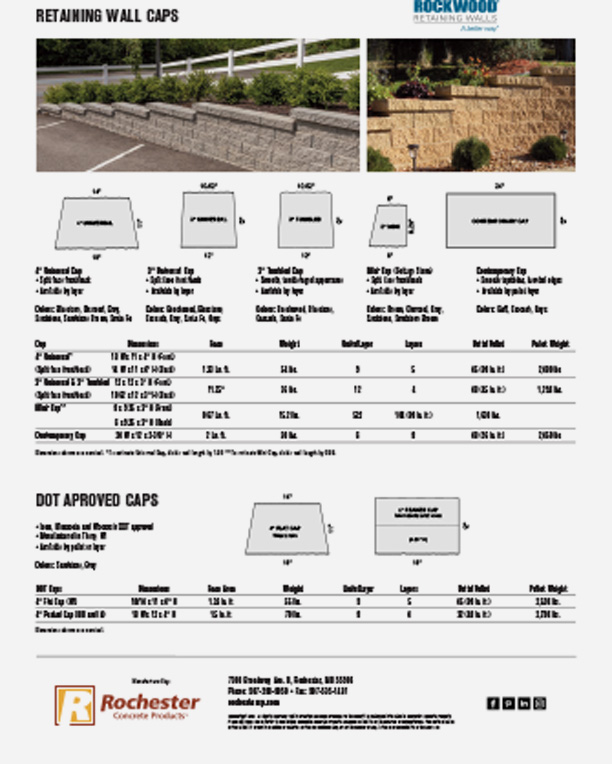

Product Catalog
