Palisade™ Wall
Palisade Wall is the first single-block, facemix retaining wall in the U.S.. An enhancement to both traditional and contemporary landscapes, each block measures 40″ long, 8″ high, and 12″ deep, weighing in at 330 lbs. Available in two refined colors, Café and Cascade, this system features two unit types delivered on separate pallets: Standard Units with facemix on the front and Corner/End Units with facemix on the front and one end.
Colors
Applications
- Retaining Wall
Find an Authorized Dealer in your area

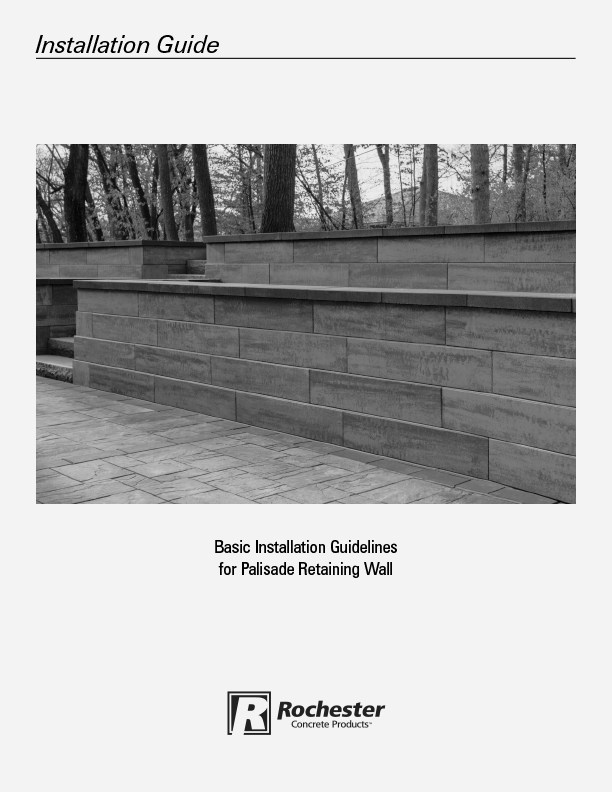

Ordering and Installation
- Smooth surfaces, 90° corners, chamfered face
- Builds linear gravity walls with 0.75″ setback (5.3°), adjustable to vertical
- Chroma Color facemix technology on face
- Corner/End units have Chroma Color on face and sides
- Lifting device required
- Cap with Contemporary Wall Cap
- For quick and easy Palisade Wall installation, use base block (gray)
- Available by pallet
- Dimensions shown are nominal

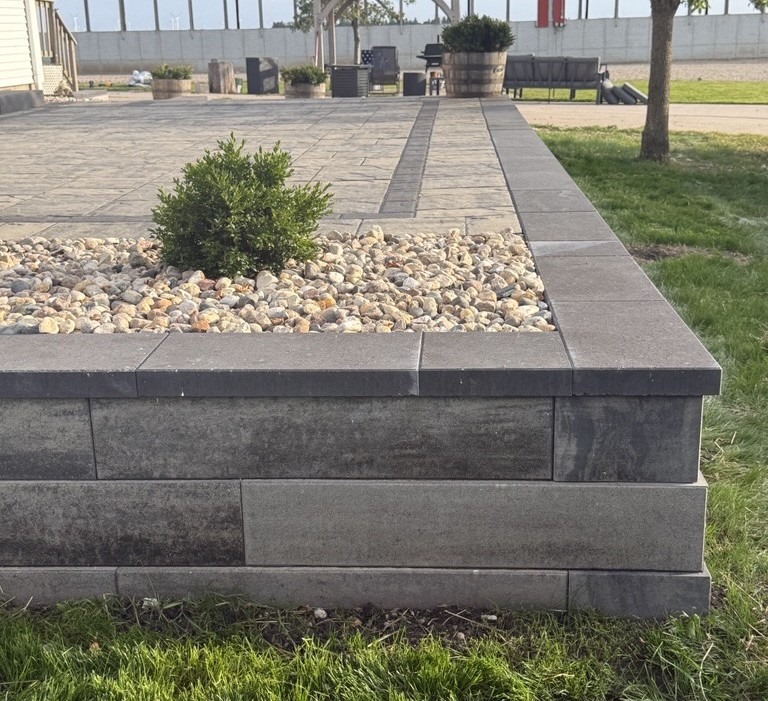

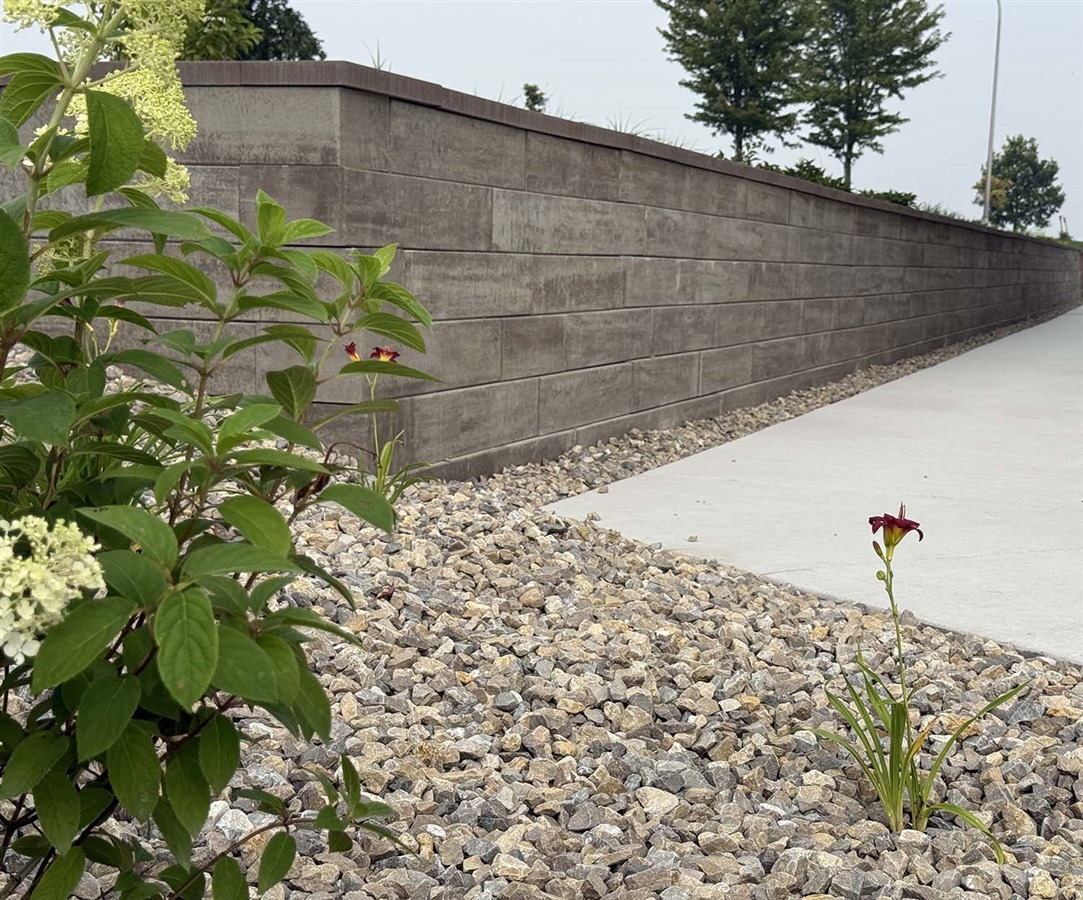

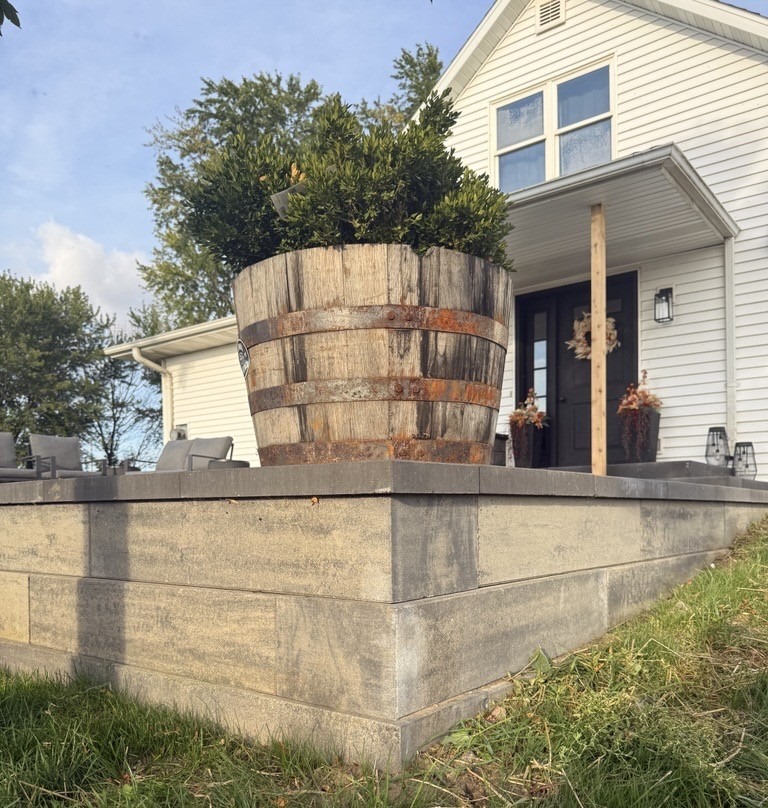

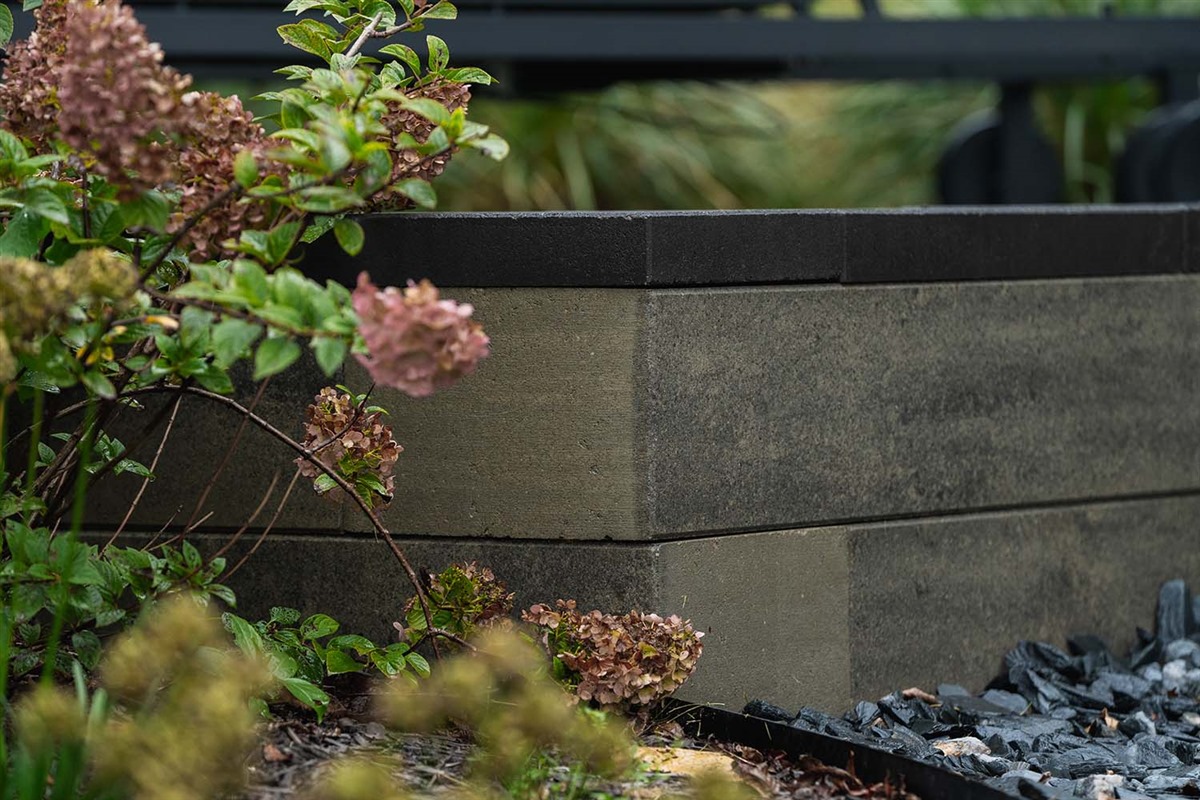

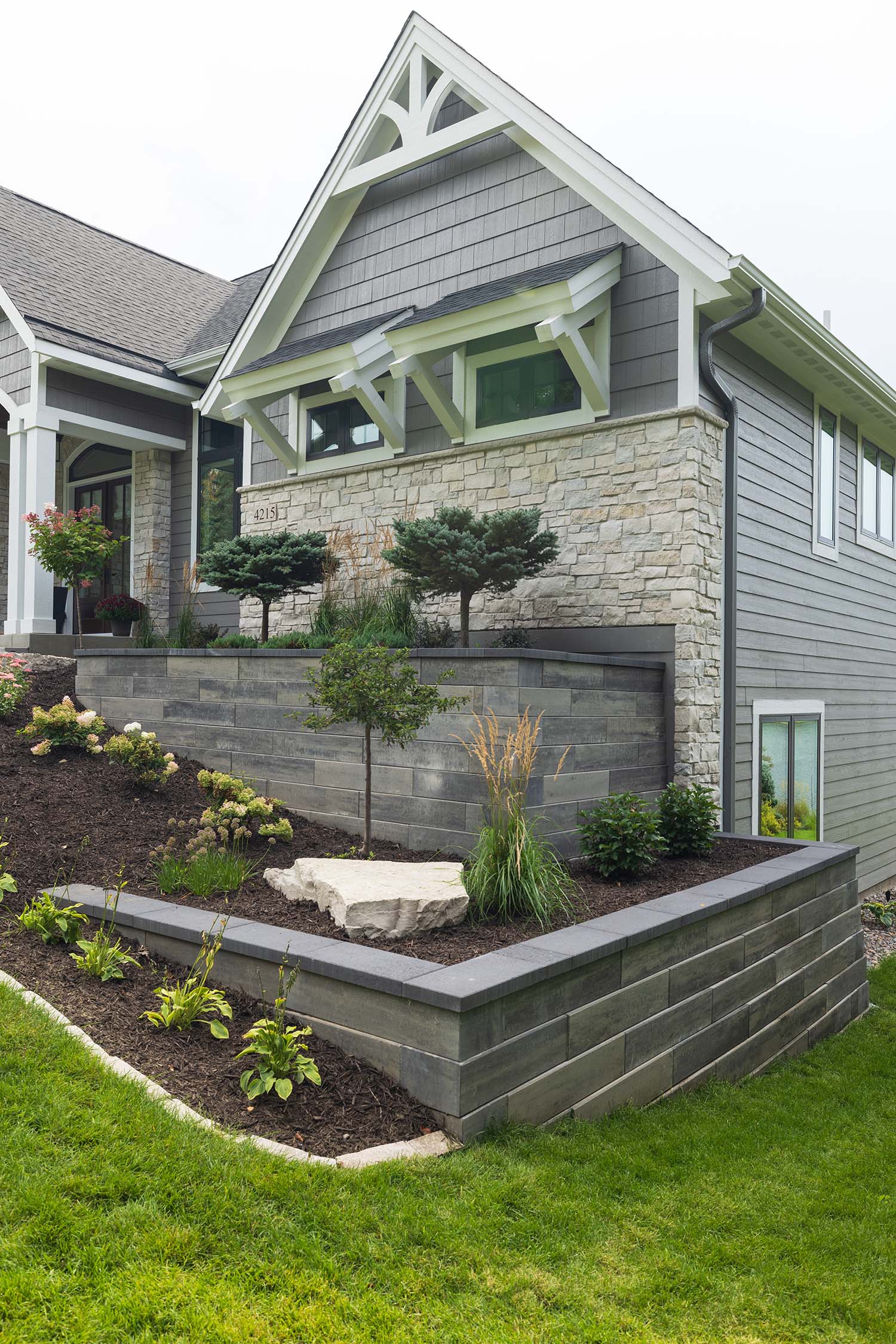

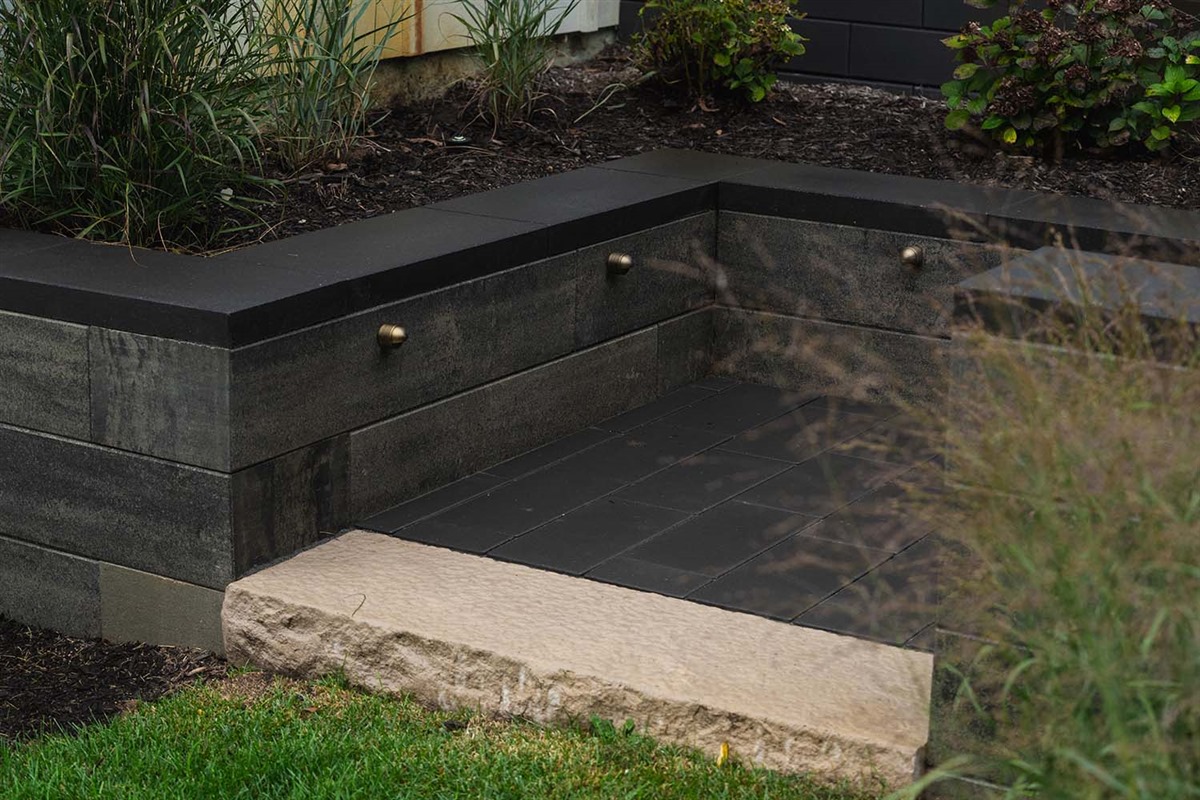

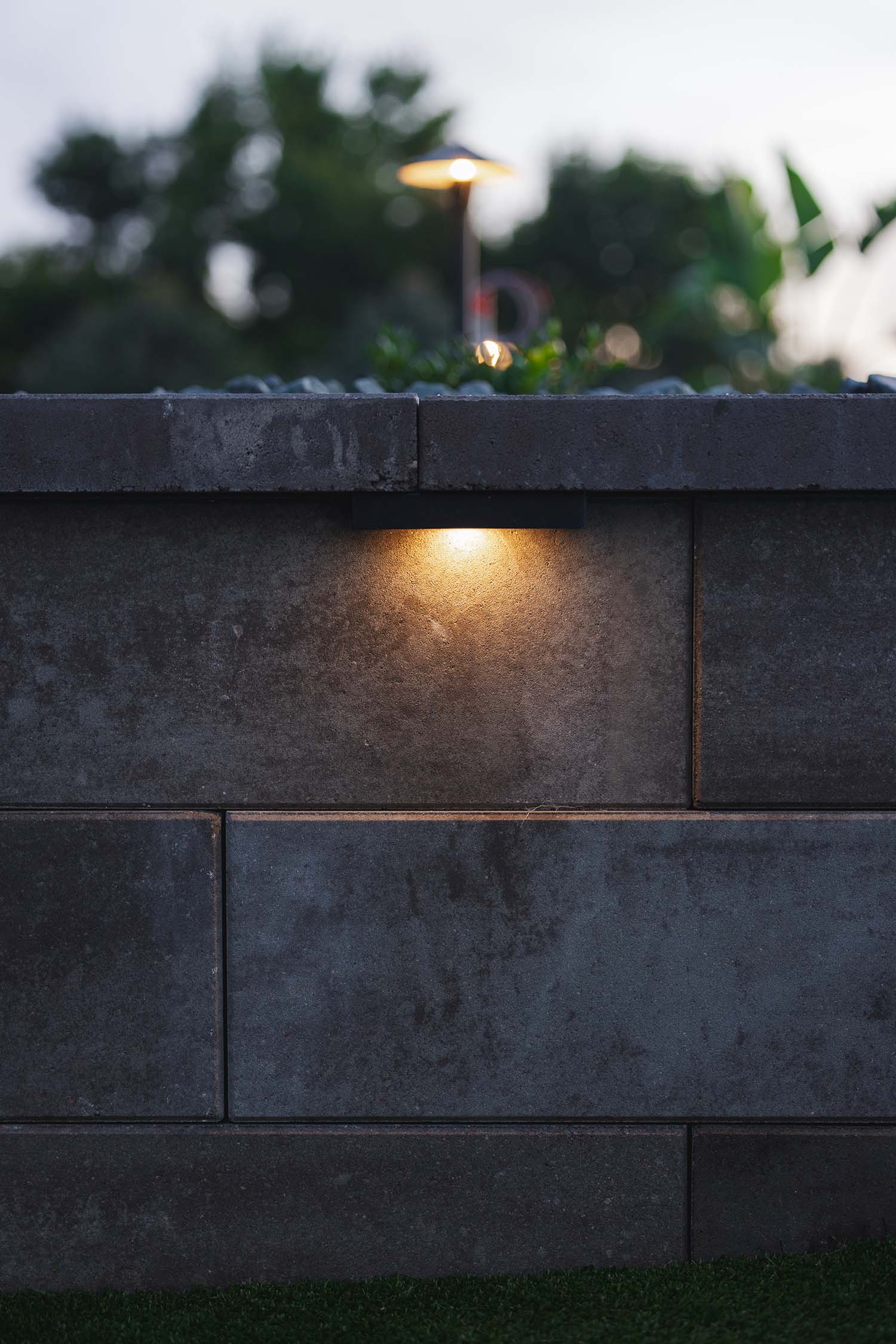

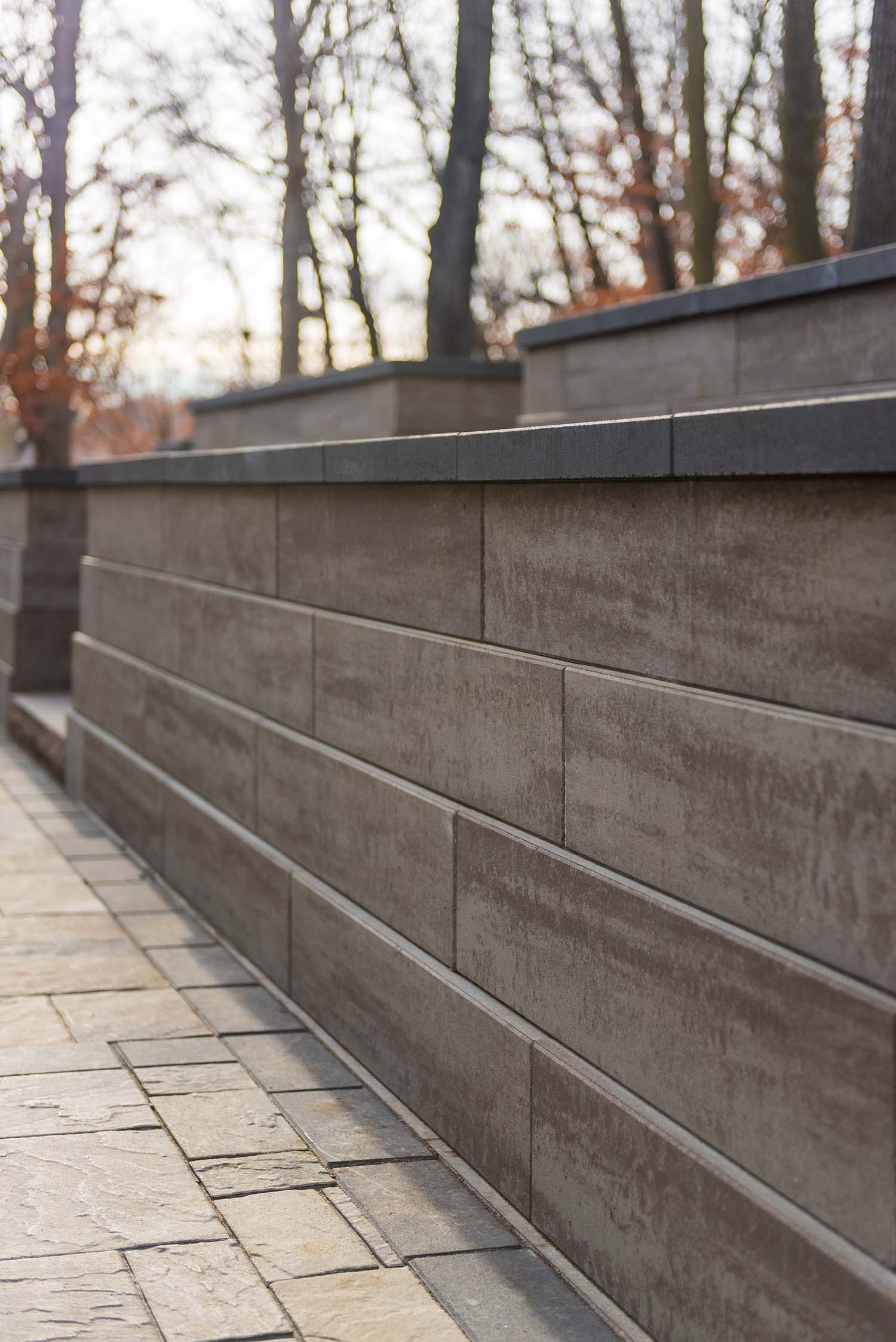

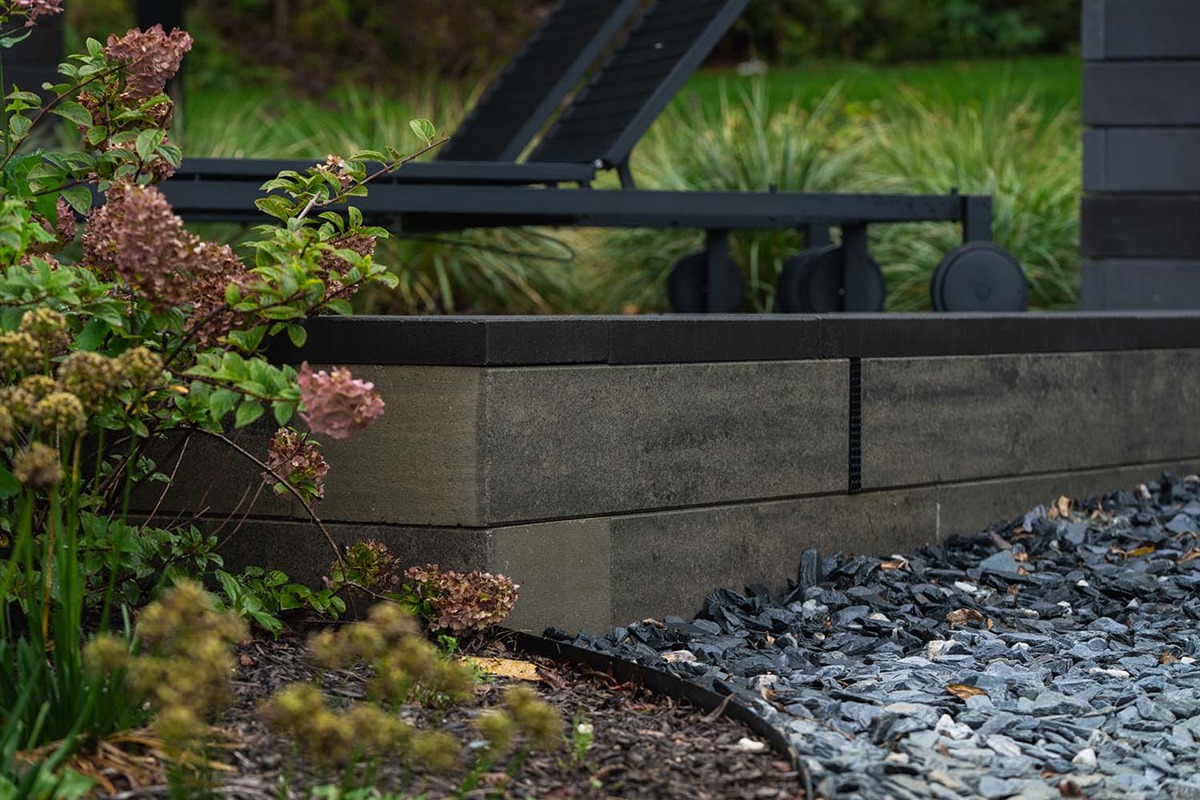

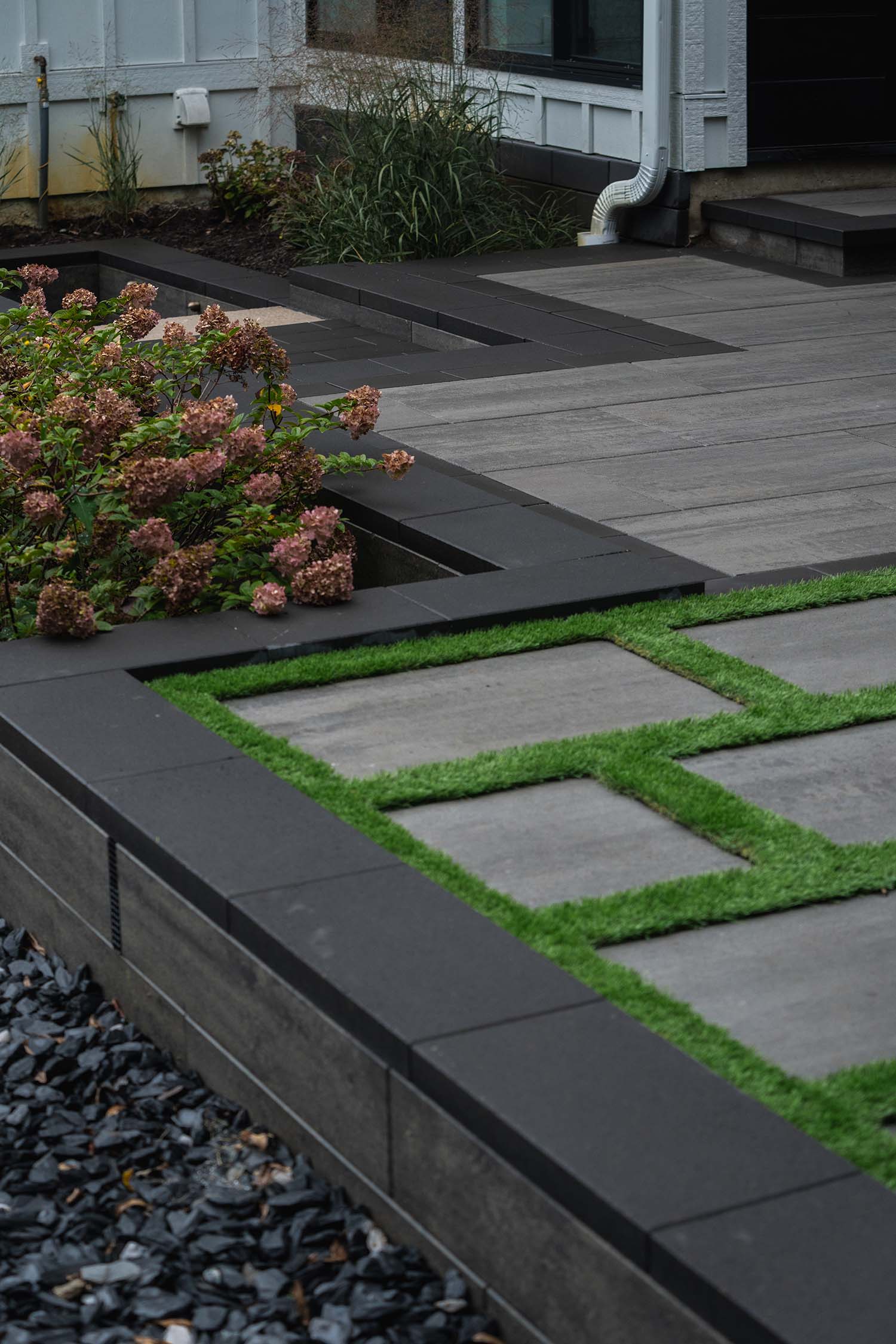

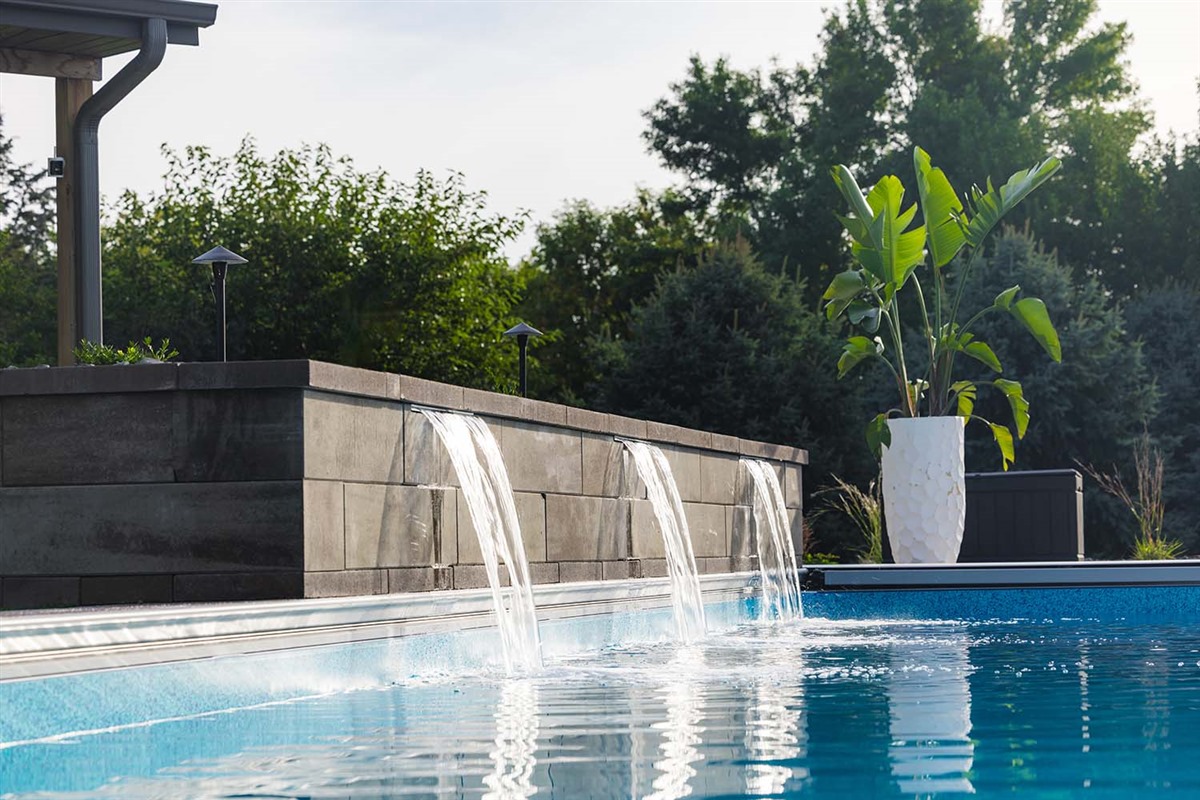

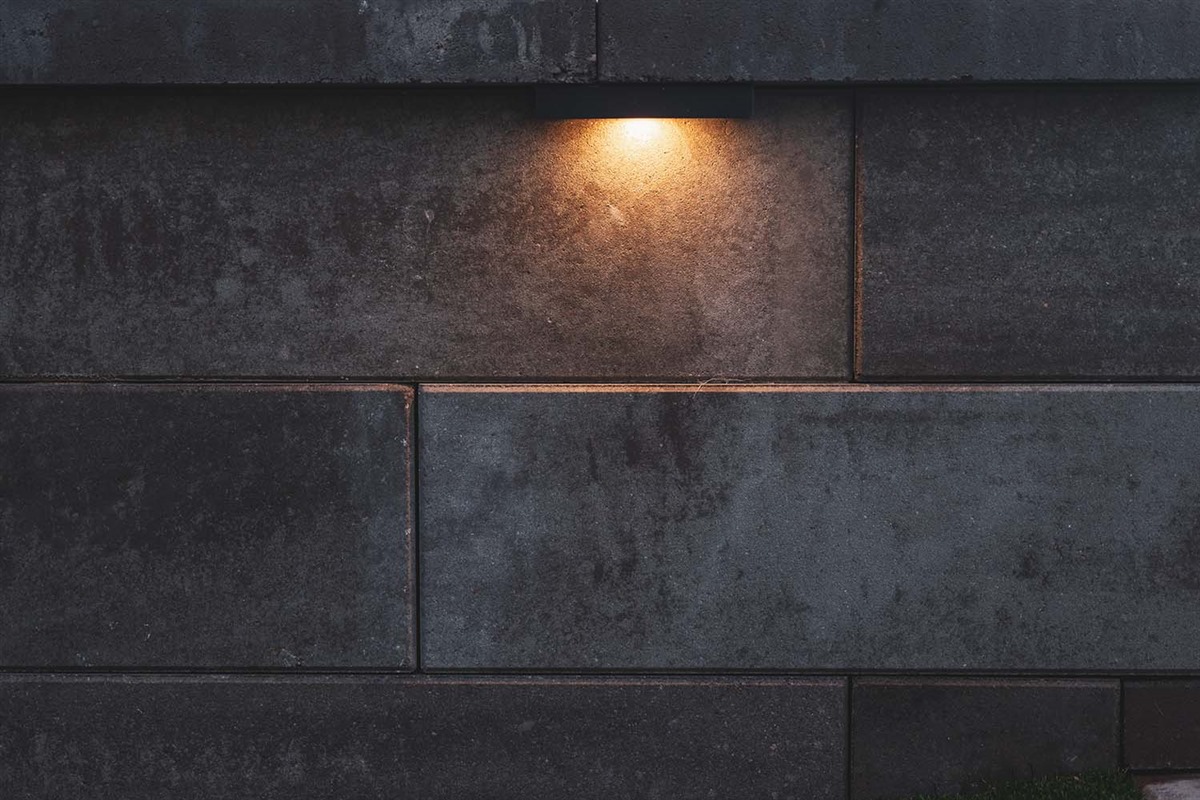

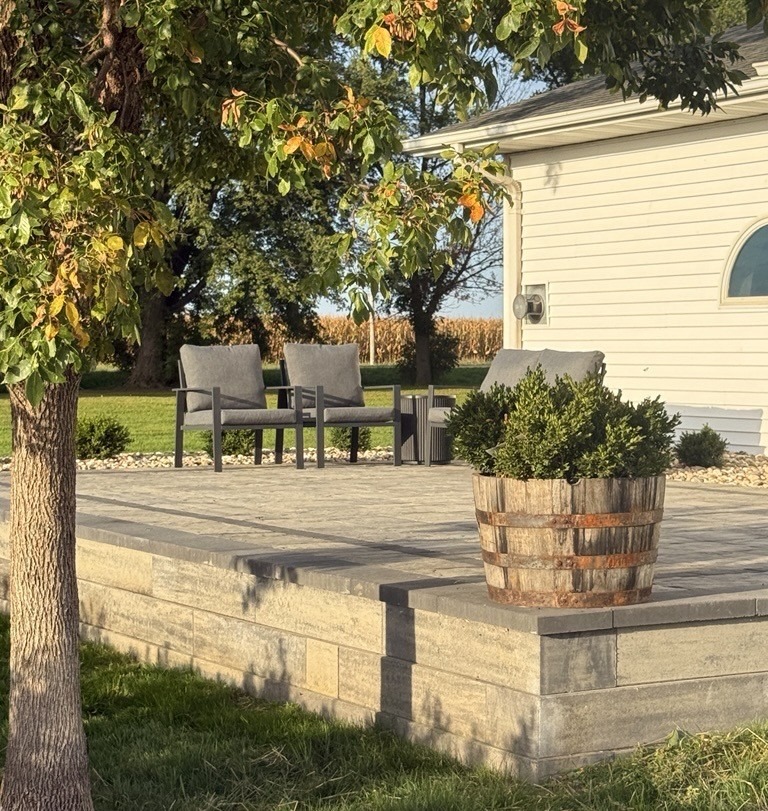

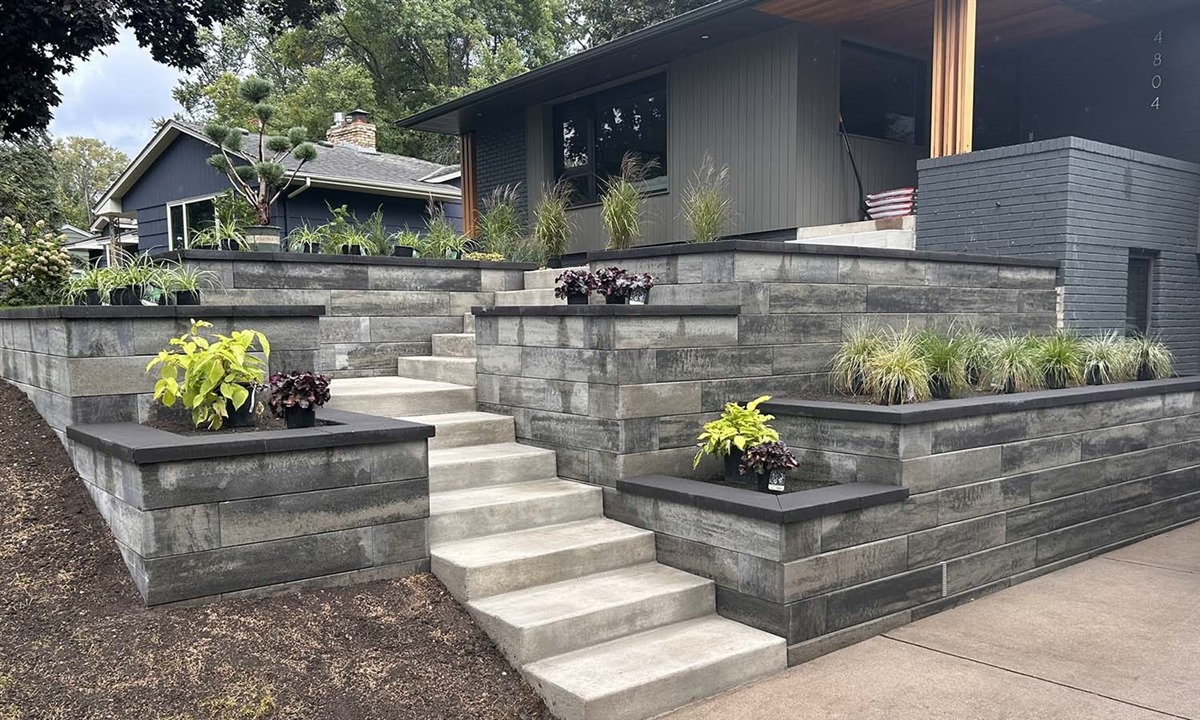

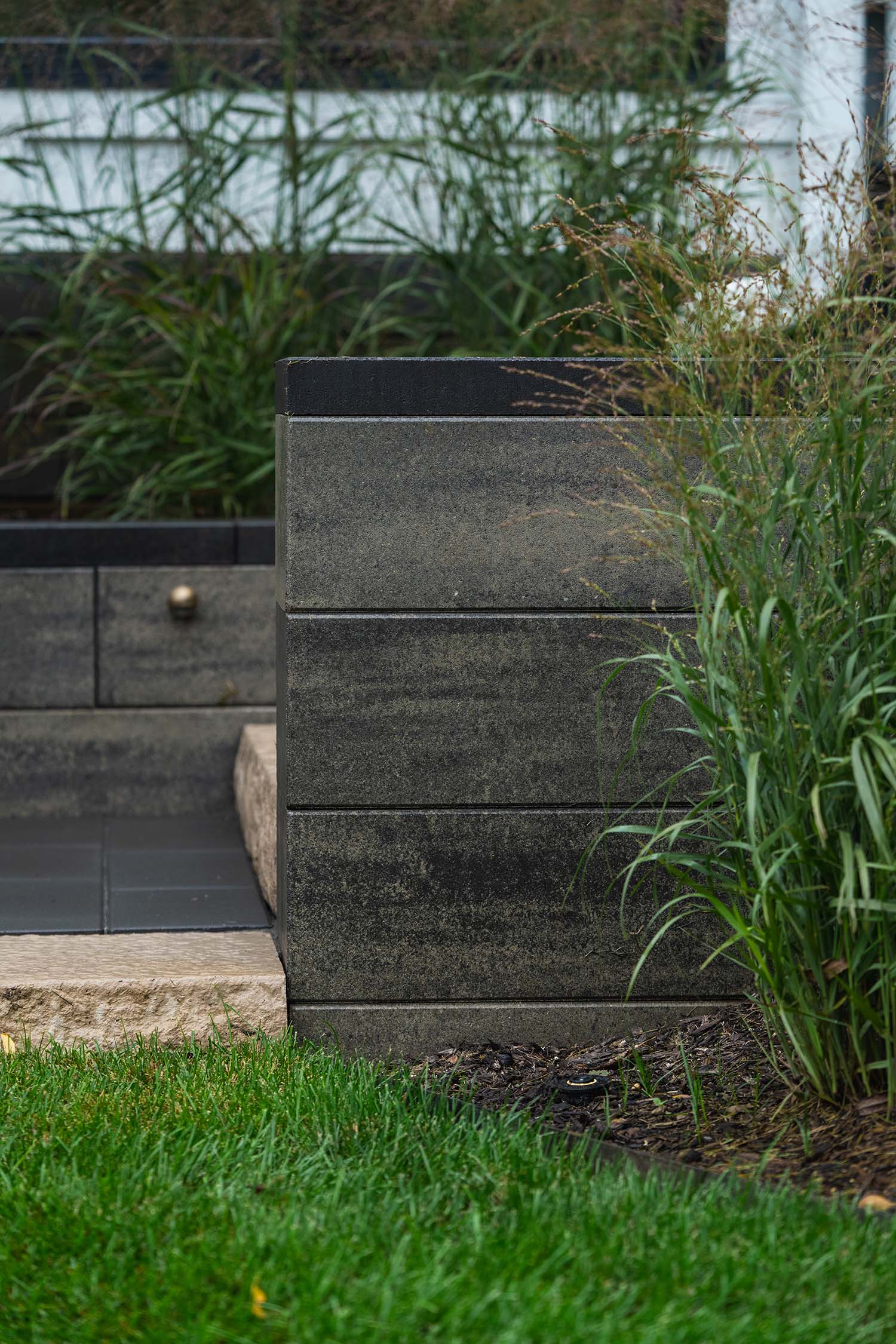

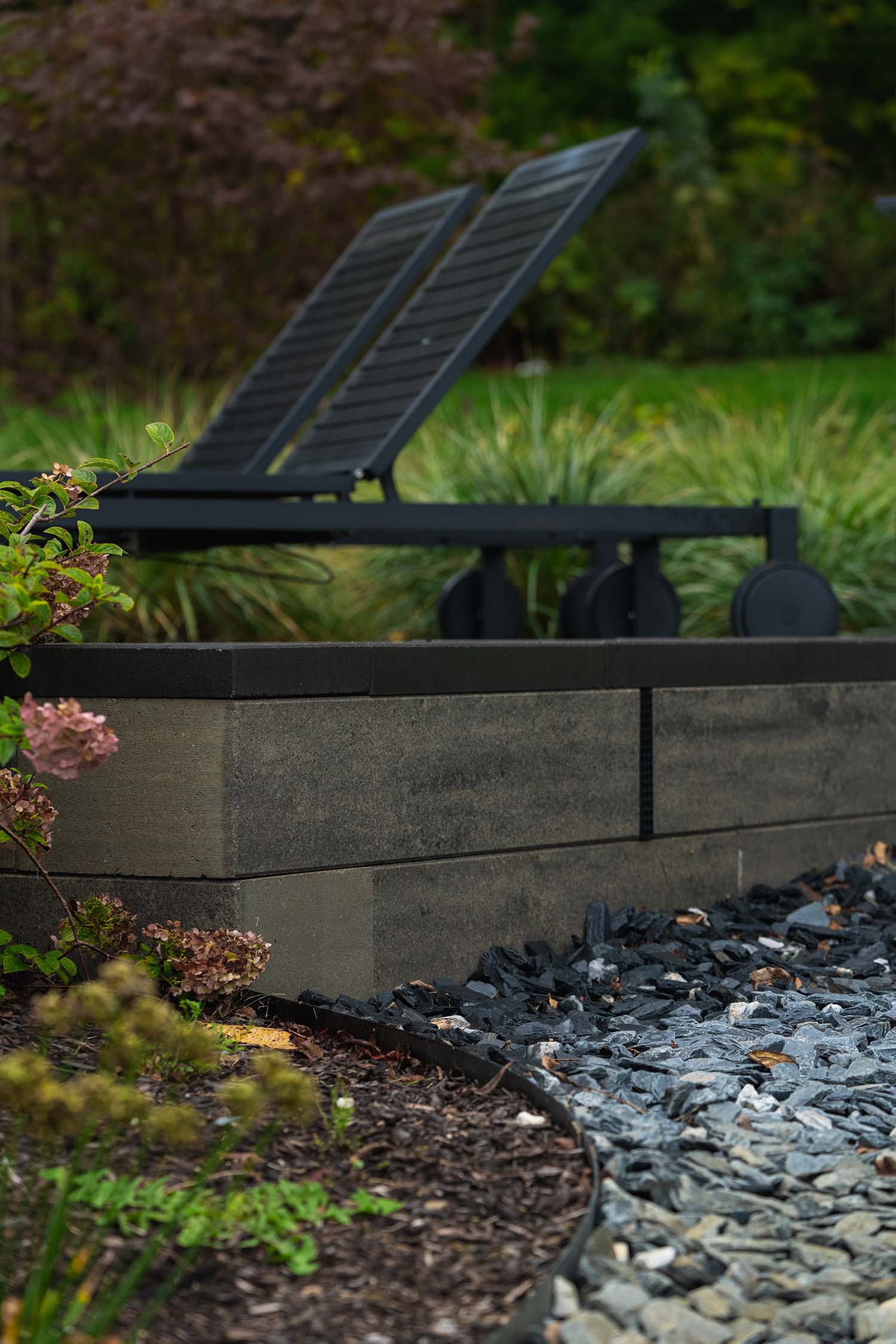

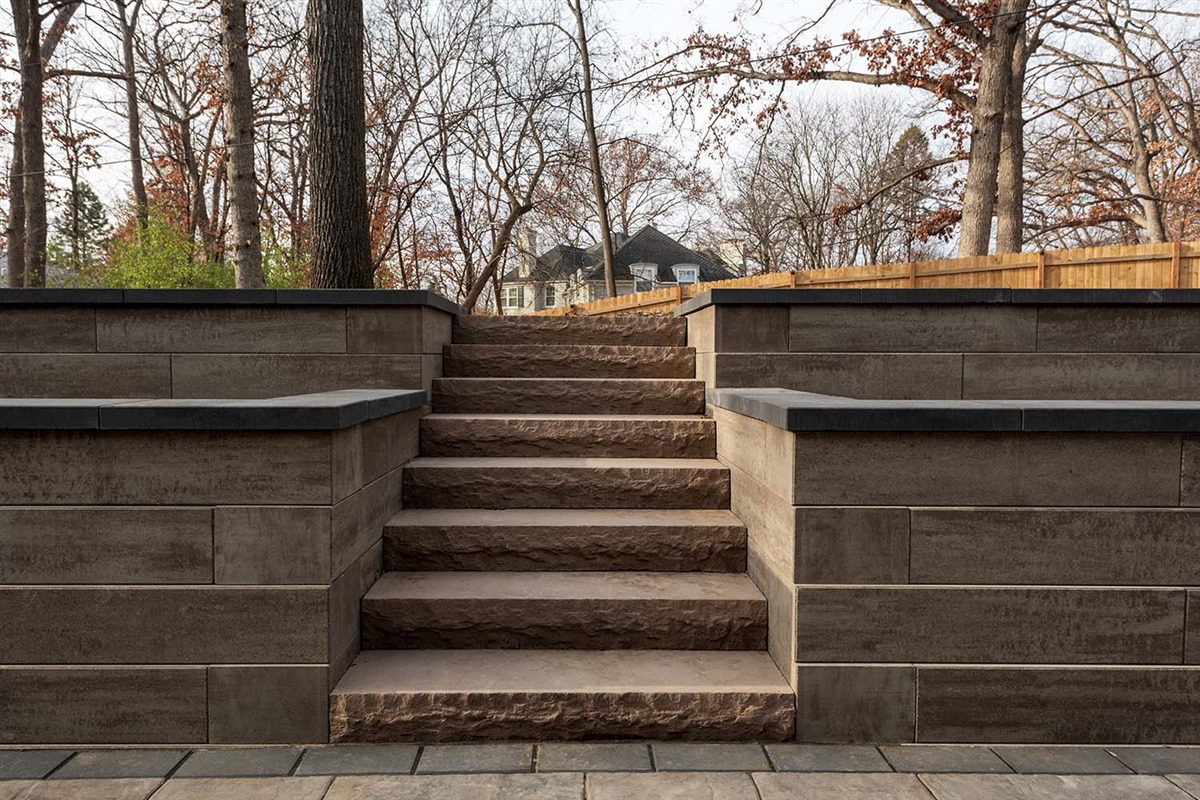

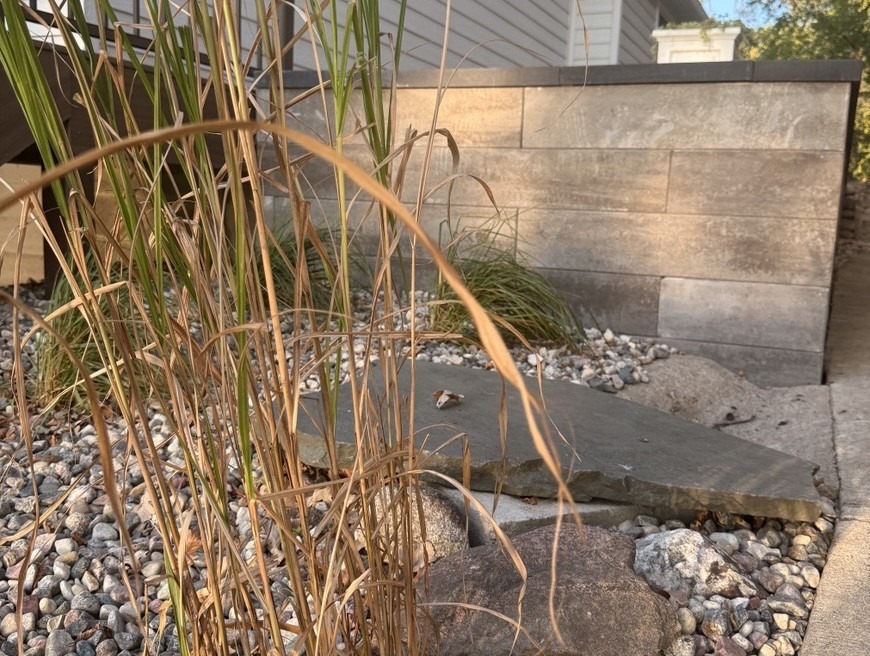

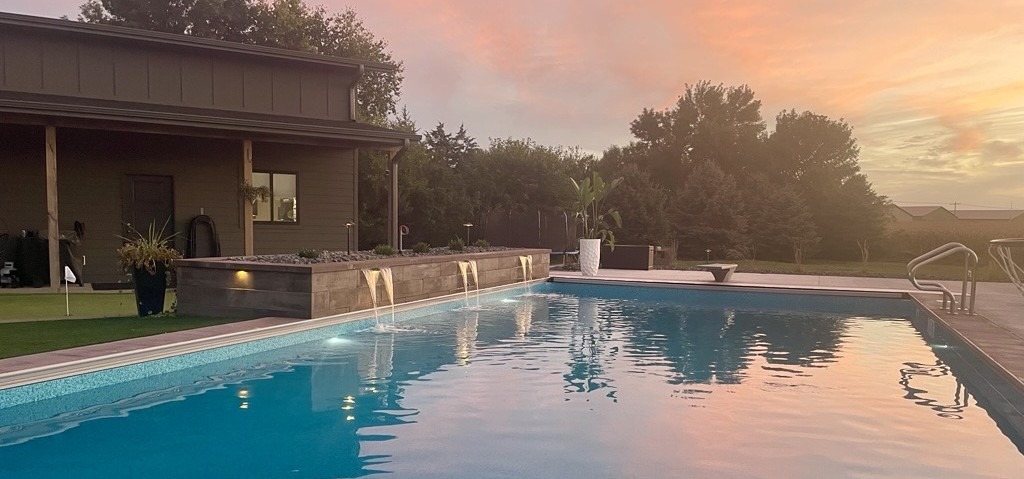

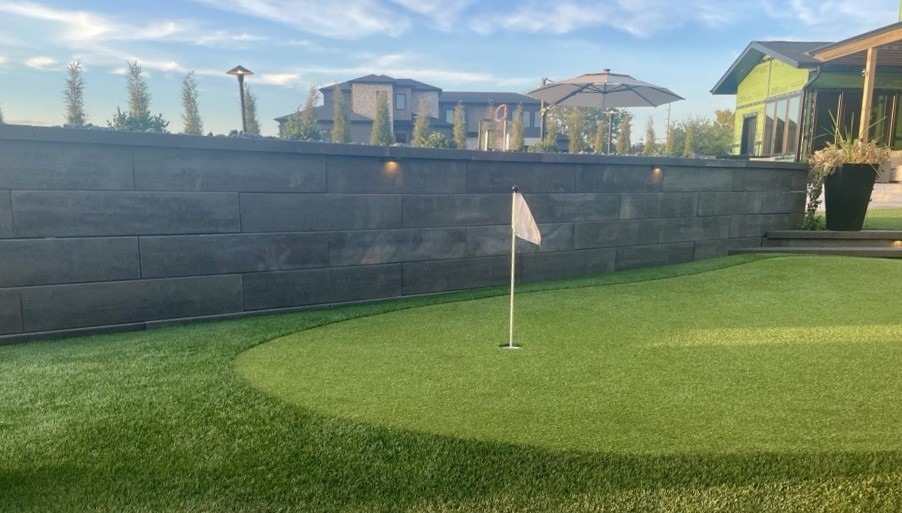

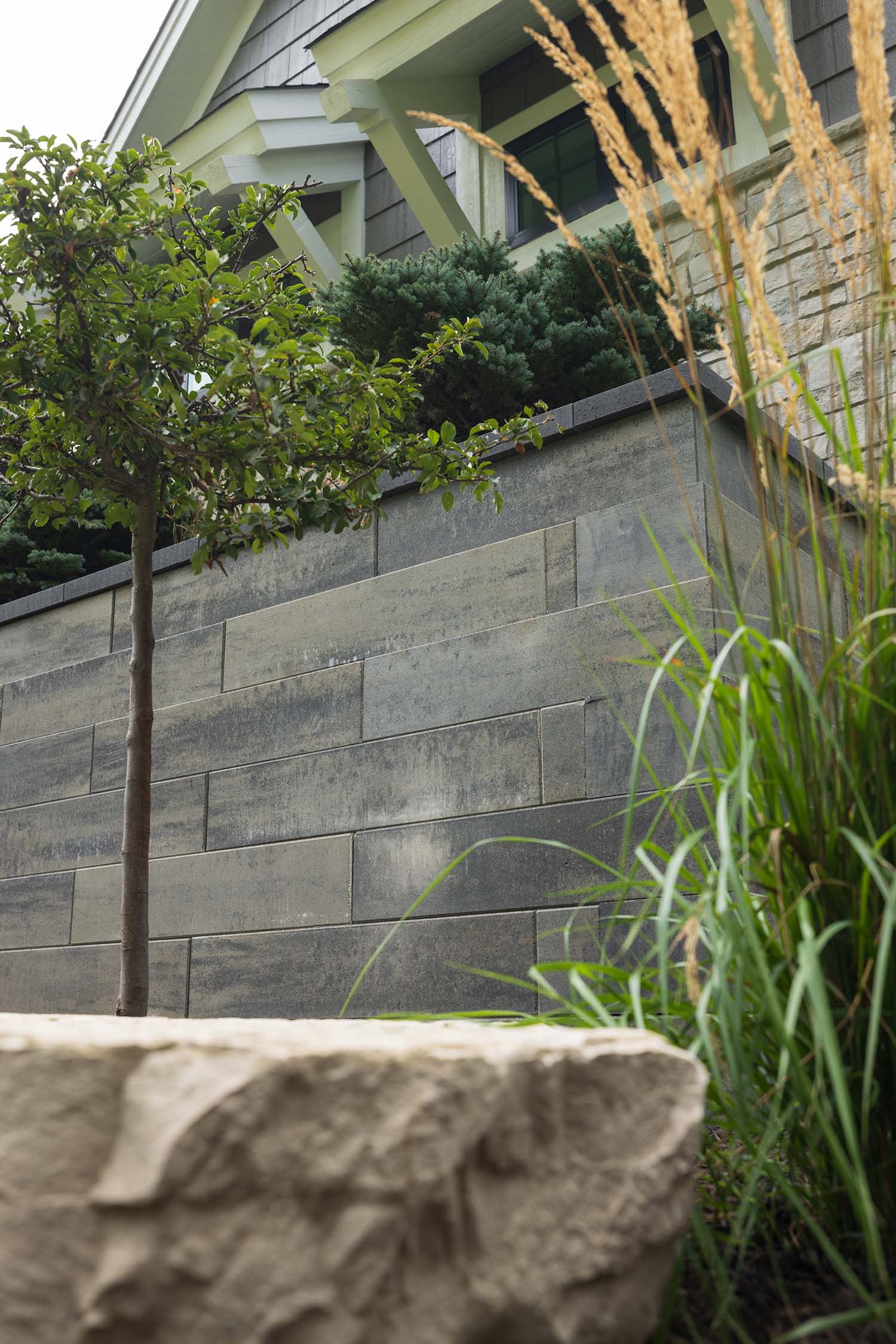

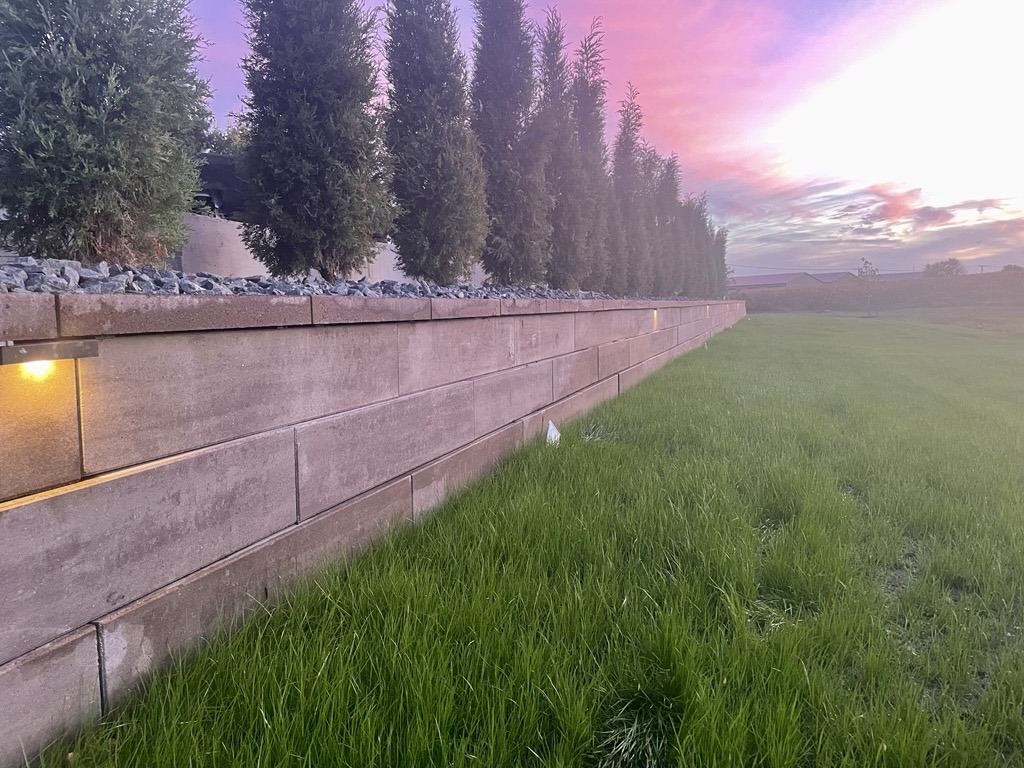

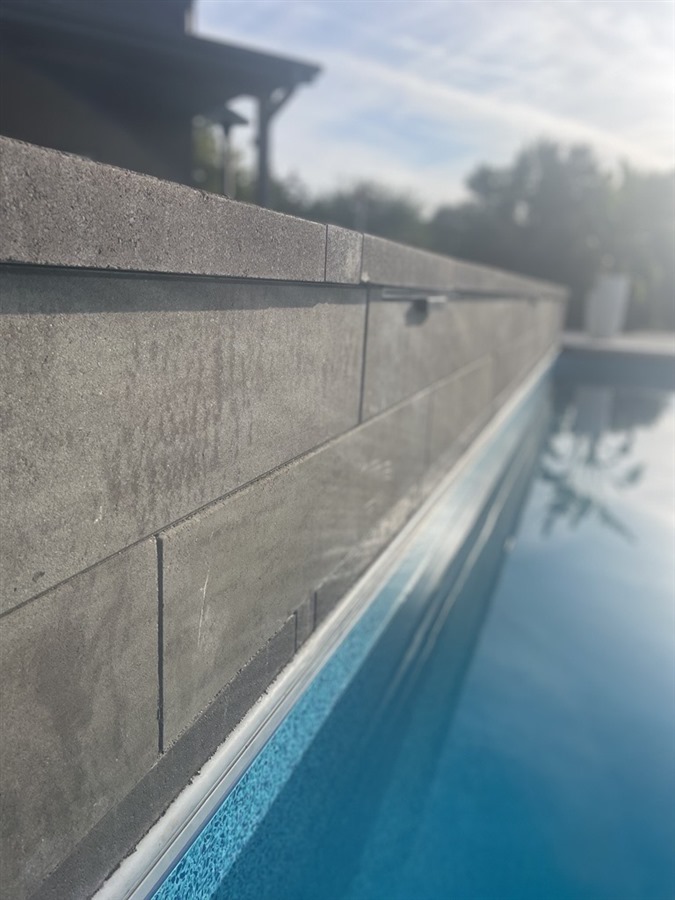

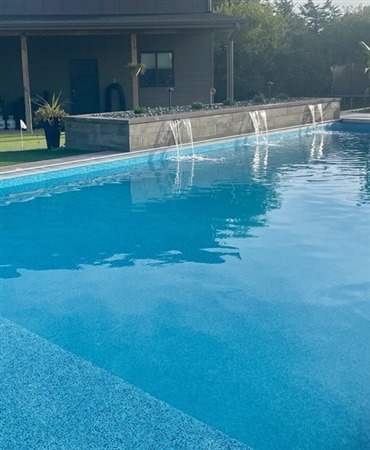

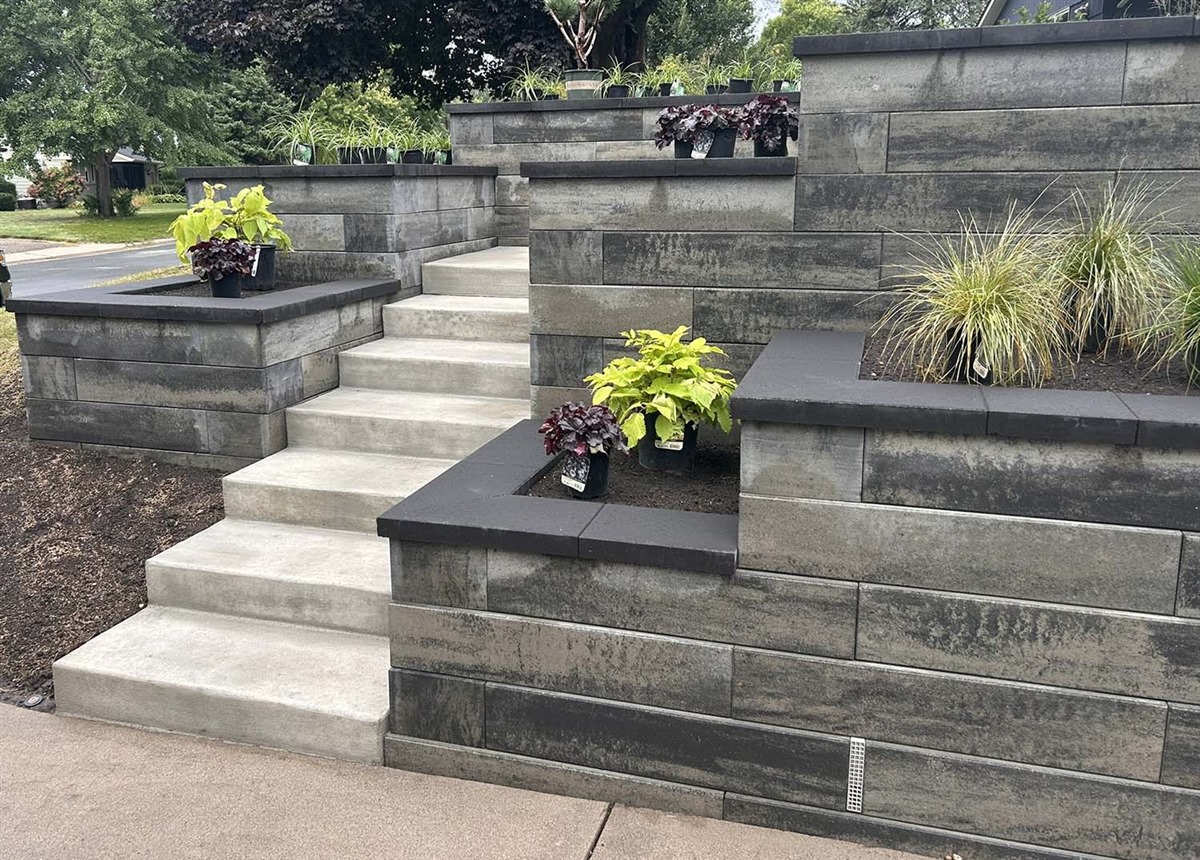

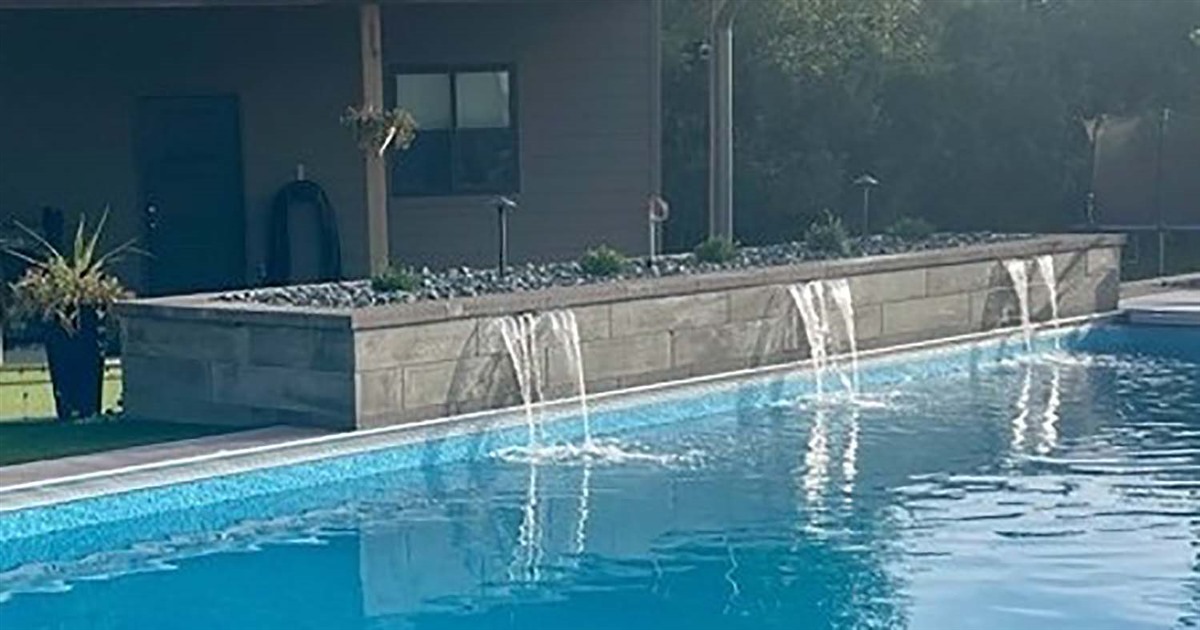

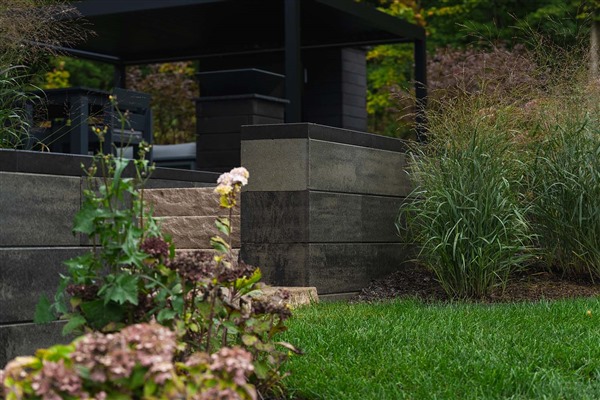

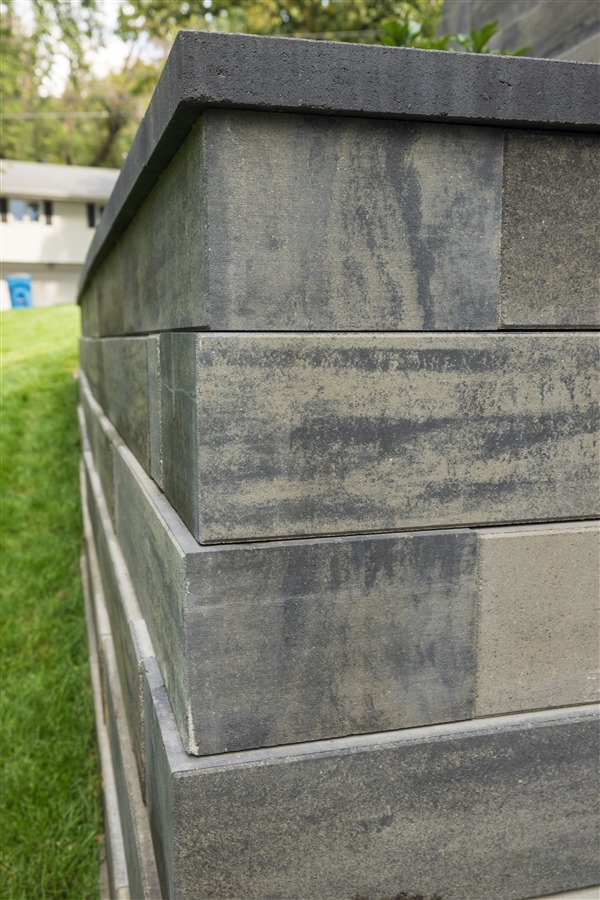

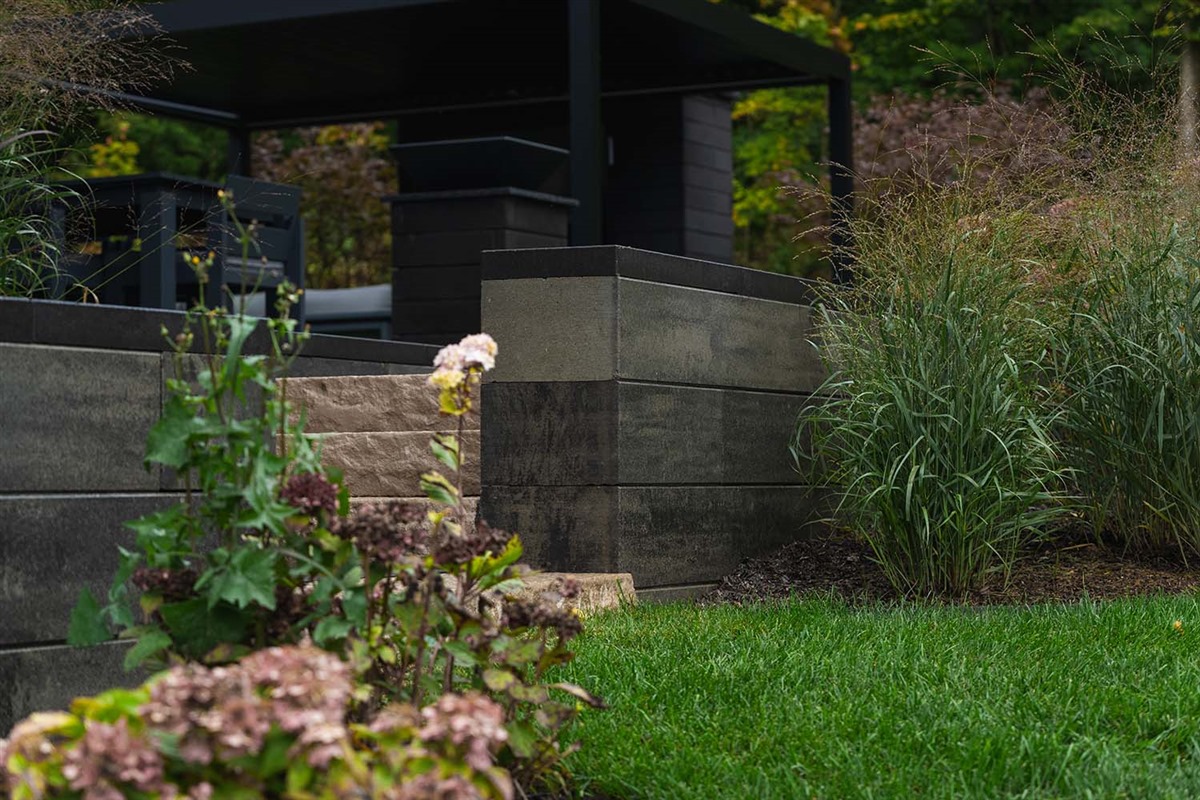

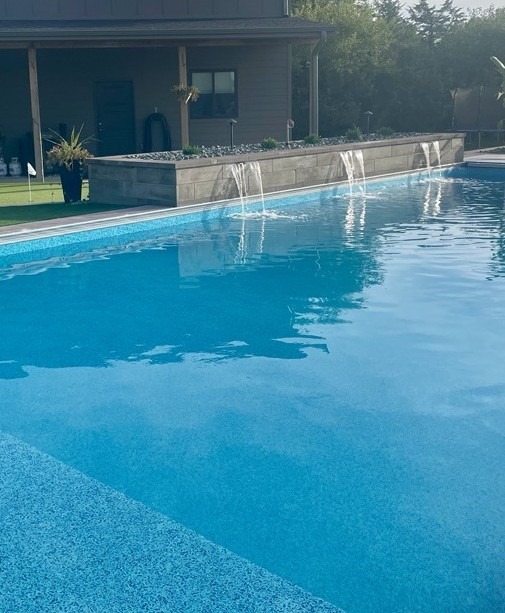

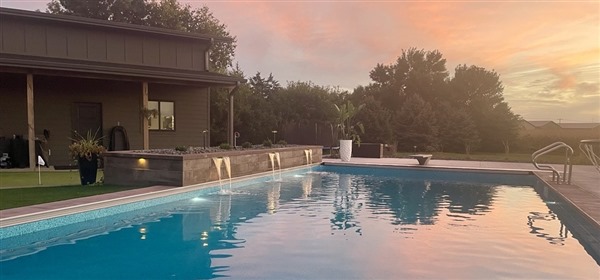

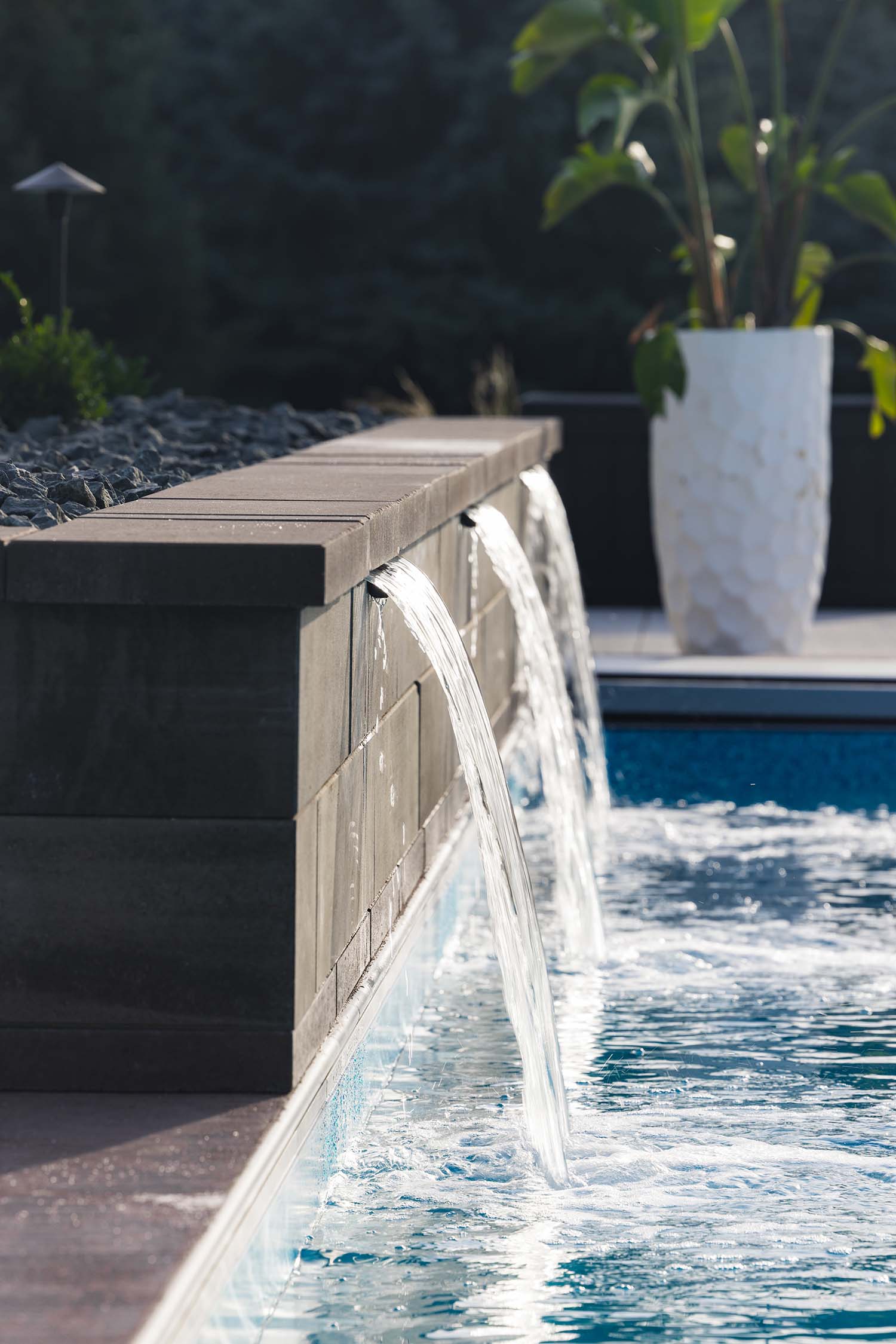

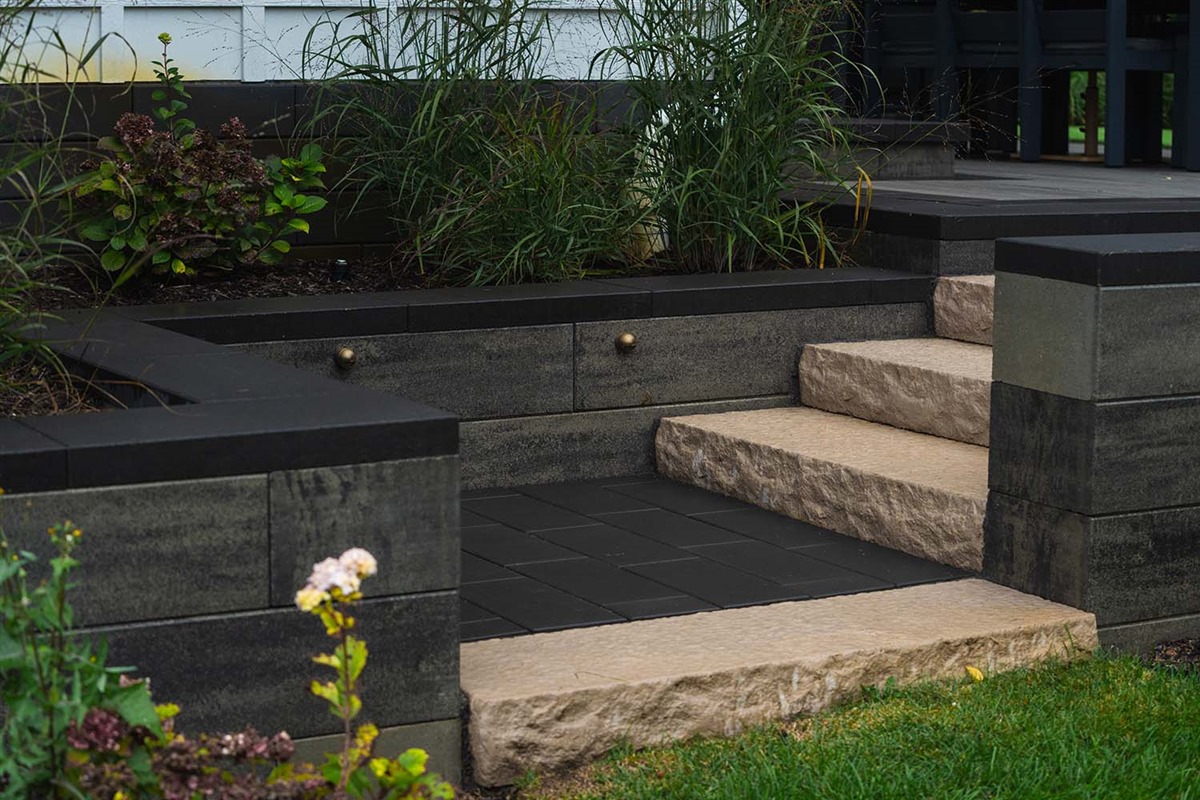

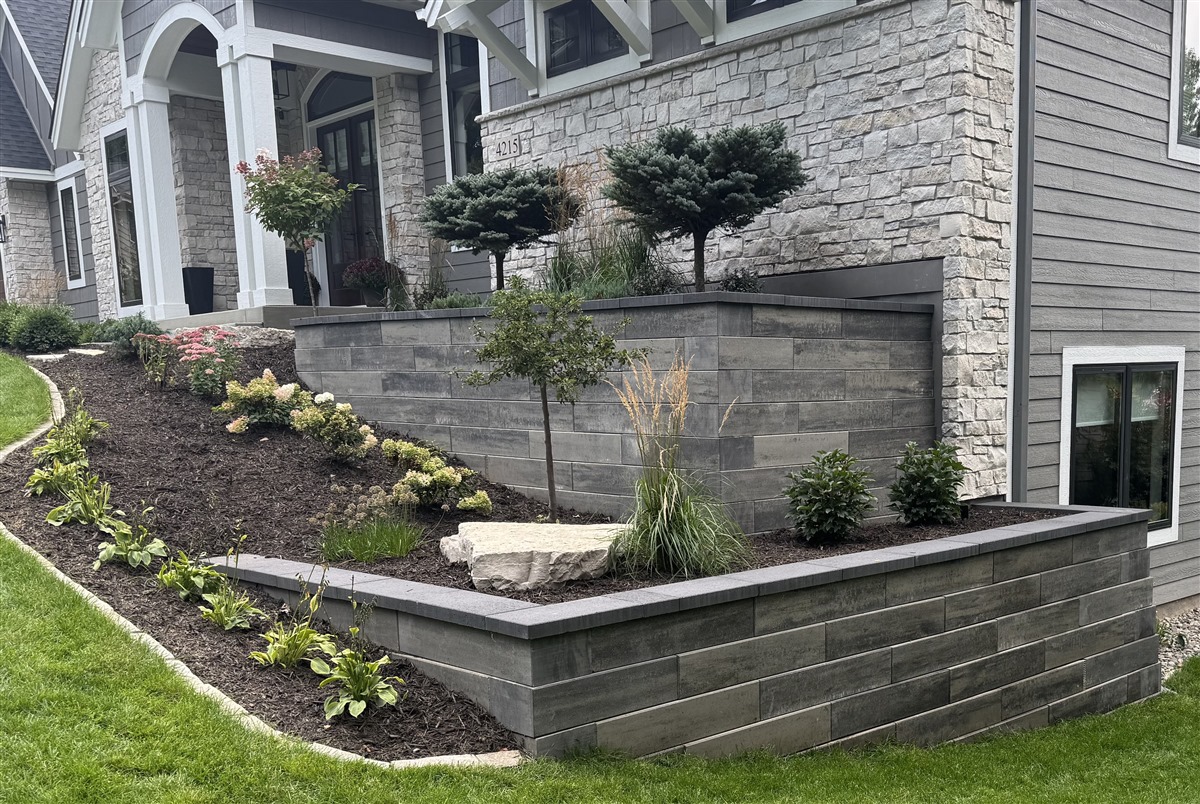

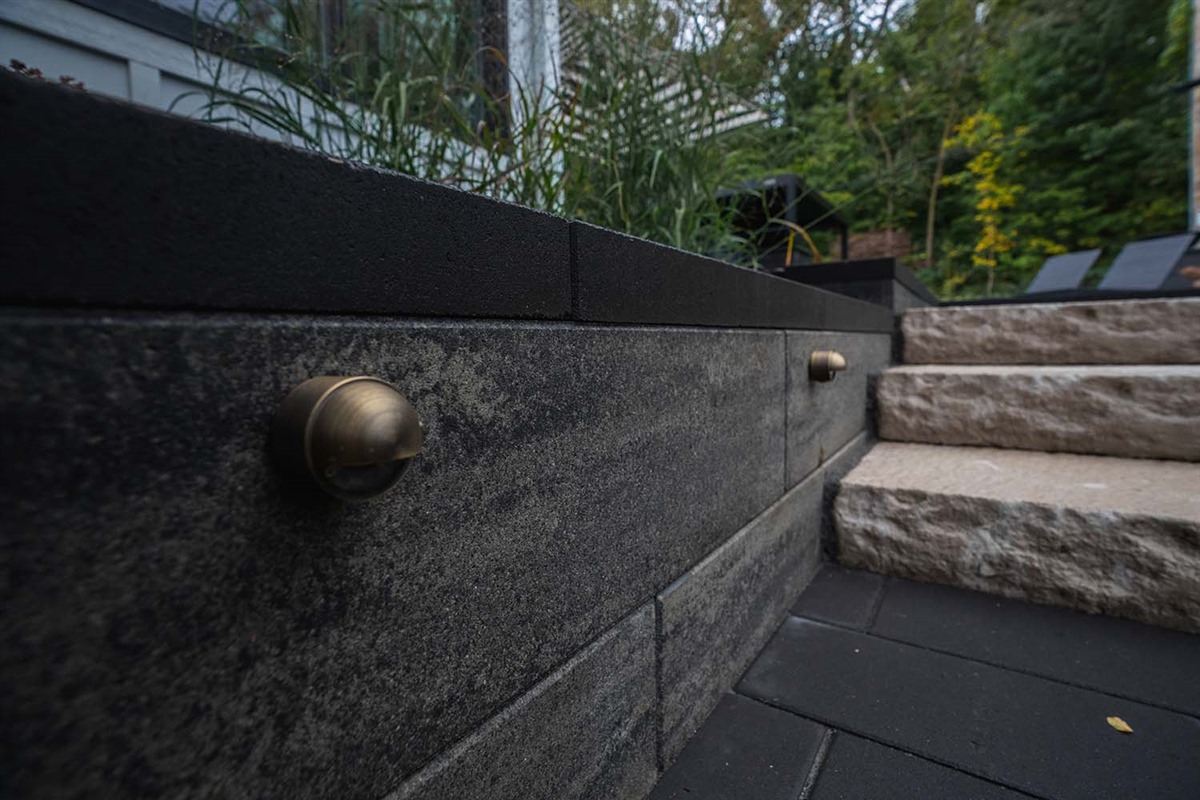

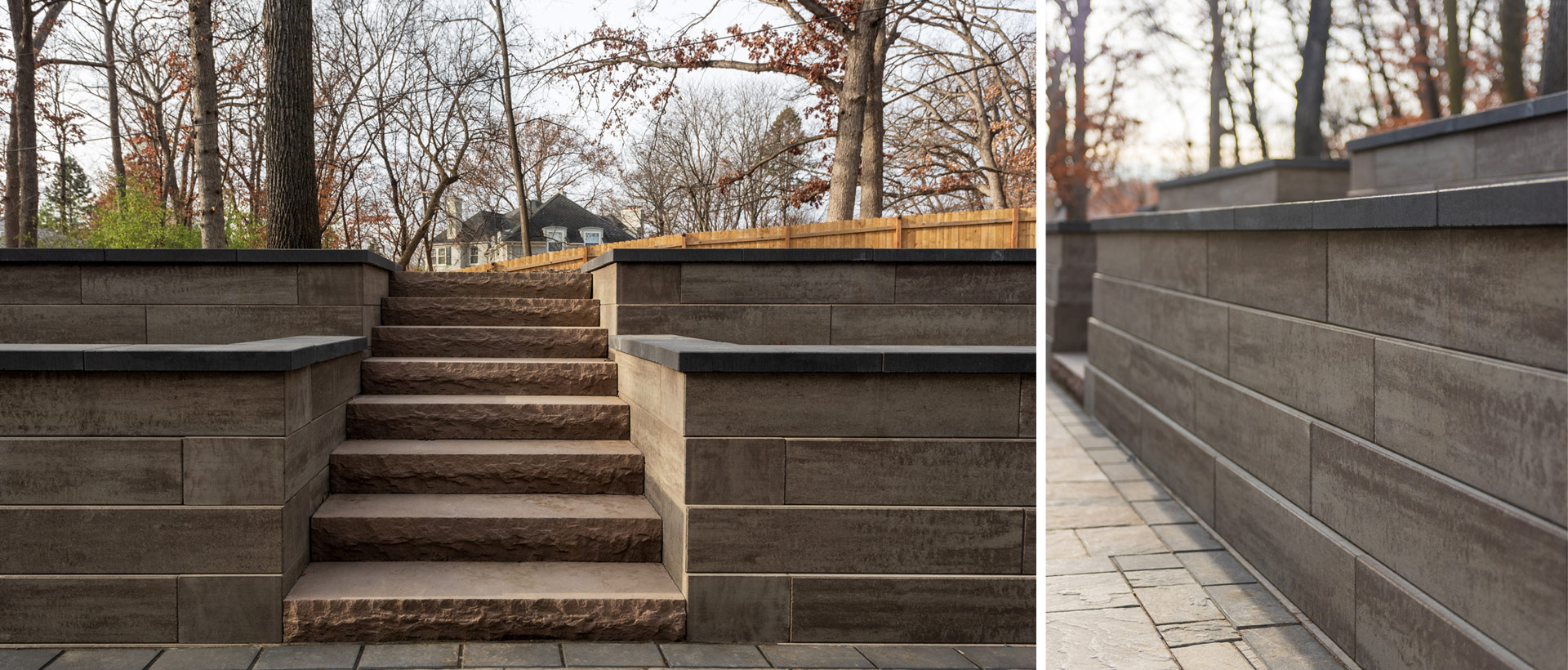

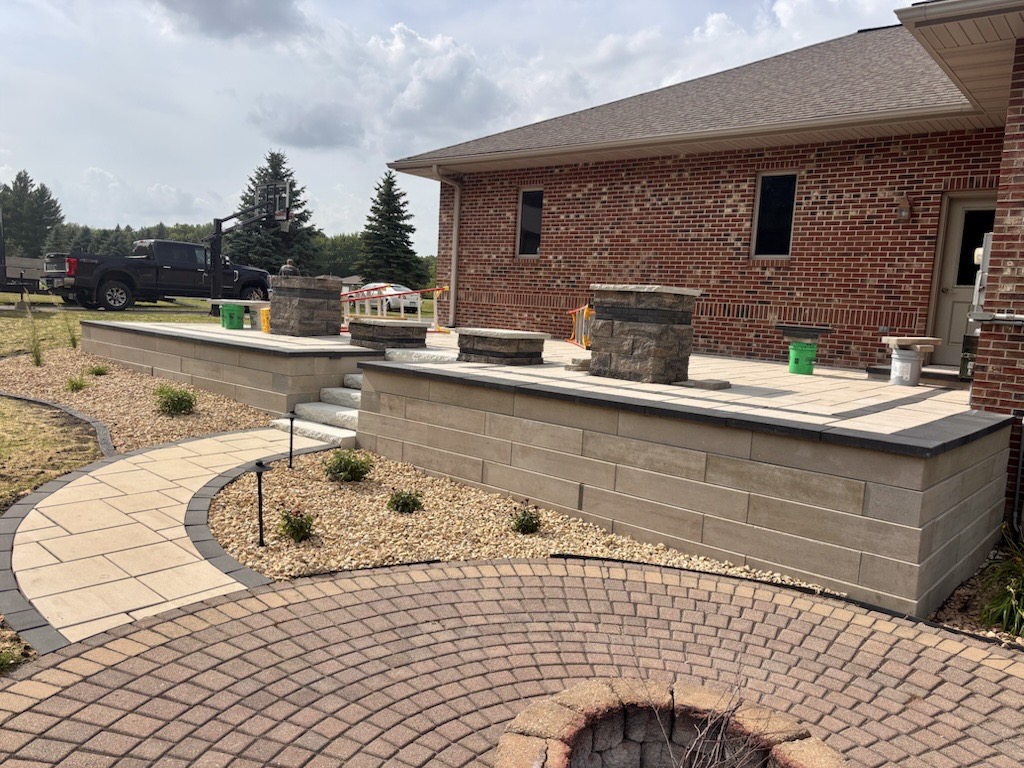

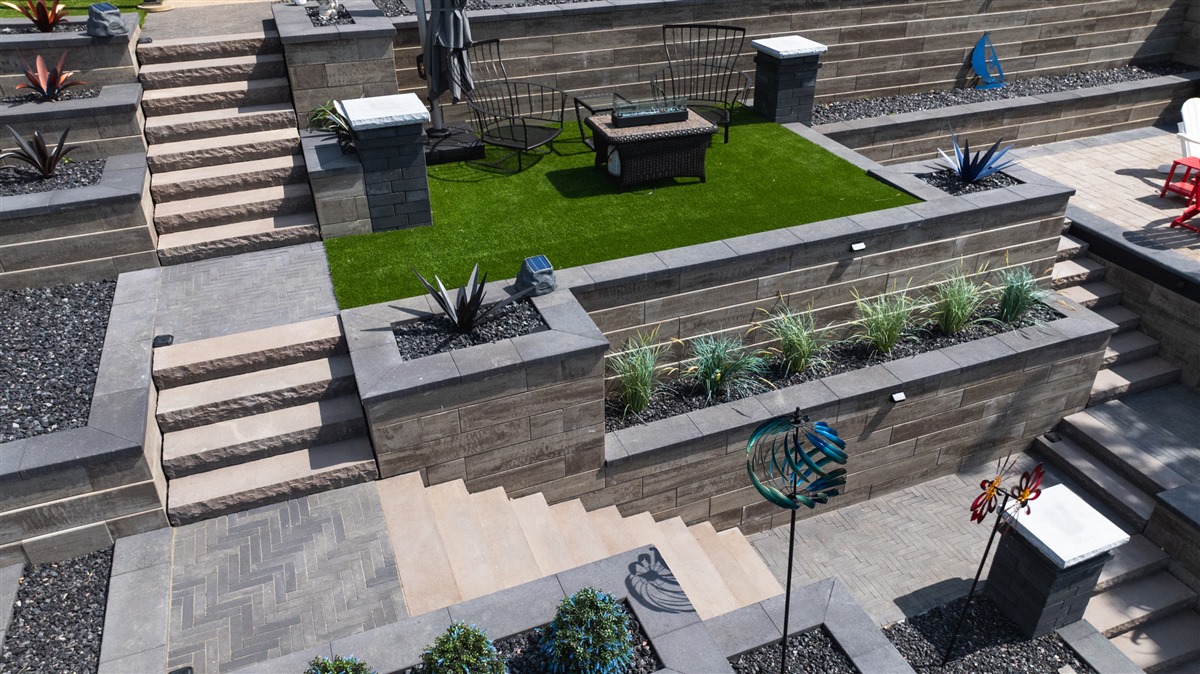

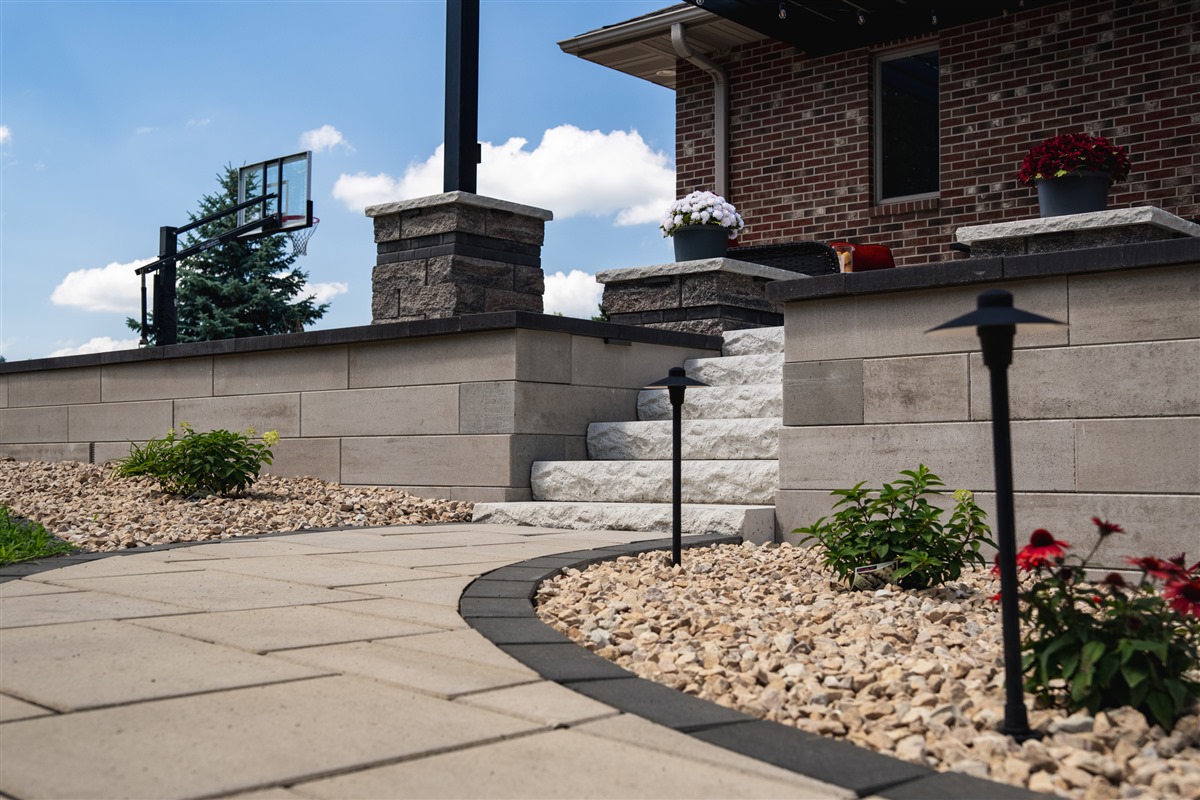

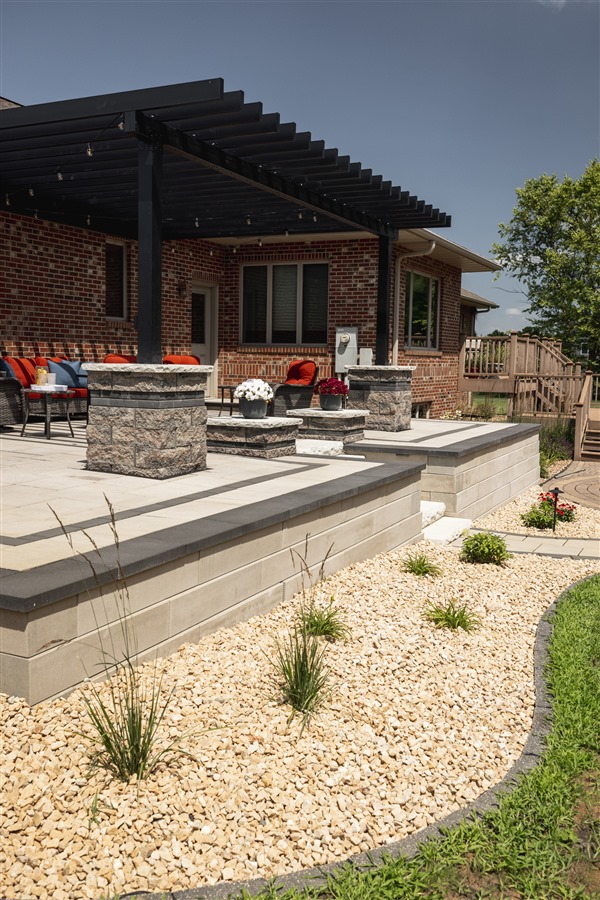

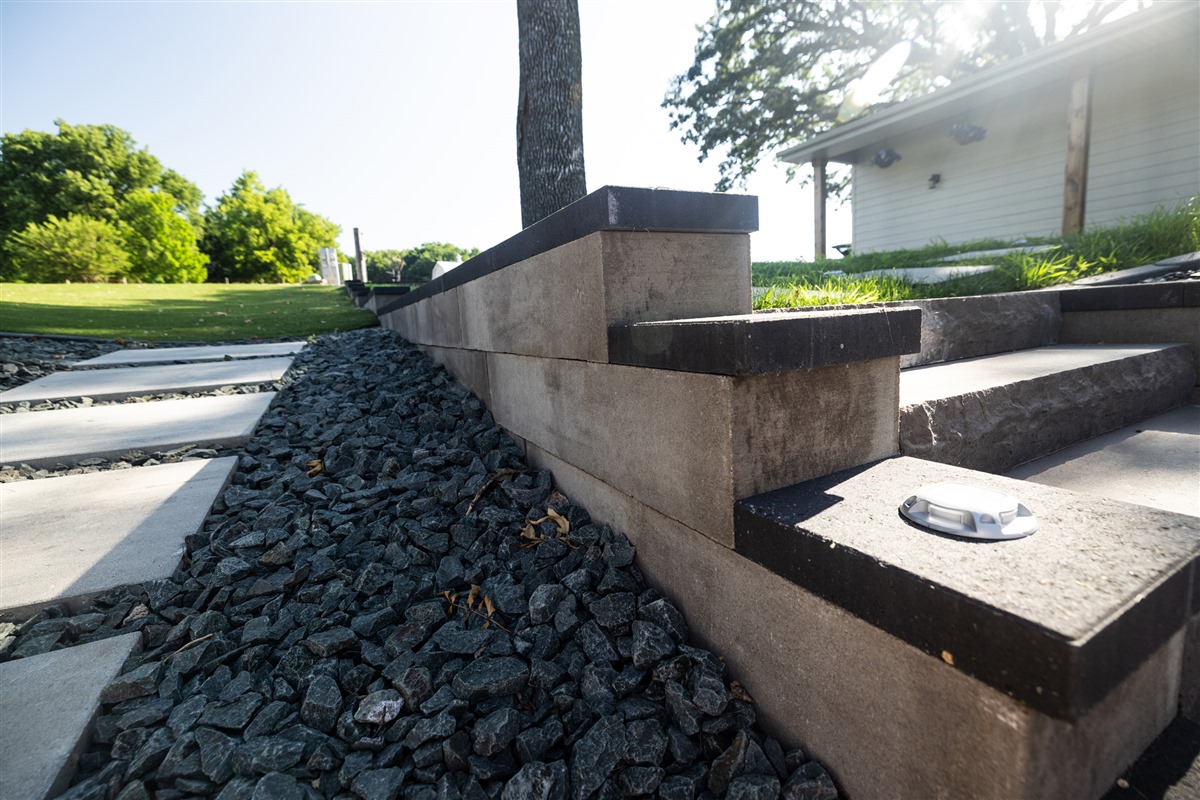

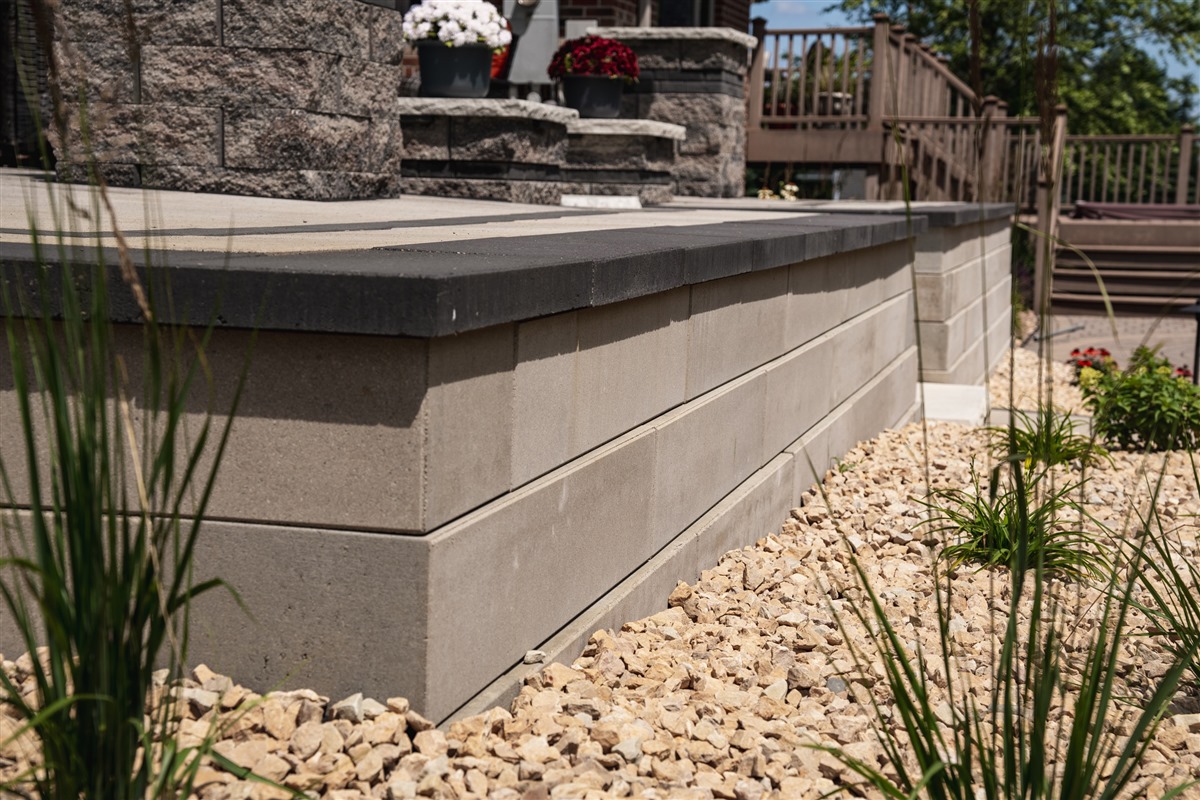

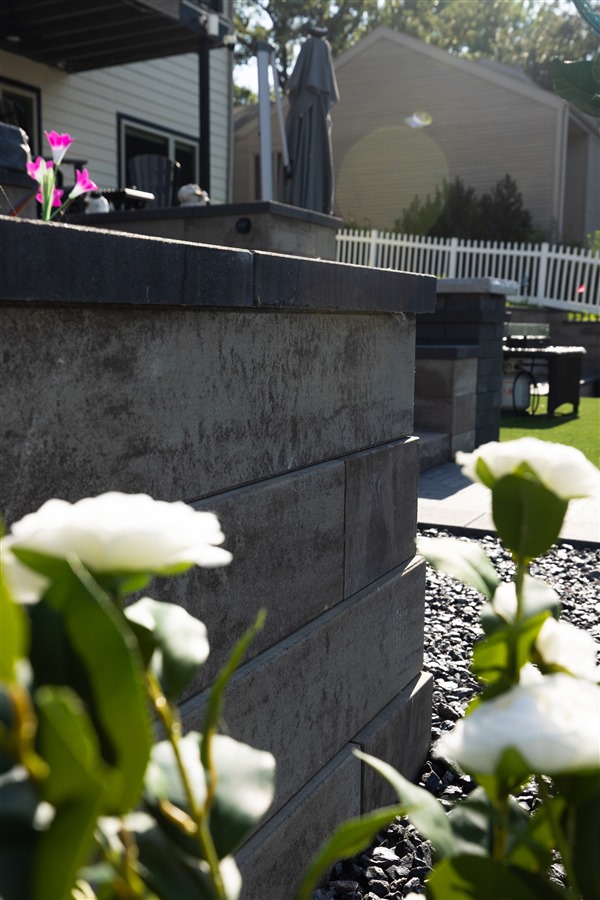

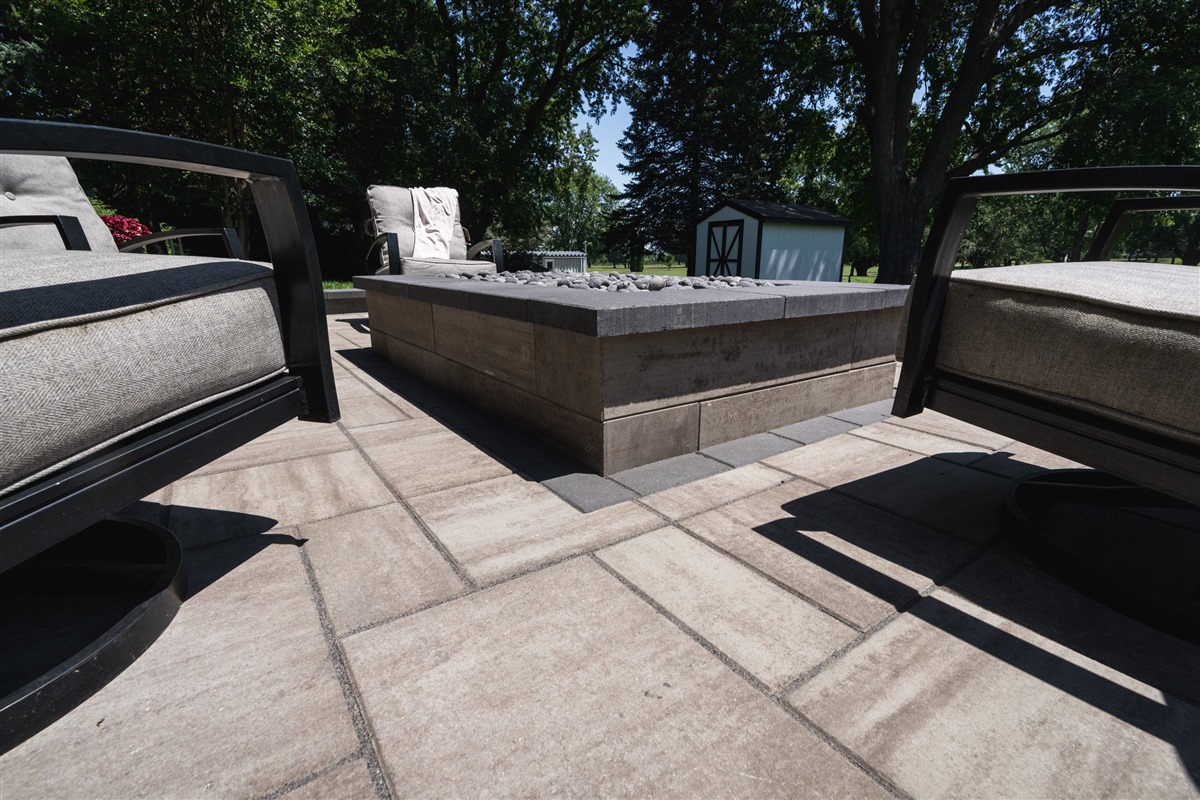

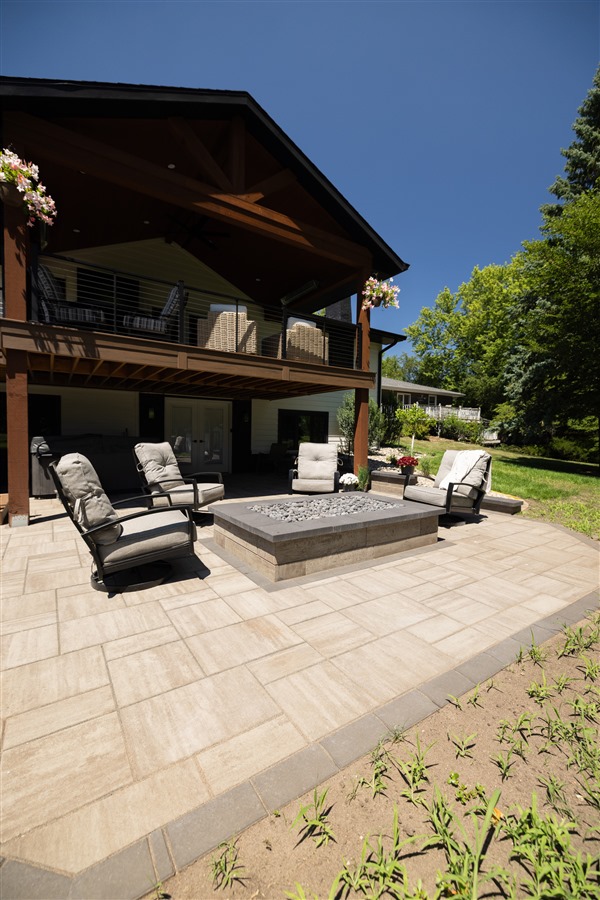

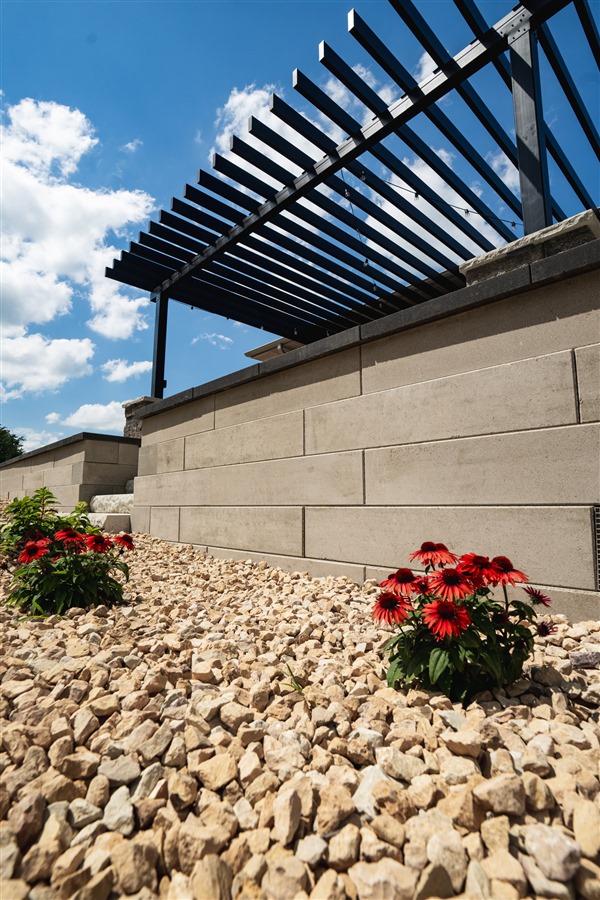

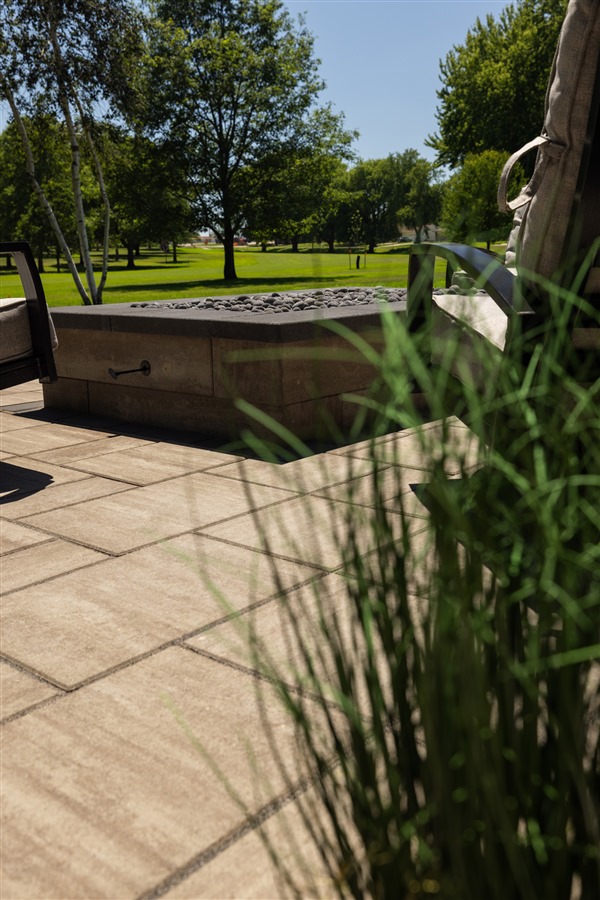

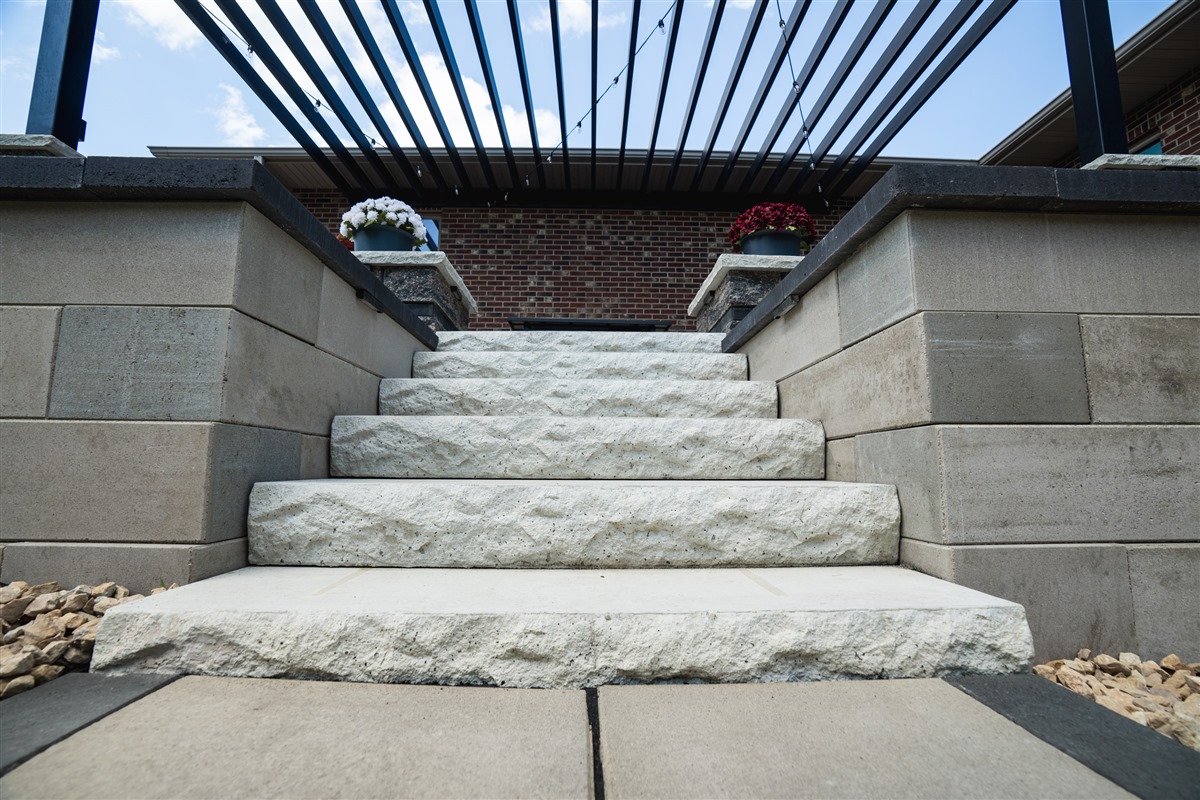

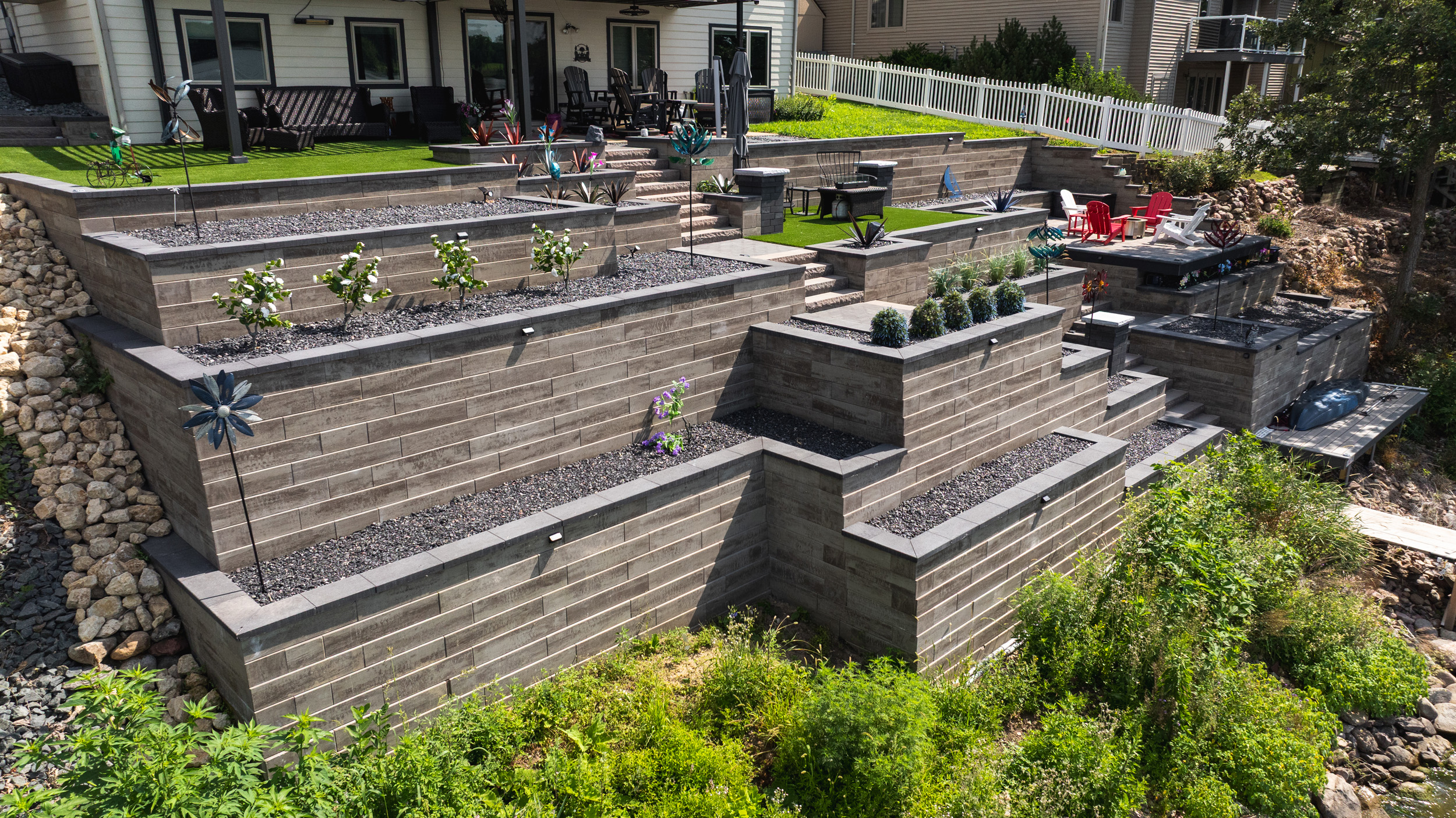

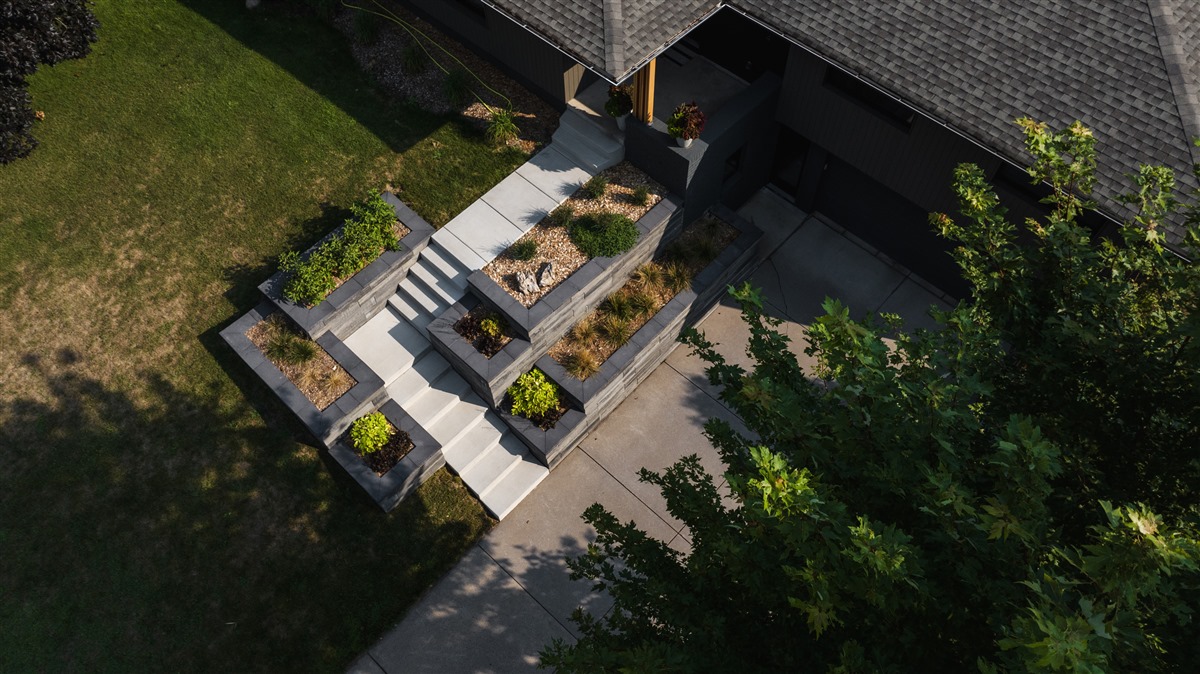

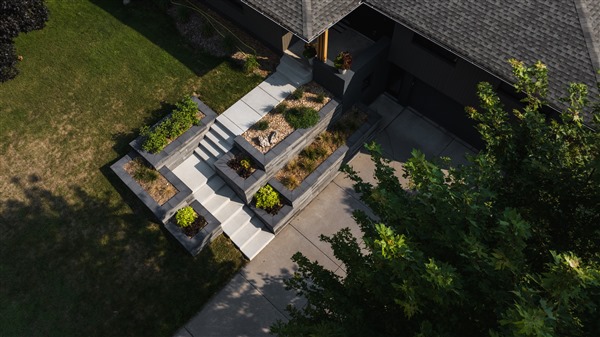

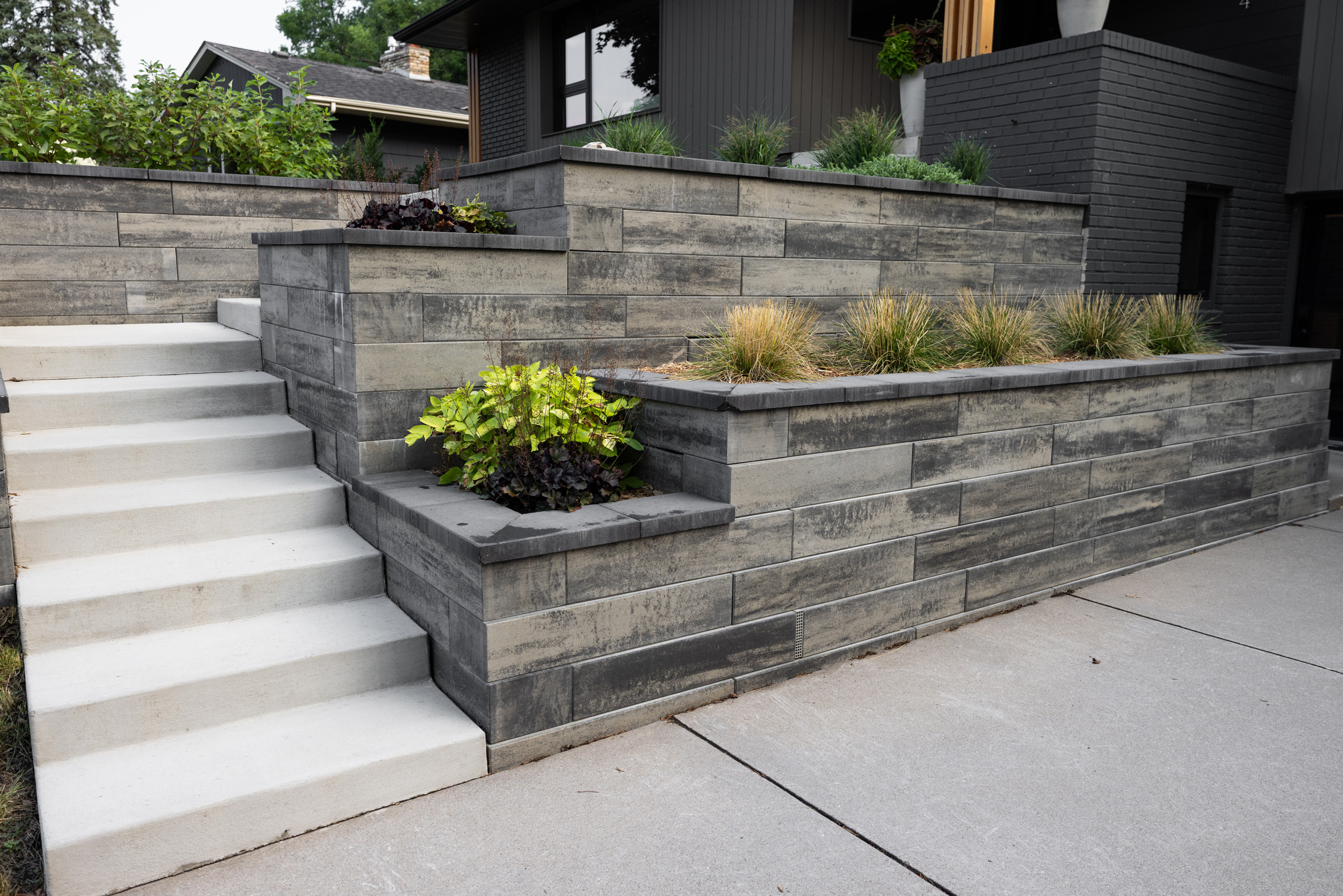

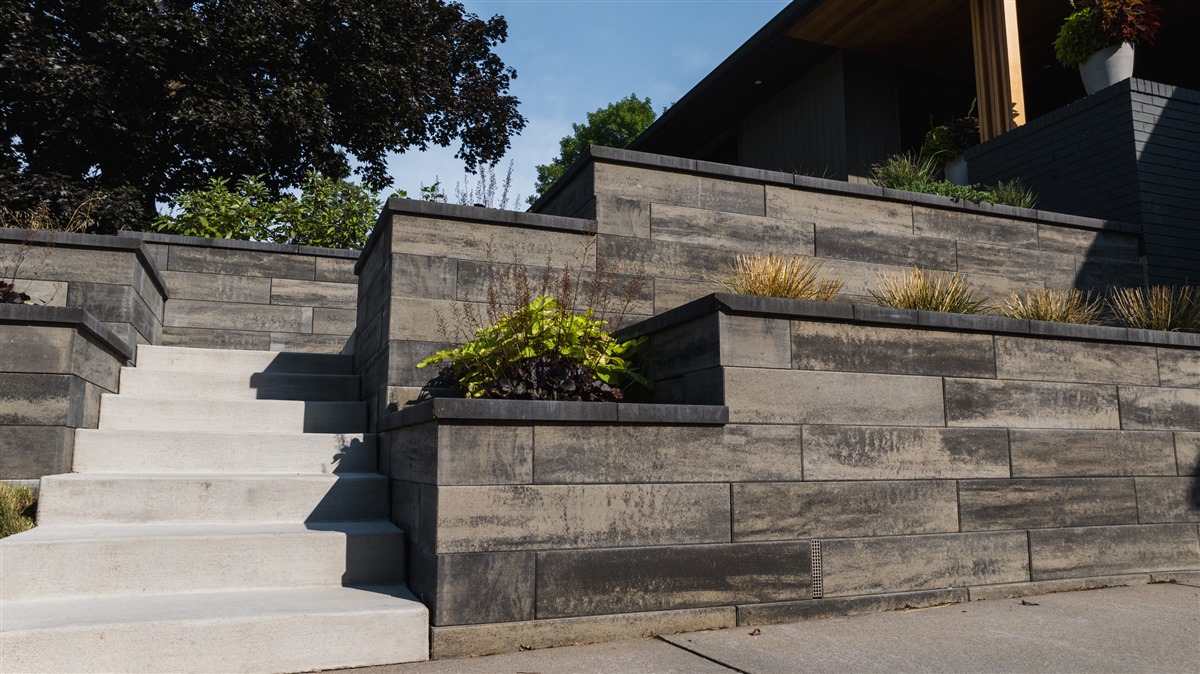

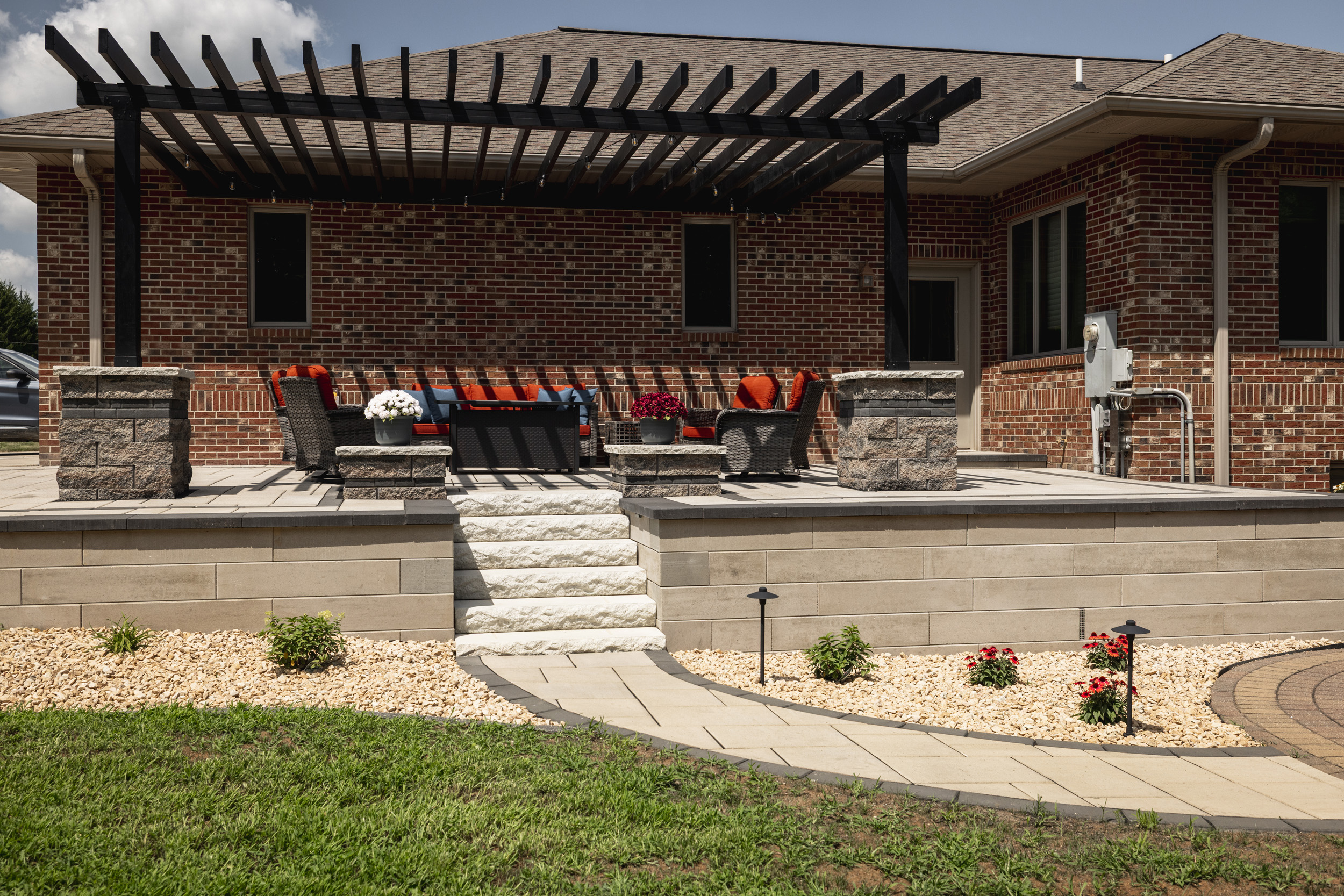

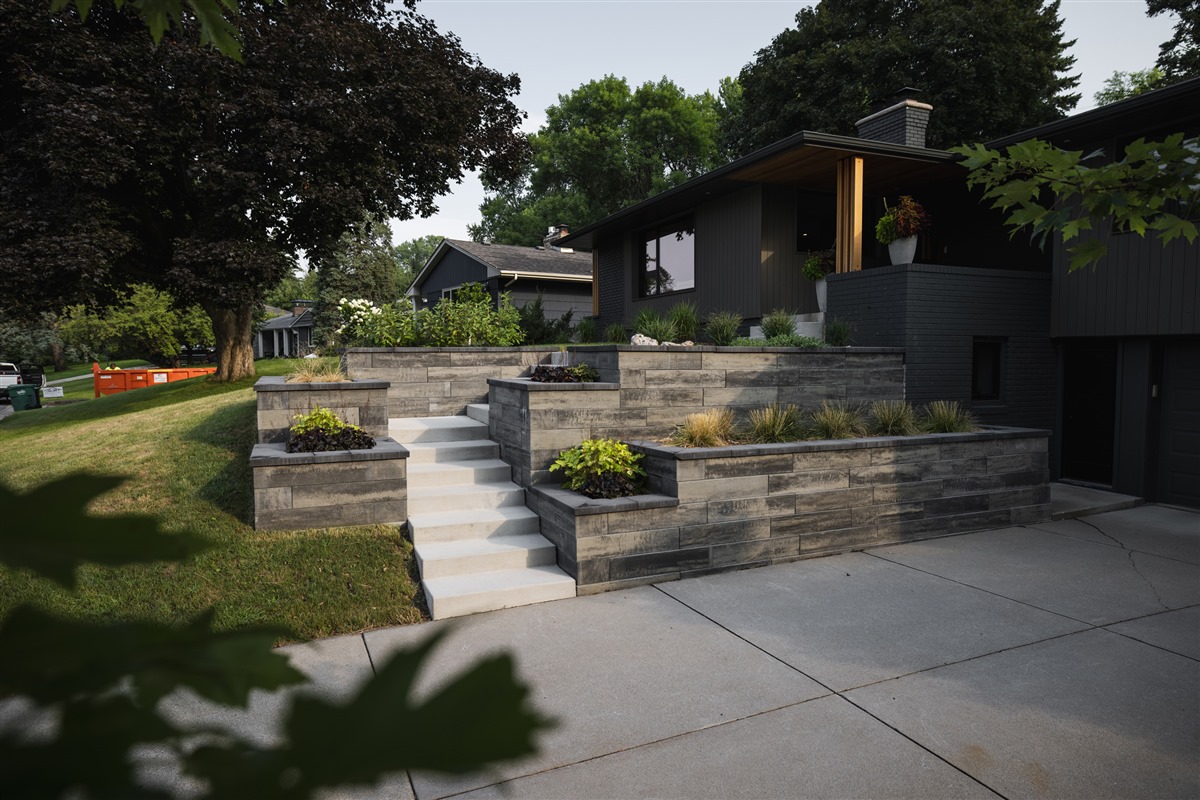

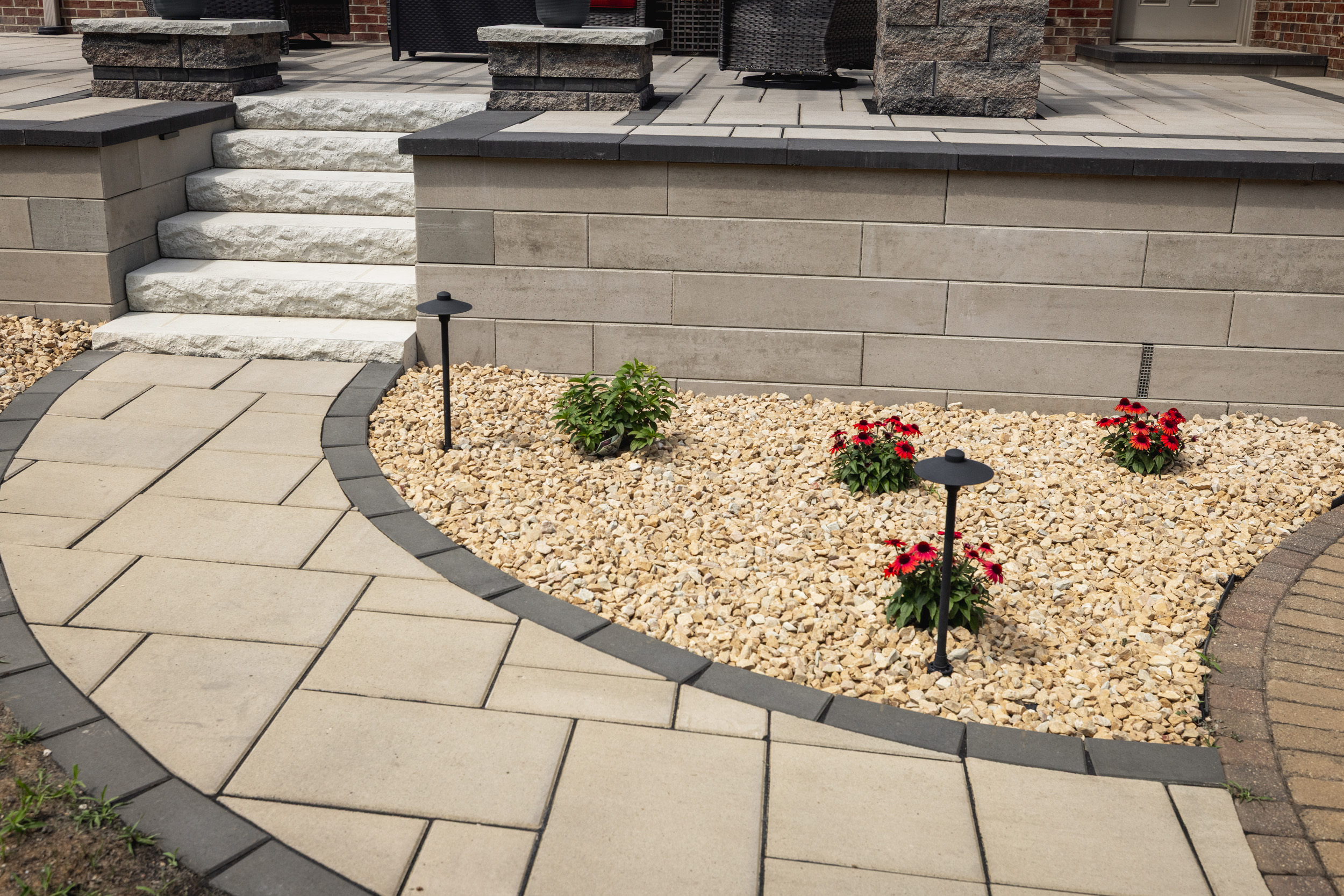

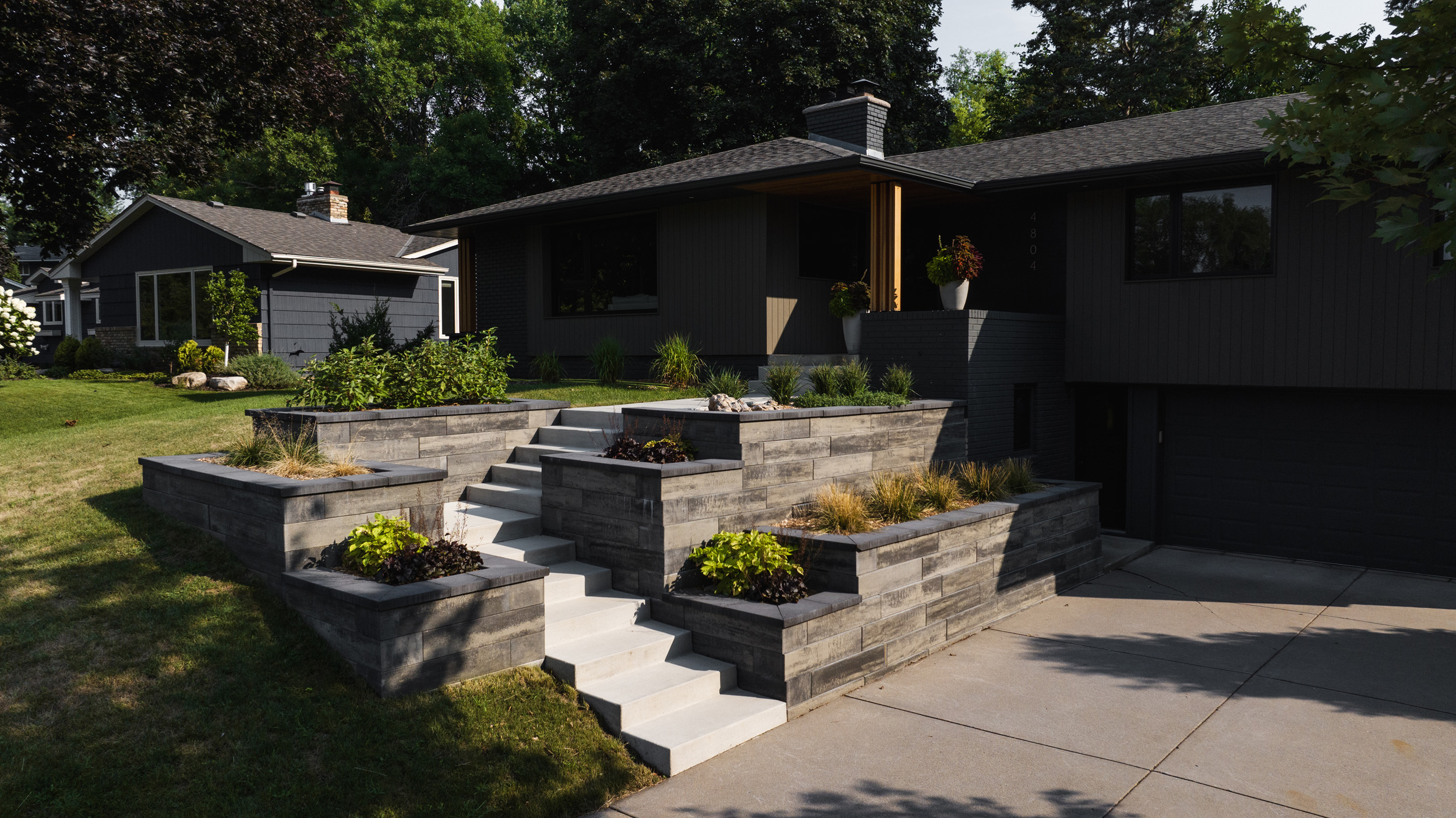

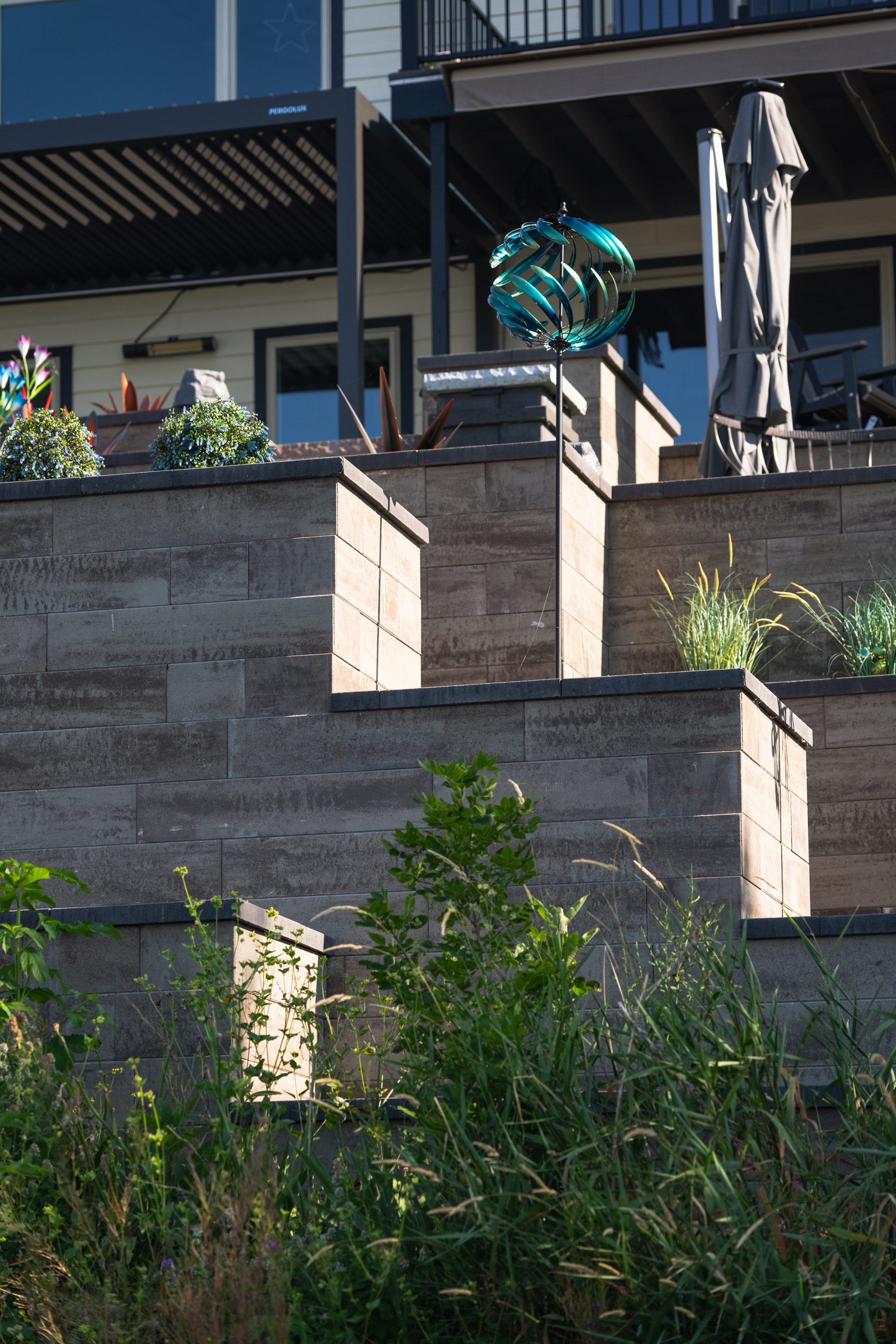

Gallery

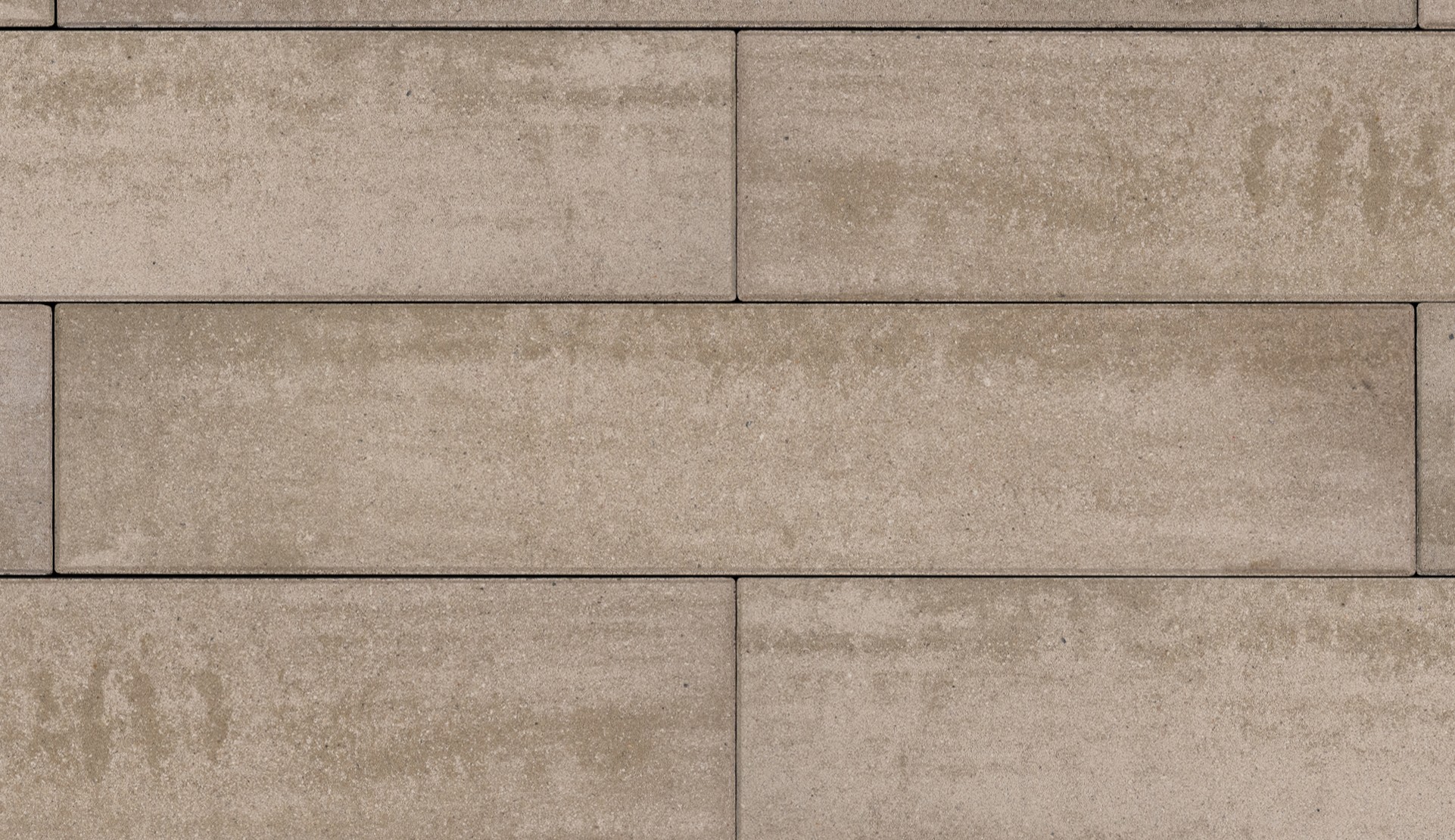

Colors
Cafe
Pick a Color

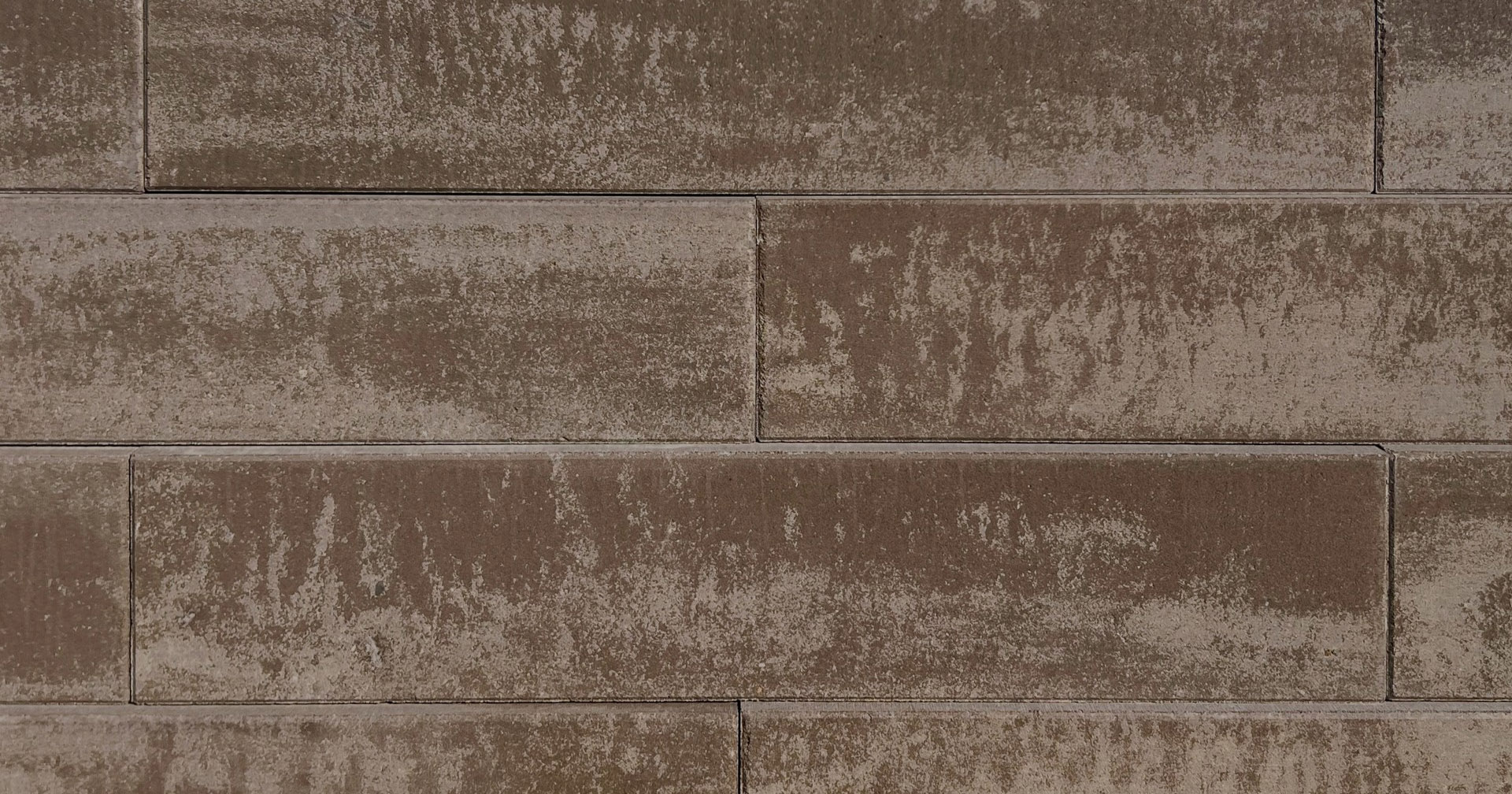

Cafe

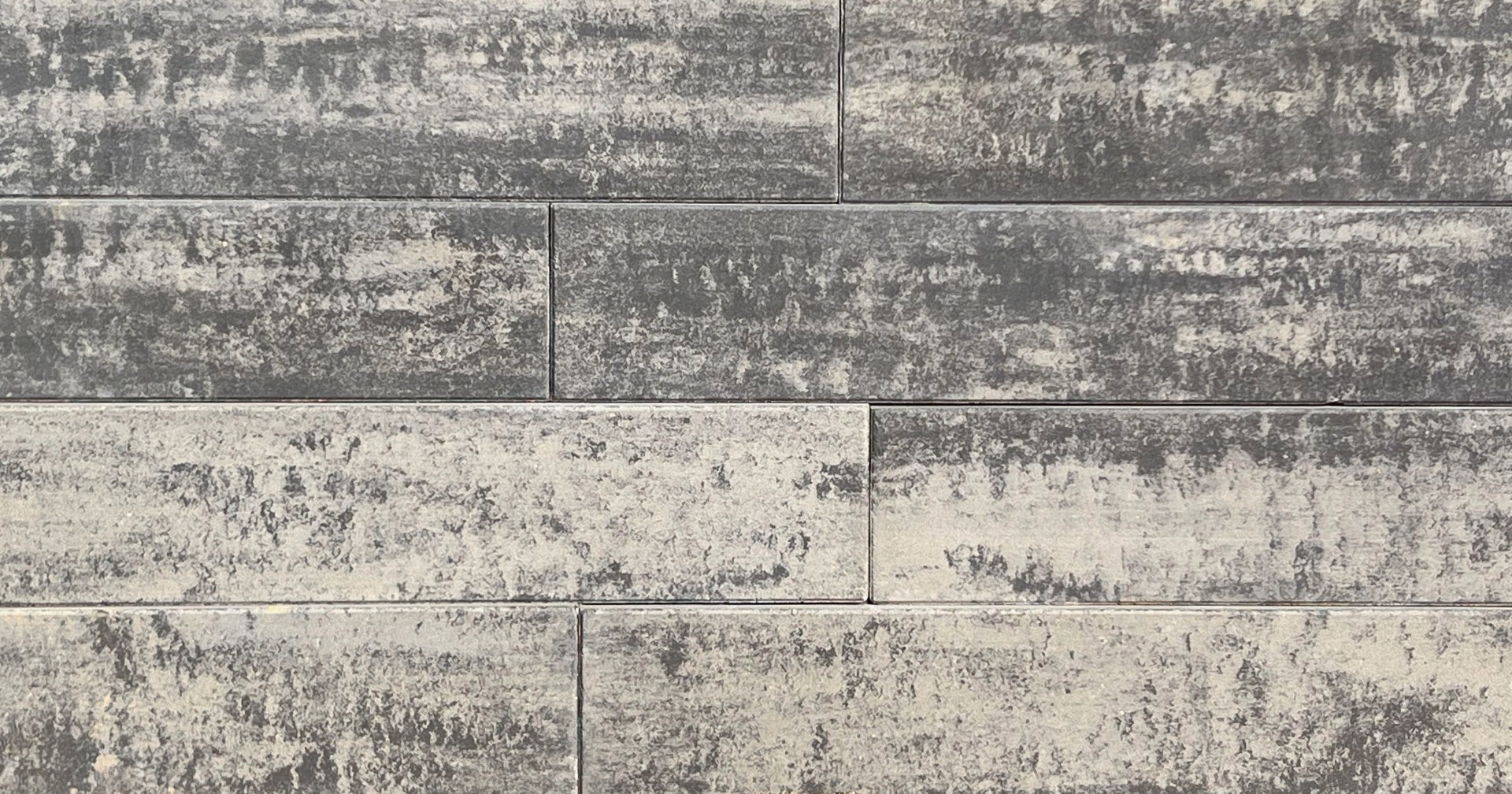

Cascade
Our Technology
Chroma Color
Experience the charm of vibrant and consistent color with our Chroma series. Implemented during the final production stages, the Chroma Coloring System imparts a saturated color layer on the surface of each unit, enhancing both aesthetic appeal and durability
Technical Resources
| Blocks | Dimensions | Face Area | Weight | Units/Layer | Layers | Units/Pallet | Pallet Weight |
|---|---|---|---|---|---|---|---|
| Standard | 40 x 12 x 8″ H | 2.22 sq. ft. | 330 lbs. | 4 | 2 | 8 (17.76 sq. ft.) | 2,714 lbs. |
| Corner/End | 40 x 12 x 8″ H | 2.22 sq. ft. | 330 lbs. | 4 | 2 | 8 (17.76 sq. ft.) | 2,714 lbs. |
| Contemporary Wall Cap | 24 x 12 x 2-3/8″ H | 2.0 ln. ft. | 50 lbs. | 6 | 8 | 48 (96 ln. ft.) | 2,450 lbs. |
| Base Block | 15 x 12 x 4″ H | 0.44 sq. ft | 47 lbs. | – | 56 (24.64 sq. ft.) | 2,828 lbs. |
Product Catalog
Product Guide
SRW Best Practices
Sleeve-It Brochure

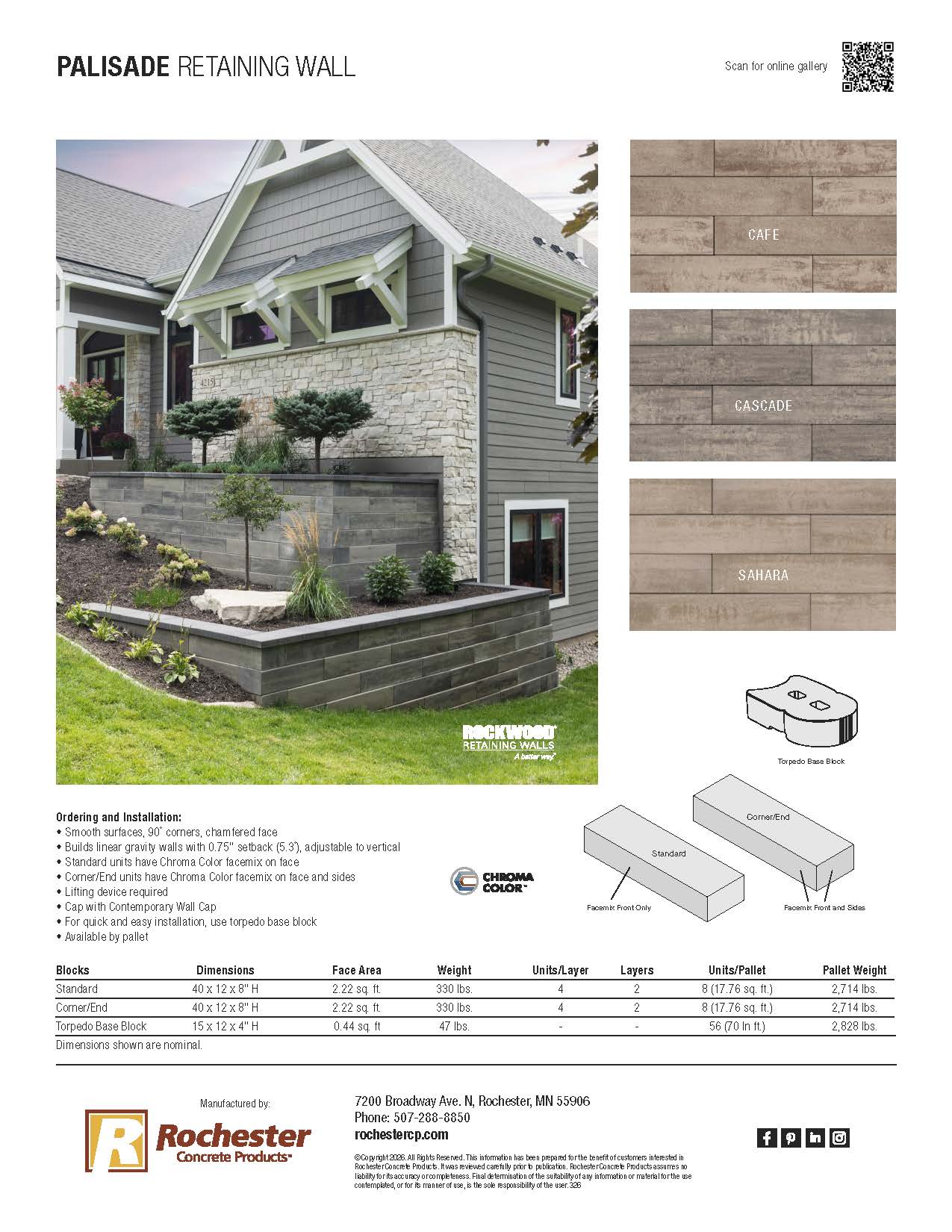

Palisade Cut Sheet
