Recon™ Wall

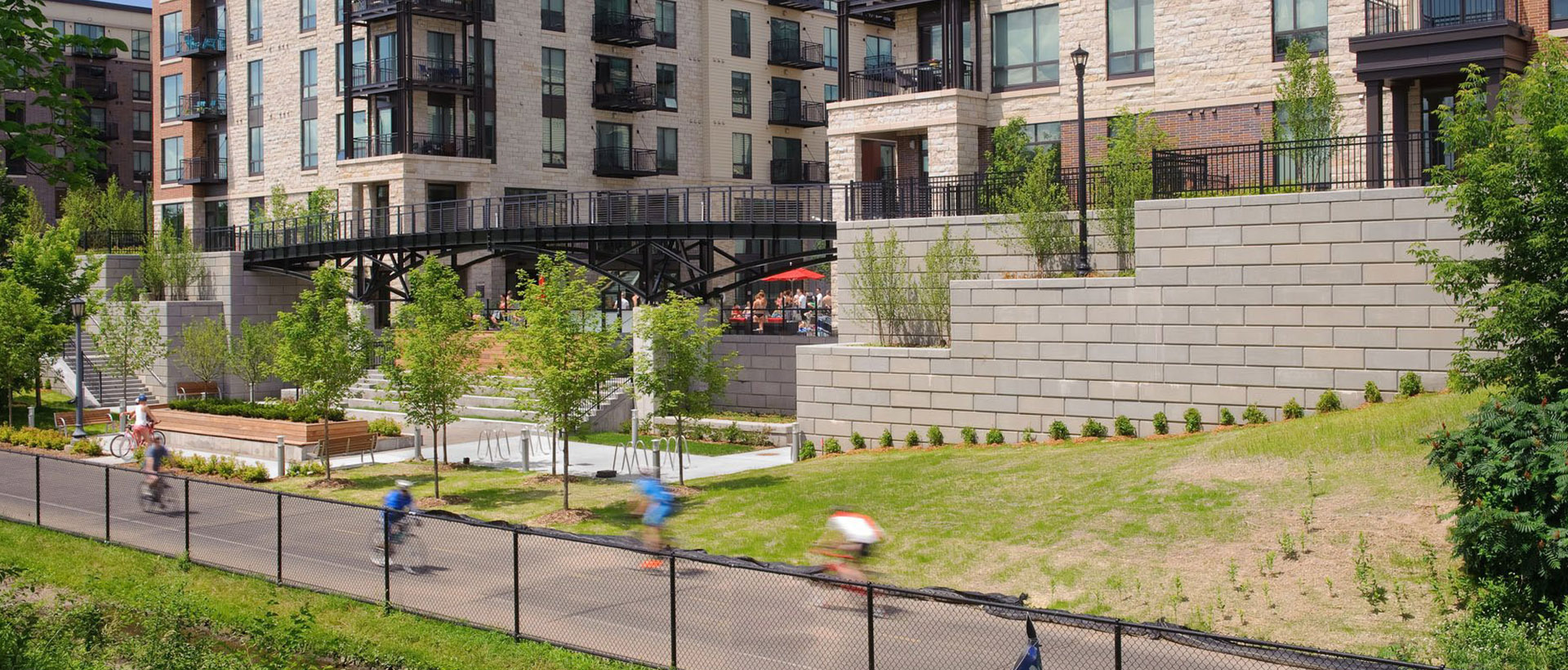

Recon is a prefabricated large block retaining wall system designed for commercial and residential projects with tight property lines or limited space.
Colors
Applications
- Retaining Wall
Find an Authorized Dealer in your area
Ordering and Installation
- Strong, wet cast blocks; 1,457 to 4,088 lbs. ea.

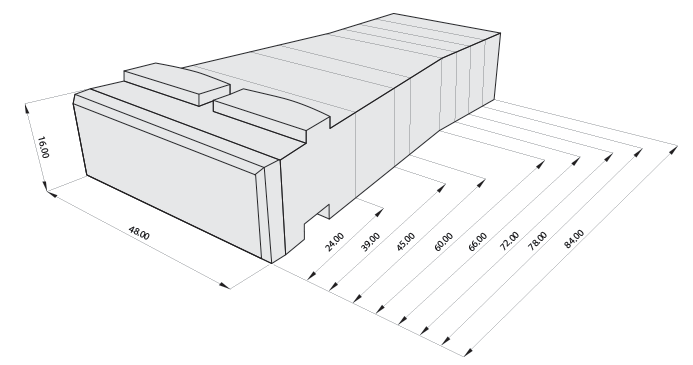

- 24″ to 84″ D x 48″ W x 16″ H
- Regular corner and cap blocks
- Half block (24″ or 39″ deep)
- Full fence or full high end/cap blocks
- DOT approved in Minnesota and Wisconsin
- Order by size/face style, by piece
- Dimensions shown are nominal
Colors

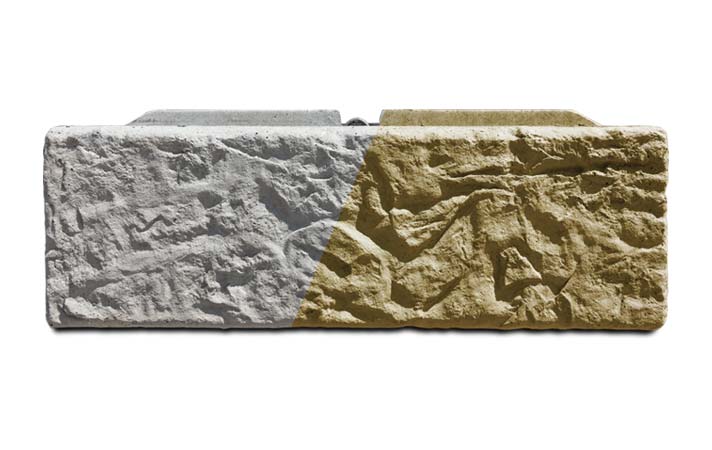

Le Sueur County Limestone
Pick a Color
Le Sueur County Limestone

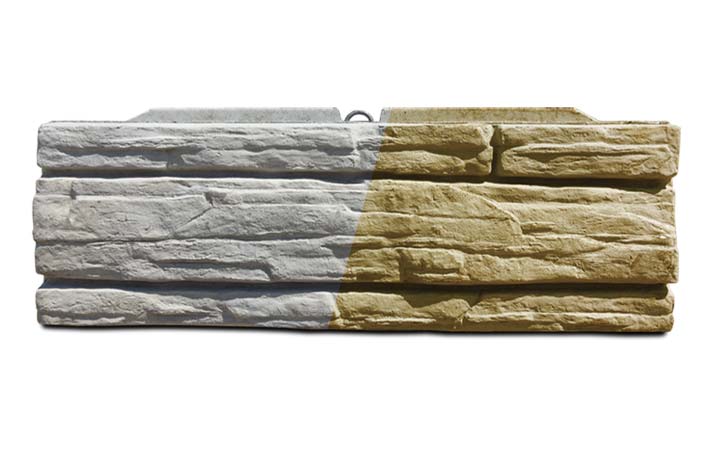

Weathered Edge
Technical Resources
| Size/Name | Dimensions | Area/Unit | Weight |
|---|---|---|---|
| Full Base Block – 24″ | 48 x 24 x 16″ H | 5.33 sq. ft. | 1,457 lbs. |
| Full Base Block – 39″ | 48 x 39 x 16″ H | 5.33 sq. ft. | 2,201 lbs. |
| Full Base Block – 45″ | 48 x 45 x 16″ H | 5.33 sq. ft. | 2,491 lbs. |
| Full Base Block – 60″ | 48 x 60 x 16″ H | 5.33 sq. ft. | 3,115 lbs. |
| Full Base Block – 66″ | 48 x 66 x 16″ H | 5.33 sq. ft. | 3,416 lbs. |
| Full Base Block – 72″ | 48 x 72 x 16″ H | 5.33 sq. ft. | 3,660 lbs. |
| Full Base Block – 78″ | 48 x 78 x 16″ H | 5.33 sq. ft. | 3,902 lbs. |
| Full Base Block – 84″ | 48 x 84 x 16″ H | 5.33 sq. ft. | 4,088 lbs. |
| Full Top Block – 24″ | 48 x 24 x 16″ H | 5.33 sq. ft. | 971 lbs. |
| Regular Corner | 48 x 24 x 16″ H | 5.33 sq. ft. | 1,401 lbs. |
| Corner Top | 48 x 24 x 16″ H | 5.33 sq. ft. | 1,103 lbs. |
| Half Block 24″ | 48 x 24 x 16″ H | 5.33 sq. ft. | 667 lbs. |
| Half Block 36″ | 48 x 36 x 16″ H | 5.33 sq. ft. | 973 lbs. |
| Capstone | 48 x 26 x 6.5″ H | 2.16 sq. ft. | 551 lbs. |
| Fence Middle Block | 16 x 48 x 24 H” | 2.66 sq. ft. | 1,449 lbs. |
| Fence Middle End Block | 16 x 48 x 24 H” | 2.66 sq. ft. | 1,476 lbs. |
| Half Fence Middle End Block | 16 x 24 x 24 H” | 2.66 sq. ft. | 709 lbs. |
| Guardrail Middle Block | 16 x 48 x 24 H” | 2.66 sq. ft. | 1,373 lbs. |
Available by pallet.
Product Catalog
Product Guide
SRW Best Practices
Sleeve-It Brochure
ReCon Design and Construction Manual

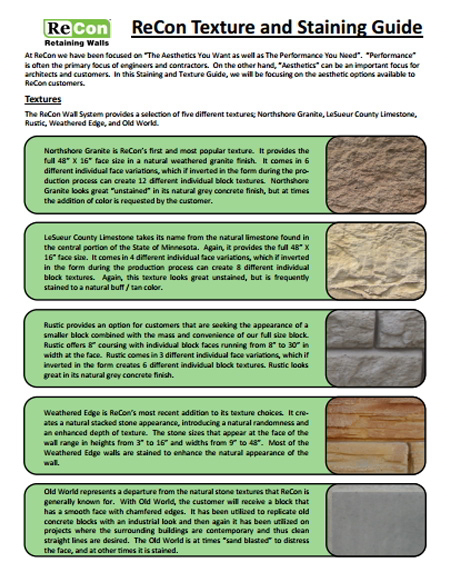

ReCon Staining and Texture Guide
