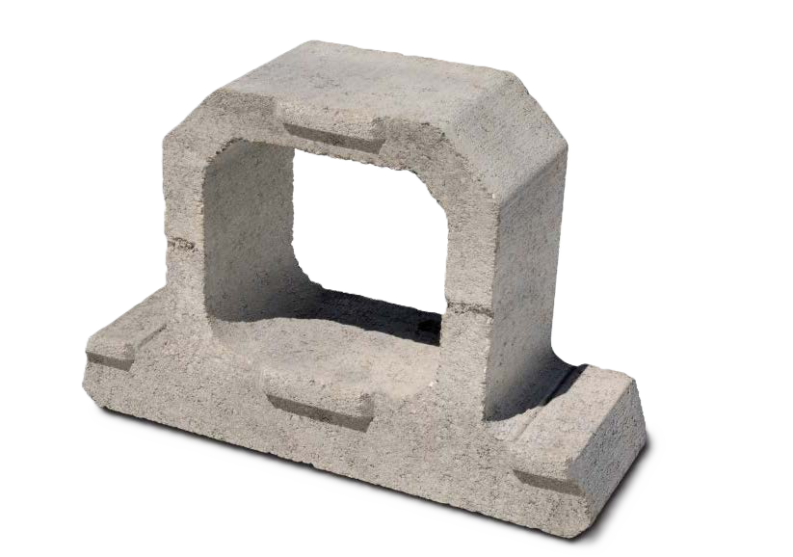

Premier 8™ Pro Wall
Premier 8 Pro offers a unique and patented, lightweight 1 sq. ft. block design and, when combined with new Tri-Lock™ Technology, redefines the standard for installation efficiency and wall performance.
Premier’s 54 lb. unit weight reduces installer fatigue while delivering industry-leading strength, superior freight efficiencies, faster installation, and easier construction than traditional block systems.
Colors
Applications
- Retaining Wall
Find an Authorized Dealer in your area
Ordering and Installation
- Easy-to-handle for increased efficiencies in the field
- Straight-thru core design; cores fill quickly & easily — void/fill coefficients: 0.018CY (.028 tons)
- Straight-split face, 1.0″ (7°) setback
- Ability to construct tight radius turns
- Cap with 4″ Universal or Chiseled Cap
- Available by layer or pallet
- Corners are split on one long and one short side, Rochester and Beaver Dam only
- Dimensions shown are nominal

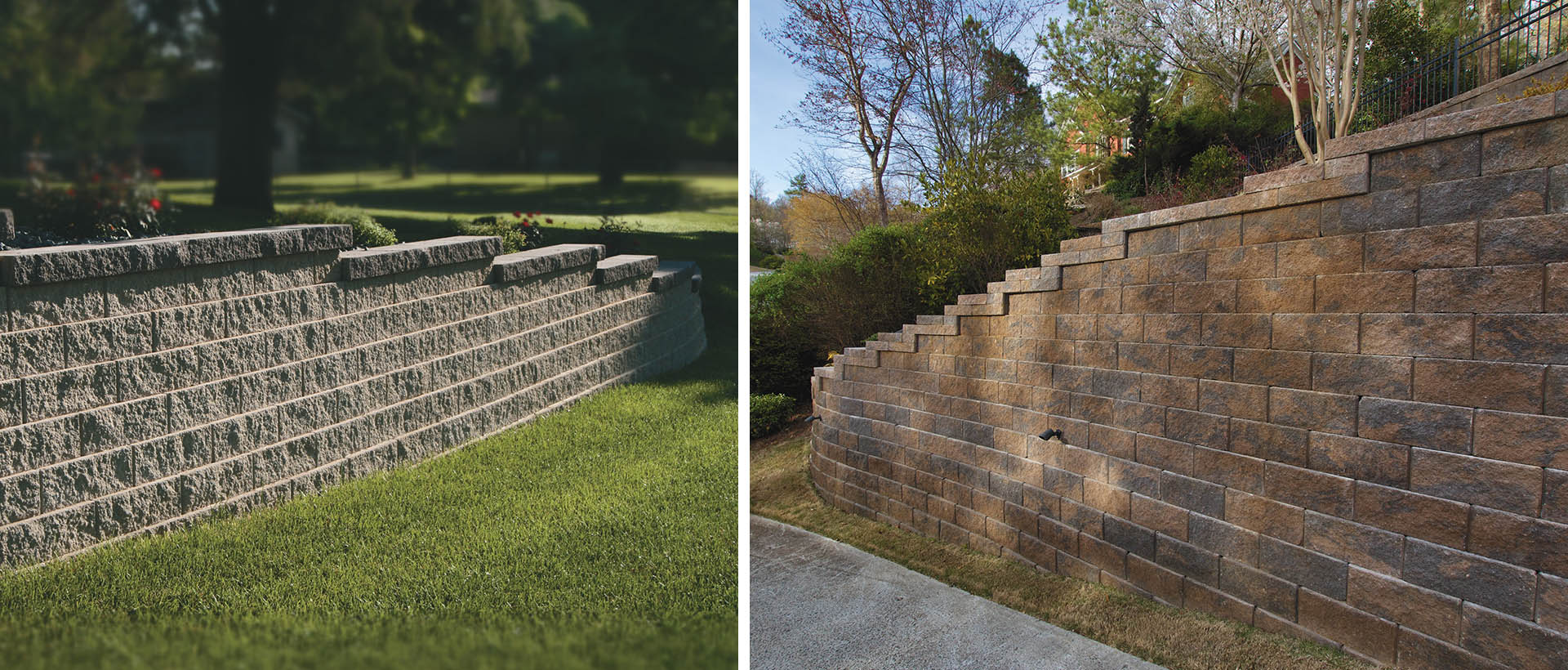

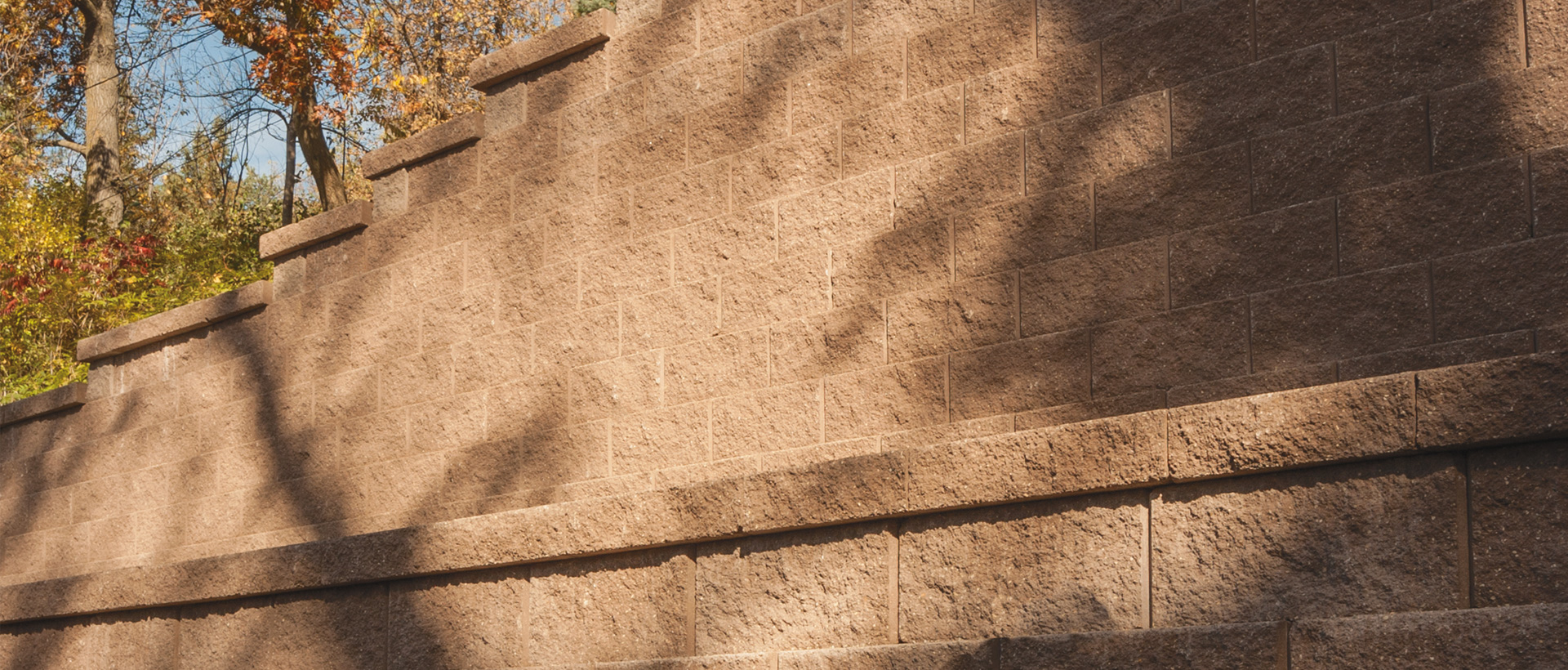

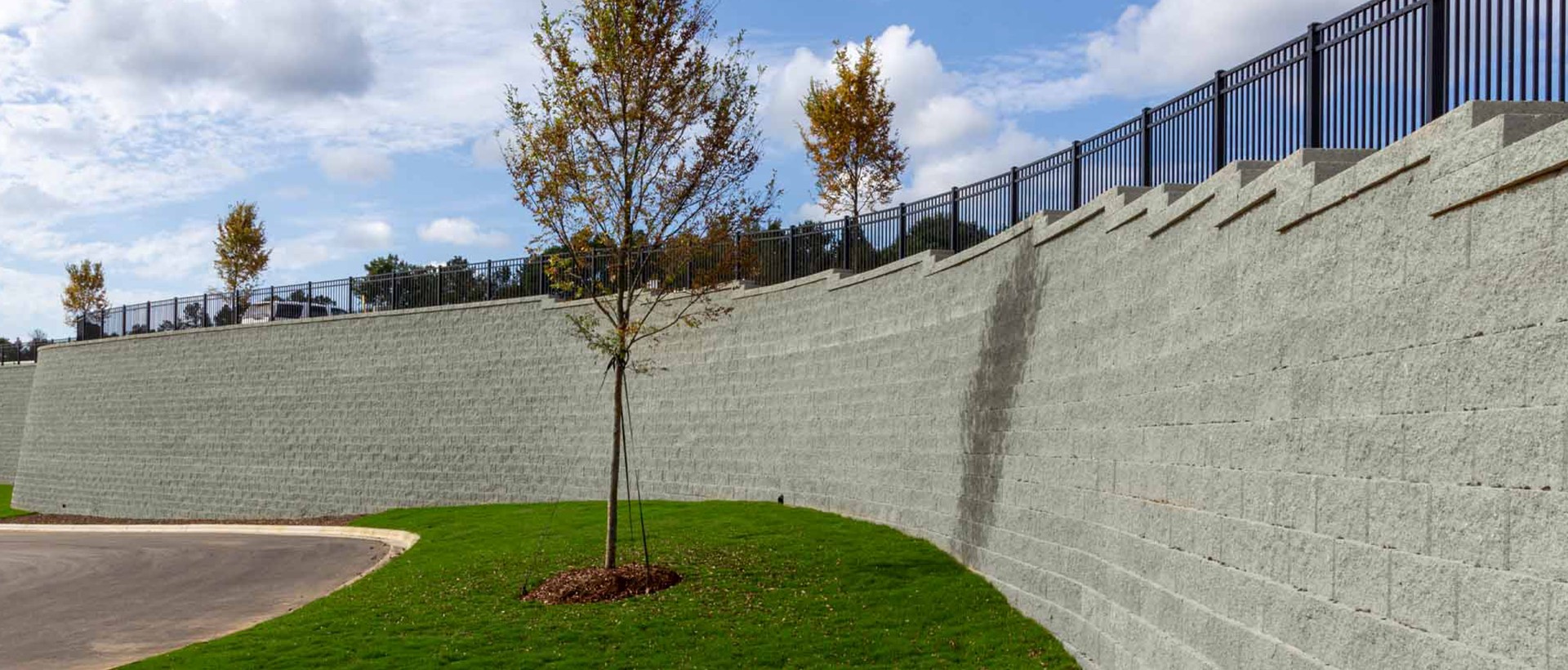

Gallery
Colors

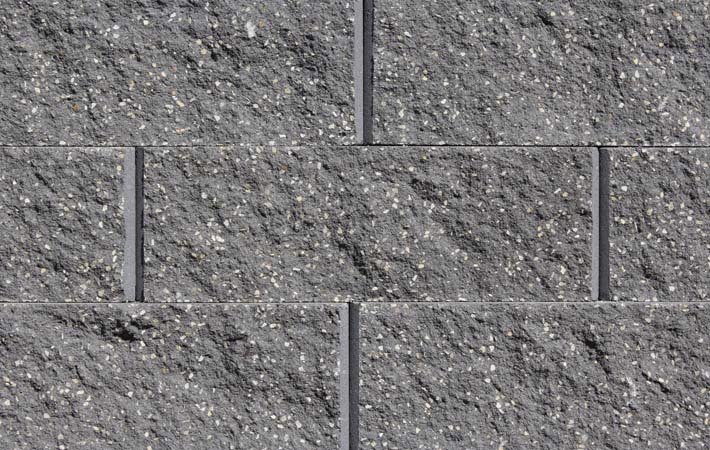

Charcoal
Pick a Color
Charcoal

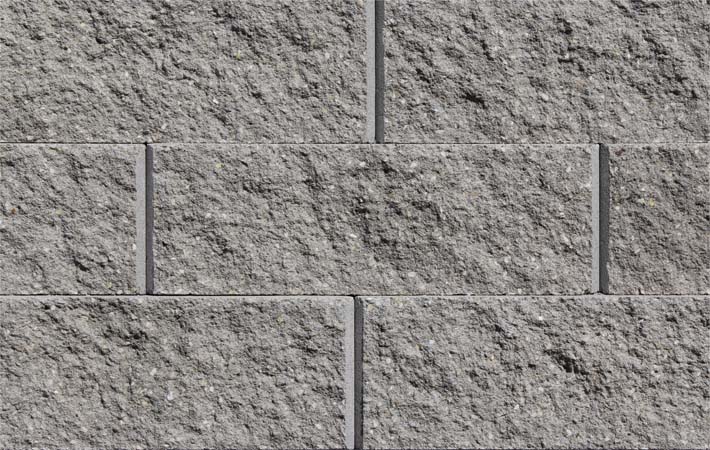

Gray

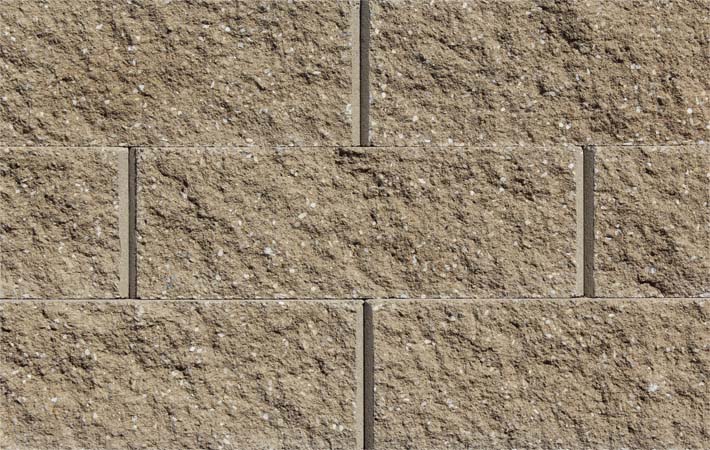

Sandstone

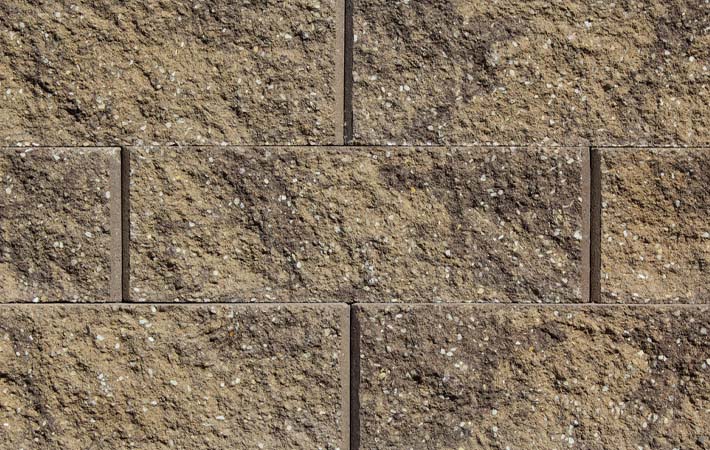

Sandstone Brown
Our Technology
Shear Resistance
Retaining wall units are engineered with open cores in the center of the block that are filled with drainage aggregate during installation. This design forms continuous stone columns the entire height of the wall, significantly increasing block to block shear resistance and enhancing the wall’s stability during and after construction.
Max Core Technology
Engineered with Max Core ™ Technology, this retaining wall block delivers unmatched strength and performance while weighing nearly half as much as traditional segmental retaining wall units. Its advanced design meets and exceeds industry standards. Max Core ™ Technology makes blocks easier to handle without compromising structural integrity – a smarter, more efficient solution on the jobsite.

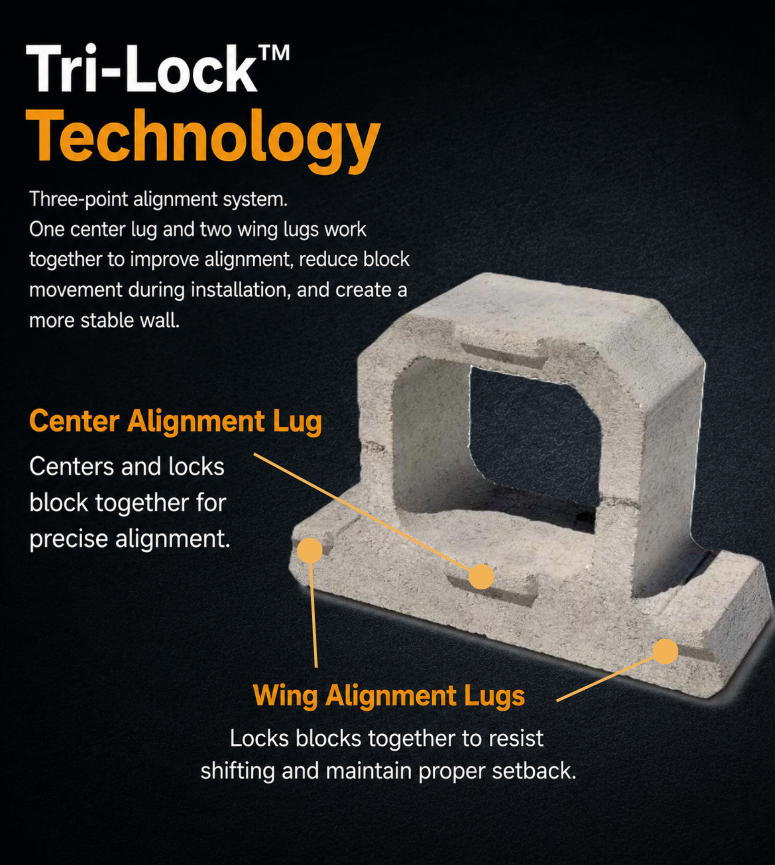

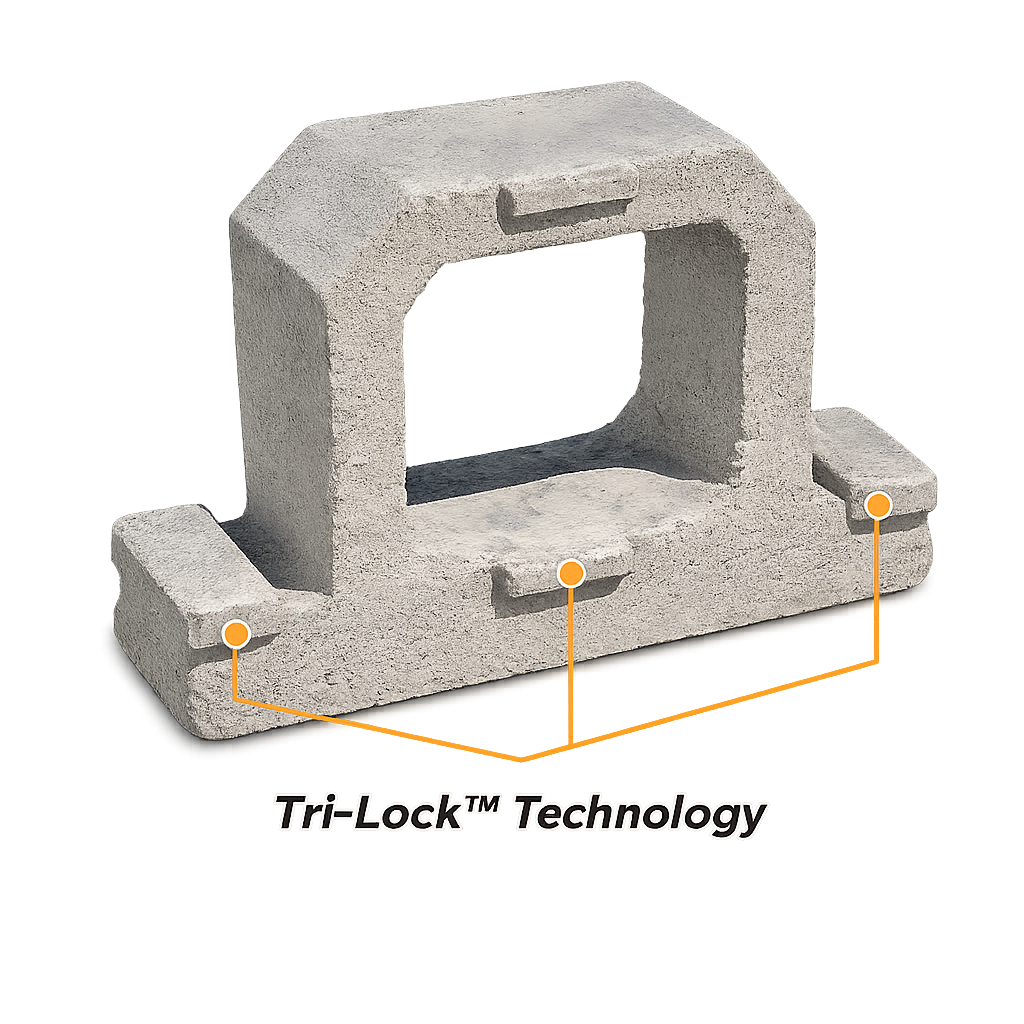

Tri-Lock™ Technology
Tri-Lock™ Technology is Premier's three-point alignment system that securely locks retaining wall units together during installation. By incorporating alignment lugs at the center and both wings of each block, Tri-Lock™ significantly reduces unit twisting and shifting, resulting in faster installation, improved alignment, and a more stable wall throughout construction.
Technical Resources
| Blocks | Dimensions | Face Area | Weight | Units/Layer | Layers | Units/Pallet | Pallet Weight |
|---|---|---|---|---|---|---|---|
| Premier 8 Pro (Rochester) | 18 x 12 x 8″ H | 1 sq. ft. | 57 lbs. | 9 | 4 | 36 (36 sq. ft.) | 2,102 lbs. |
| Premier 8 Pro (Beaver Dam) | 18 x 12 x 8″ H | 1 sq. ft. | 57 lbs. | 9 | 5 | 45 (45 sq. ft.) | 2,615 lbs. |
| *Solid Corner | 18 x 9 x 8″ H | 1 sq. ft. | 100 lbs. | 5 | 4 | 20 (20 sq. ft.) | 2,050 lbs. |
*Corners are split on one long and one short side, Rochester and Beaver Dam only. Dimensions shown are nominal.
Product Catalog
Product Guide
SRW Best Practices
Sleeve-It Brochure

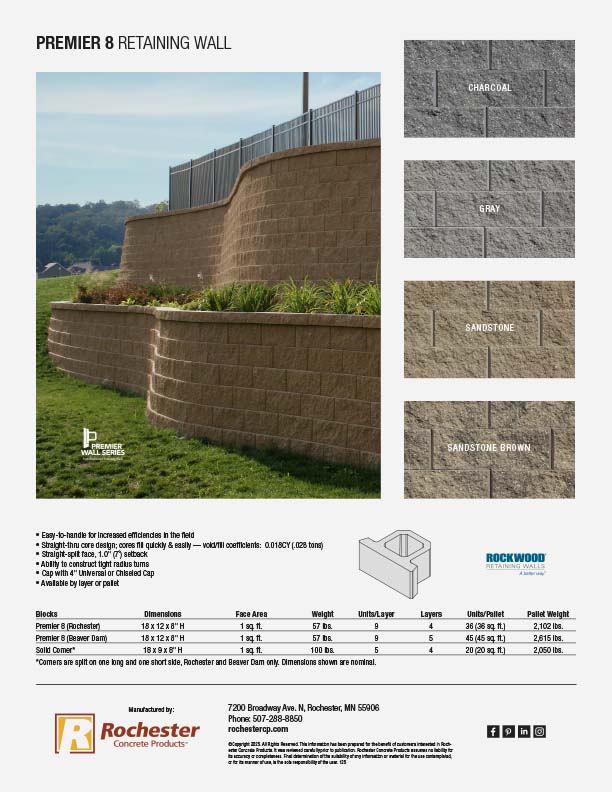

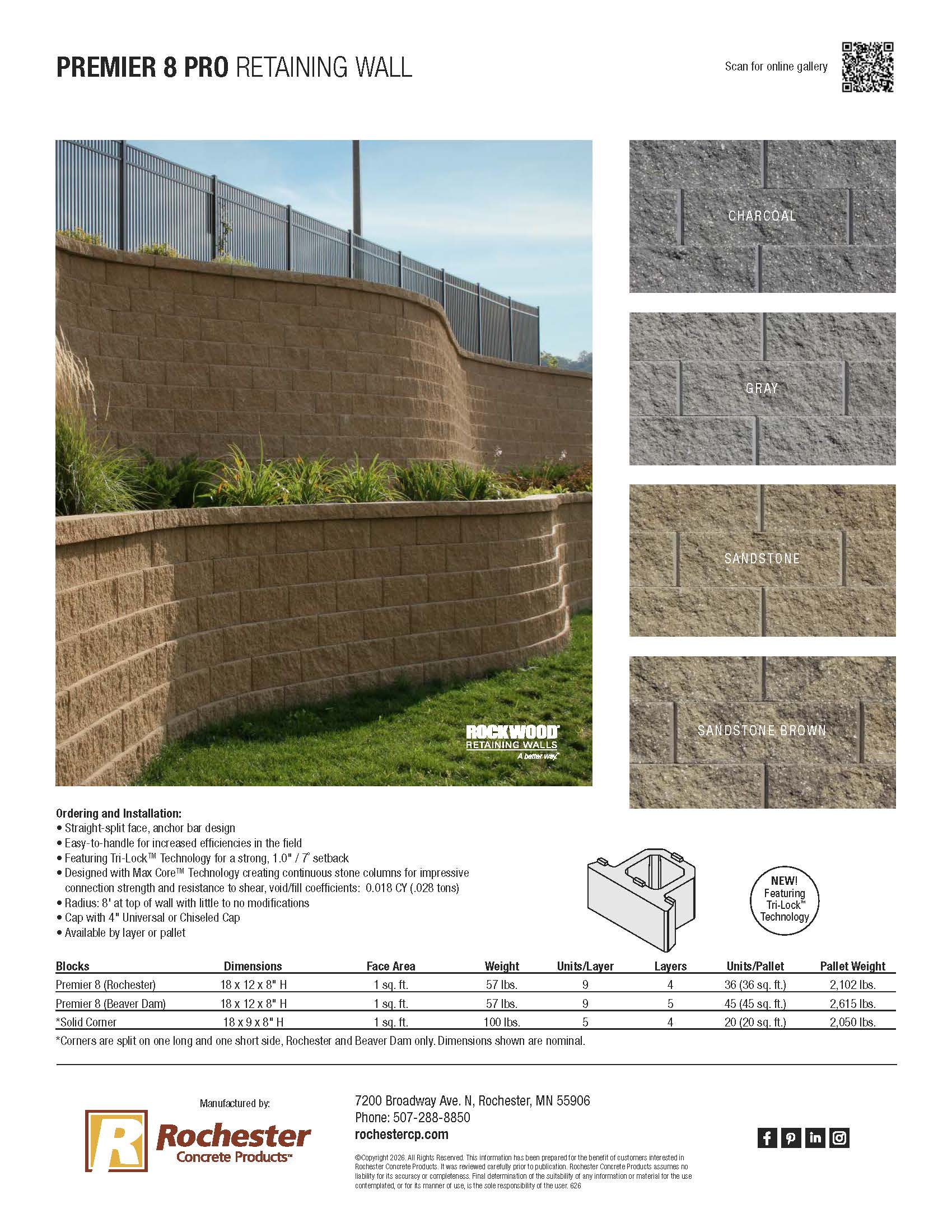

Premier 8 Pro Cut Sheet

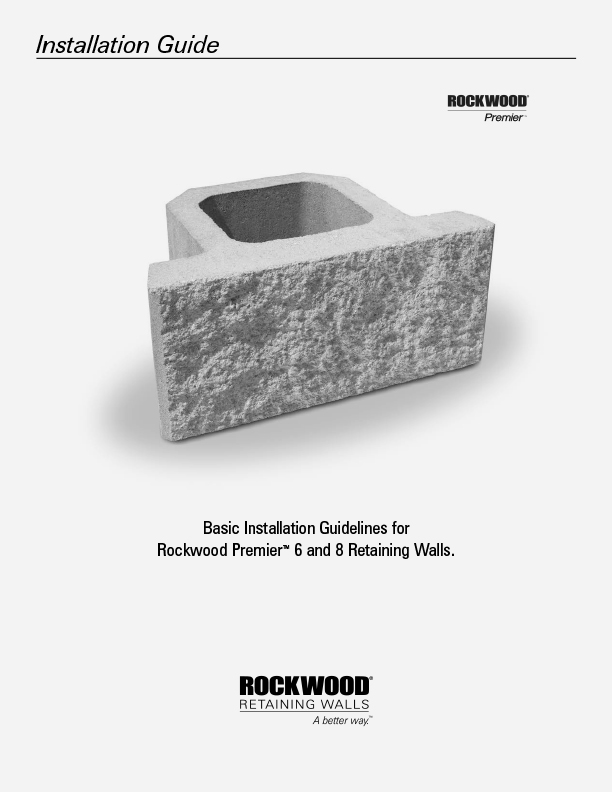

Premier - Installation Manual - English

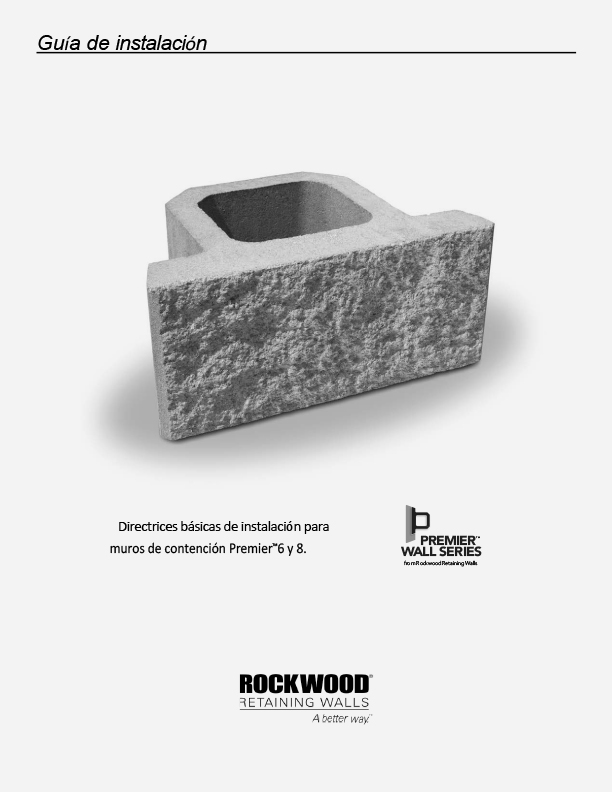

Premier - Installation Manual - Spanish
Premier 8 Freight Savings
Premier Calculating Core Fill Material
