Contours Pavers & Slabs
Contours is the textured top version of our Silhouette paver. A canvas of soft, natural colors intertwined with subtle graining and texture; Contours harmoniously unites the essence of nature with modern sophistication. Available spring of 2024.
Features

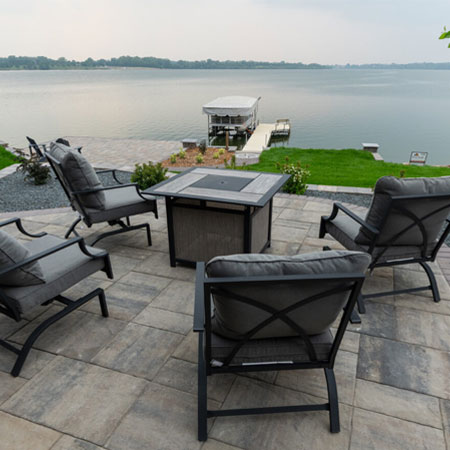

- Suitable for patios, pathways and pool deck applications
- Angled color veining and embossed surface mimics natural stone
- Three-piece, paver systems made in Chroma Color™ (facemix) in Chroma Shield™ protected surface
- Straight edge w/small auto spacer
Contours™ Pavers
| Size/Name | Dimensions | Area/Layer | Area/Pallet | Layers/Pallet | Weight/Pallet |
|---|---|---|---|---|---|
| Small | 9.84" W x 4.92" D x 2.375" H | 8.17 sq.ft. | 81.77 sq.ft. | 10 | 2,260 lbs |
| Medium | 9.84" W x 9.84" D x 2.375" H | ||||
| Large | 14.75" W x 9.84" D x 2.375 " H |
Contours™ XL slabs
| Size/Name | Dimensions | Area/Layer | Area/Pallet | Layers/Pallet | Weight/Pallet |
|---|---|---|---|---|---|
| (XL) Small | 11.81" W x 17.71" D x 2.375" H | 8.00 sq.ft. | 80 sq.ft. | 10 | 2,230 lbs |
| (XL) Medium | 17.71" W x 17.71" D x 2.375" H | ||||
| (XL) Large | 29.52" W x 17.71" D x 2.375" H |
Due to natural variations, always refer to physical samples when choosing colors for aggregate and concrete. Assessing the actual product ensures accuracy in color and texture selection for your project. Get assistance locating your nearest distributor.
Flint
Mist
Beige
Contours™
Contours Pattern 1
Small = 16%
Medium = 33%
Large = 50%
Medium = 33%
Large = 50%
Contours Pattern 2
Small = 16%
Medium = 33%
Large = 50%
Medium = 33%
Large = 50%
Contours Pattern 6
Small = 16.6%
Medium = 33.3%
Large = 50%
Medium = 33.3%
Large = 50%
Contours™ XL
Contours XL Pattern 1
XL Small = 20%
XL Medium = 30%
XL Large = 50%
XL Medium = 30%
XL Large = 50%
Contours XL Pattern 2
XL Small = 11.20%
XL Medium = 33.3%
XL Large = 55.5%
XL Medium = 33.3%
XL Large = 55.5%
Contours XL Pattern 3
XL Small = 20%
XL Medium = 30%
XL Large = 50%
XL Medium = 30%
XL Large = 50%
