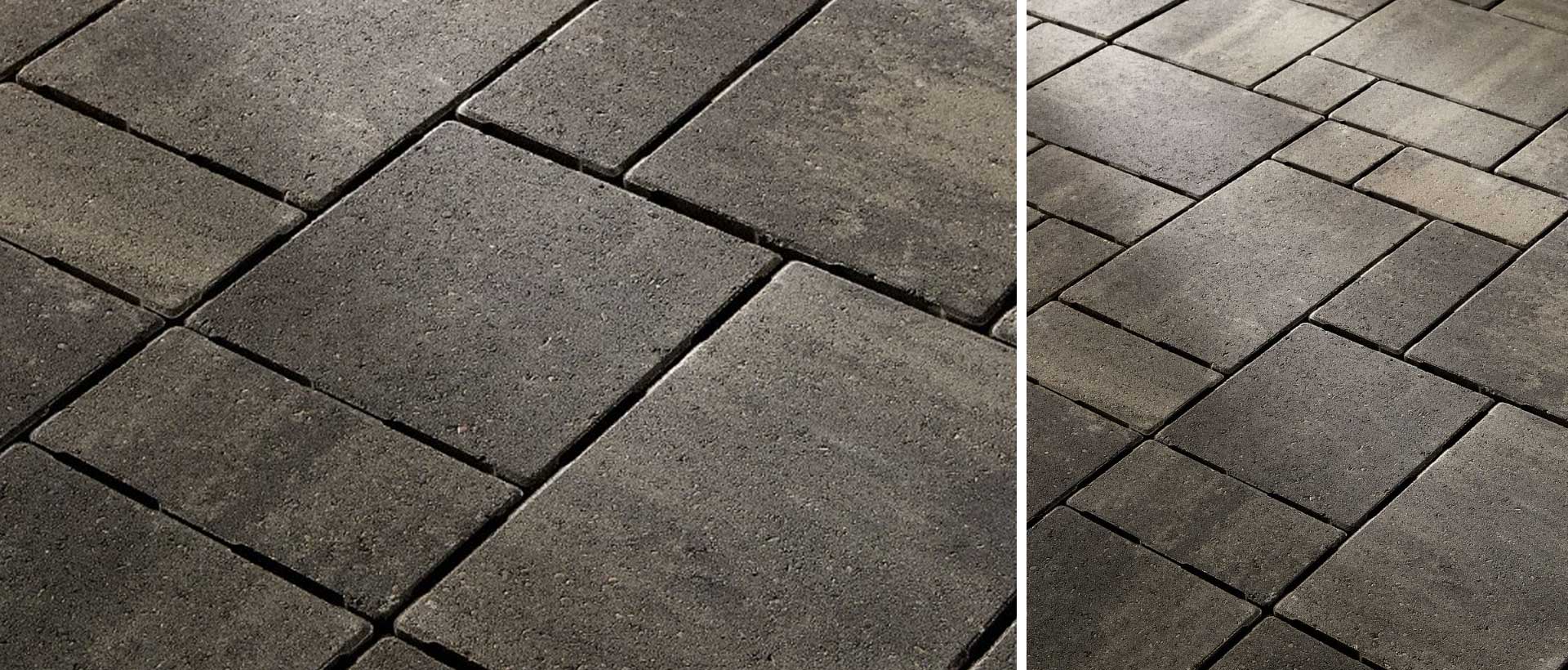

Pacific-Eco 8cm Pavers
Designed specifically as a high-flow-rate eco-permeable paver. Pacific-Eco is ideal for commercial and heavy vehicular applications. Palletized for machine installation.
Features
- Four-piece one-pallet system
- Smooth surface, beveled edge
- Large auto-spacer; high-flow-rate eco/permeable
- Ideal for vehicular applications
- Can be laid with a machine
- Compatible with Holland-Eco

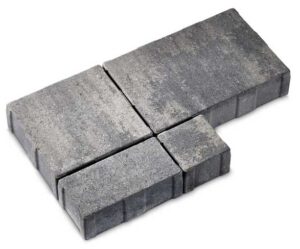

Pacific-Eco 8cm
| Name | Size | Units/Layer | Layers | Units/Pallet | Weight/Pallet |
|---|---|---|---|---|---|
| Small Square | 4.87 x 4.87 x 3.125" H | 28 (13.44 sq.ft.) | 7 (425 lbs.) | 224 (94 sq.ft.) | 2,975 lbs. |
| Large Square | 9.75 x 9.75 x 3.125" H | ||||
| Small Rectangle | 4.87 x 9.75 x 3.125" H | ||||
| Large Rectangle | 14.62 x 9.75 x 3.125" H |
Dimensions shown are nominal. Pallet square footage is accurate, layers and bands square footages have been rounded to the nearest whole number.
Pallet Layer Configuration
Due to natural variations, always refer to physical samples when choosing colors for aggregate and concrete. Assessing the actual product ensures accuracy in color and texture selection for your project. Get assistance locating your nearest distributor.
Beechwood

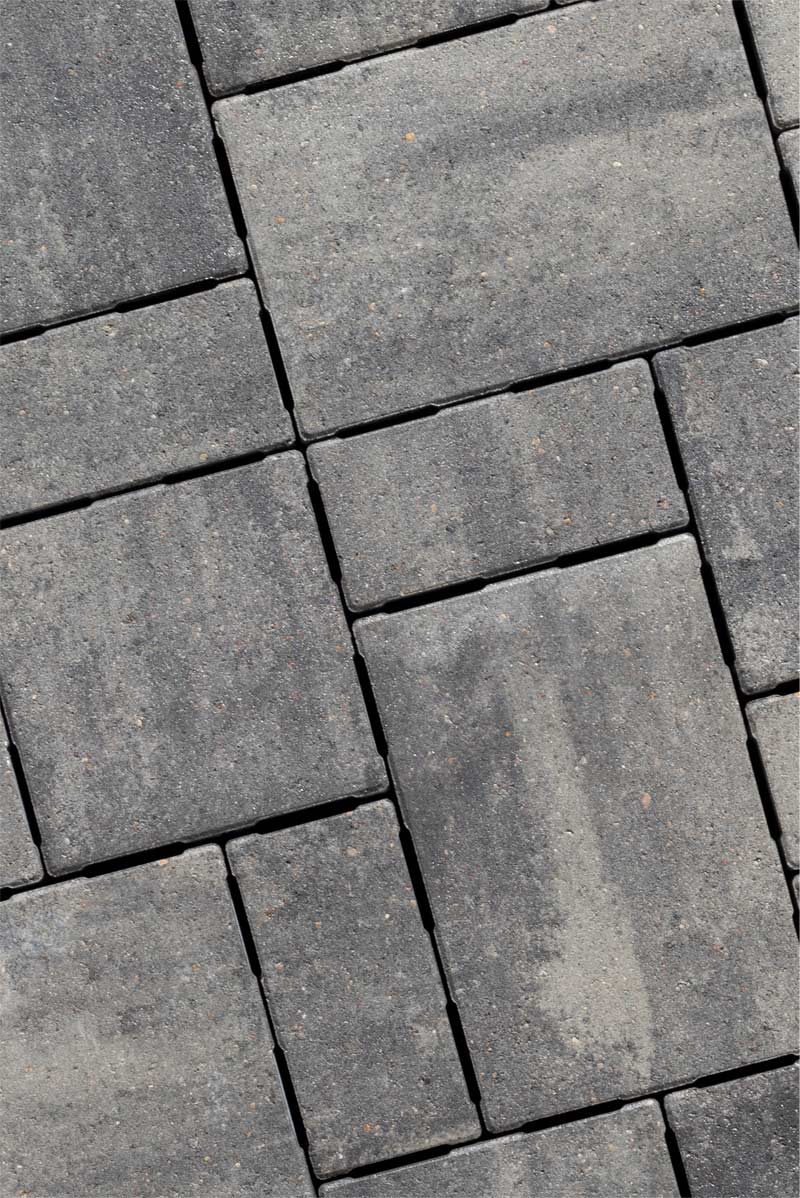

Moonlight Gray
Pattern 1
9.75 x 4.875 = 100% (2, Rectangles)
Pattern 2
4.875 x 9.75 = 50% (2, Rectangles)
4.875 x 4.875 = 50% (2, Squares)
