Broadmour 6cm & 10cm paver

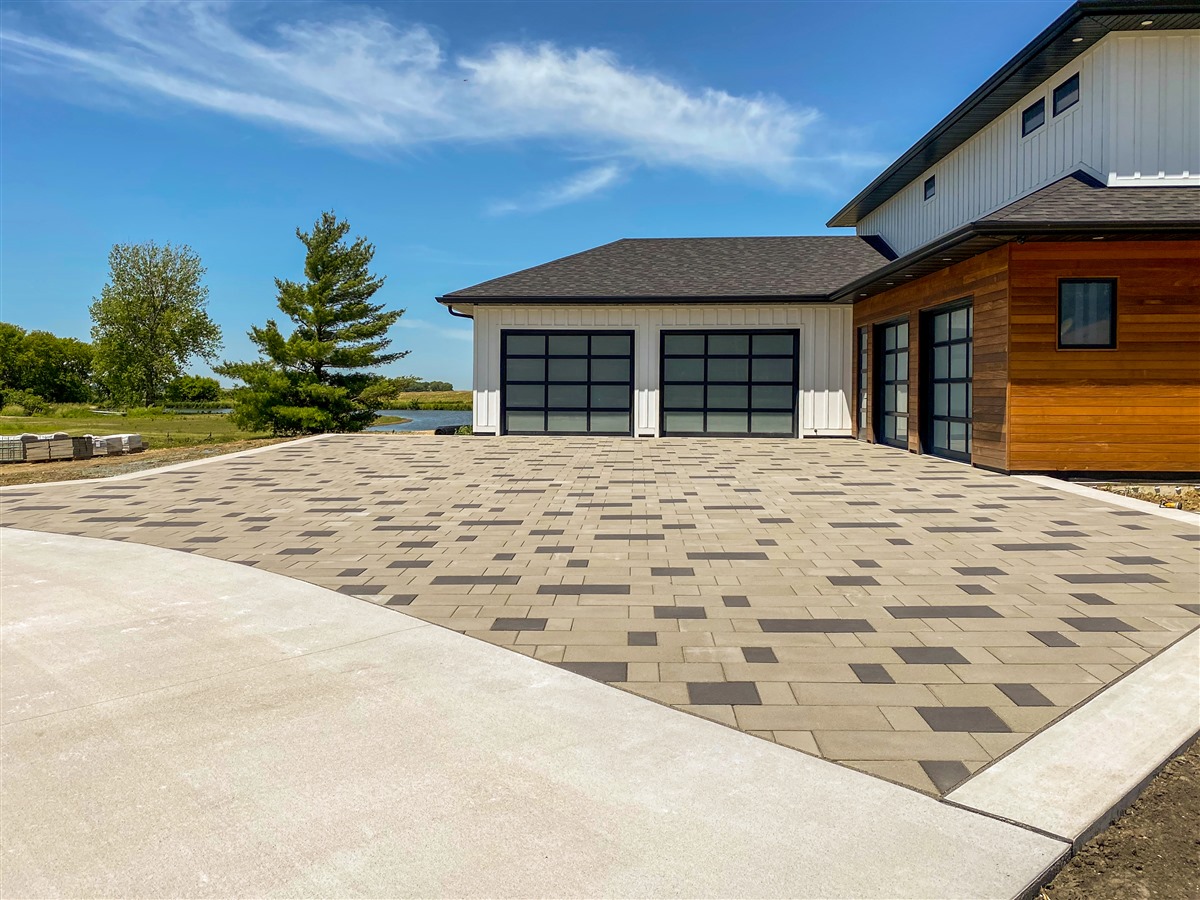

The Broadmour paver is designed for heavy traffic applications. Unlike other pavers Broadmour is able to withstand extreme loads and constant abuse, making it ideal for commercial projects while the narrow profile of the Broadmour Plank™ paver creates a unique, contemporary look for walkways, boulevards, and patios.
Features
- Smooth top, chamfered edges
- Auto spacers, narrow joint
- Lays quickly, patterned or random
- Broadmour 10 cm is suitable for heavy vehicular applications (excluding Plank)
- Plank is permeable and ideal for inset/accenting
- Available with KolorLast Hardscape Protectant
Generate an Estimate
Find a Contractor
Broadmour 6cm
| Size/Name | Dimensions | Area (ea.) | Weight (ea.) | Layers/pallet | Units/layer | Units/pallet | Area/layer | Area/pallet | Weight/pallet |
|---|---|---|---|---|---|---|---|---|---|
| Small | 6 x 12 x 2.375" H | 0.5 sq. ft. | 15.65 lbs. | 24 | 12 | 6 | 144 sq. ft. | 72 sq. ft. | 2,304 lbs. |
| Medium | 12 x 12 x 2.375" H | 1.0 sq. ft. | 30.4 lbs. | 9 | 9 | 10 | 90 sq. ft. | 90 sq. ft. | 2,790 lbs. |
| Large | 24 x 12 x 2.375" H | 2 sq. ft. | 59 lbs. | 6 | 12 | 8 | 48 sq. ft. | 96 sq. ft. | 2,880 lbs. |
| Large Sq. | 24 x 24 x 2.375" H | 4.33 sq. ft. | 113.5 lbs. | 2 | 8 | 10 | 20 sq. ft. | 80 sq. ft. | 2,320 lbs. |
Dimensions shown are nominal. Pallet square footage is accurate, layers and bands square footages have been rounded to nearest whole number.
Broadmour 10cm (special order)
| Size/Name | Dimensions | Area (ea.) | Weight (ea.) | Layers/pallet | Units/layer | Units/pallet | Area/layer | Area/pallet | Weight/pallet |
|---|---|---|---|---|---|---|---|---|---|
| Small † | 6 x 12 x 4" H | 0.5 sq. ft. | 22.93 lbs. | 6 | 15 | 90 | 7.17 sq. ft. | 43 sq. ft. | 2,050 lbs. |
| Medium † | 12 x 12 x 4" H | 1.0 sq. ft. | 46.22 lbs. | 6 | 9 | 54 | 8.67 sq. ft. | 52 sq. ft. | 2,500 lbs. |
| Large † | 24 x 12 x 4" H | 2 sq. ft. | 92 lbs. | 6 | 4 | 24 | 7.67 sq. ft. | 46 sq. ft. | 2,270 lbs. |
Dimensions shown are nominal. Pallet square footage is accurate, layers and bands square footages have been rounded to nearest whole number. †Special Order.
Broadmour Plank 10cm
| Size/Name | Dimensions | Area (ea.) | Weight (ea.) | Layers/pallet | Units/layer | Units/pallet | Area/layer | Area/pallet | Weight/pallet |
|---|---|---|---|---|---|---|---|---|---|
| Plank | 18 x 3 x 4" H | 0.36 sq. ft. | 17.3 lbs. | 6 | 22 | 132 | 7.92 sq. ft. | 47.5 sq. ft. | 2,130 lbs. |
Dimensions shown are nominal. Pallet square footage is accurate, layers and bands square footages have been rounded to nearest whole number. Broadmour Plank is high flow rate permeable. Not suitable for vehicular.
Please note: Always refer to actual product when making final color selection. Get assistance or request the location of your nearest distributor(s).

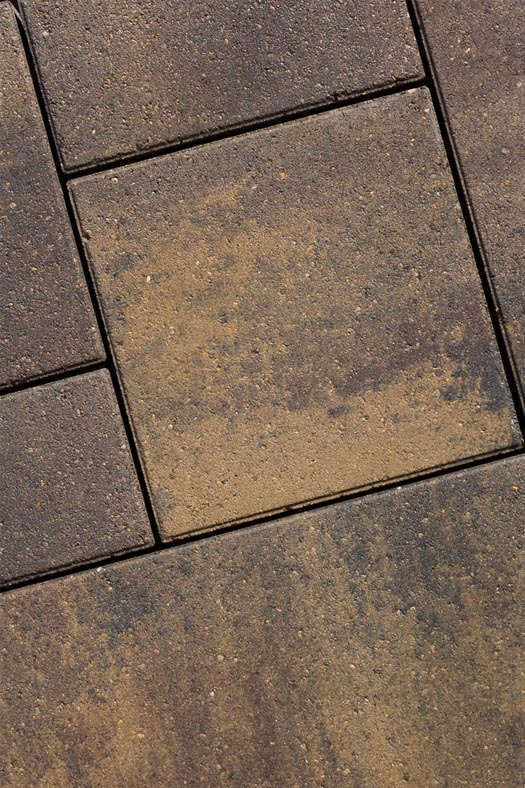

Beechwood

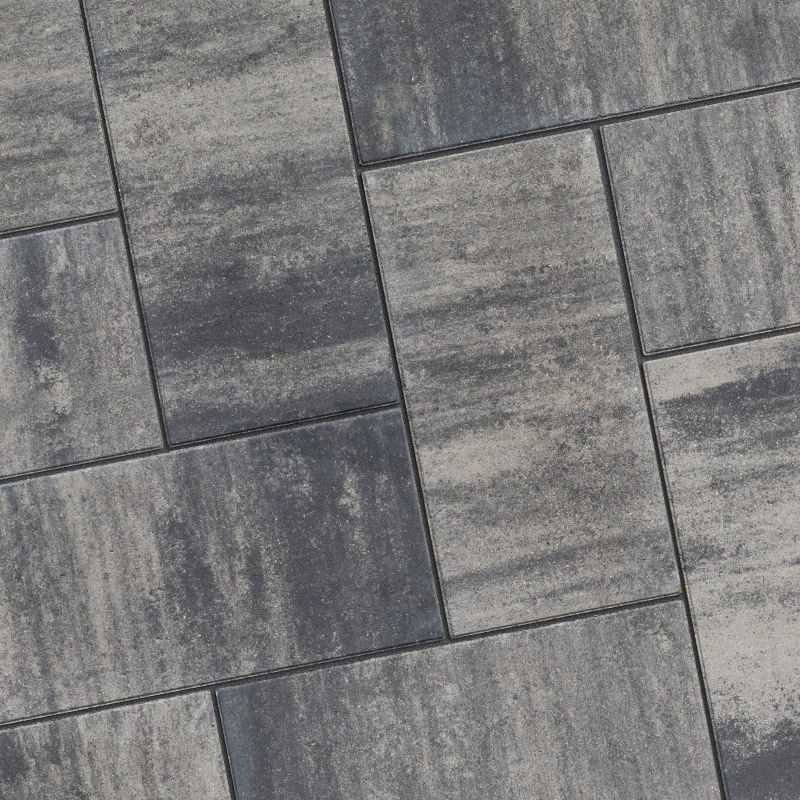

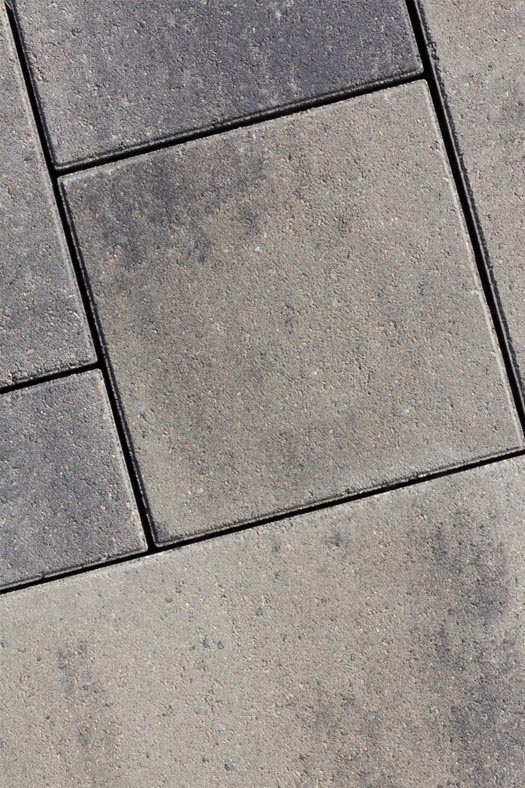

Cascade

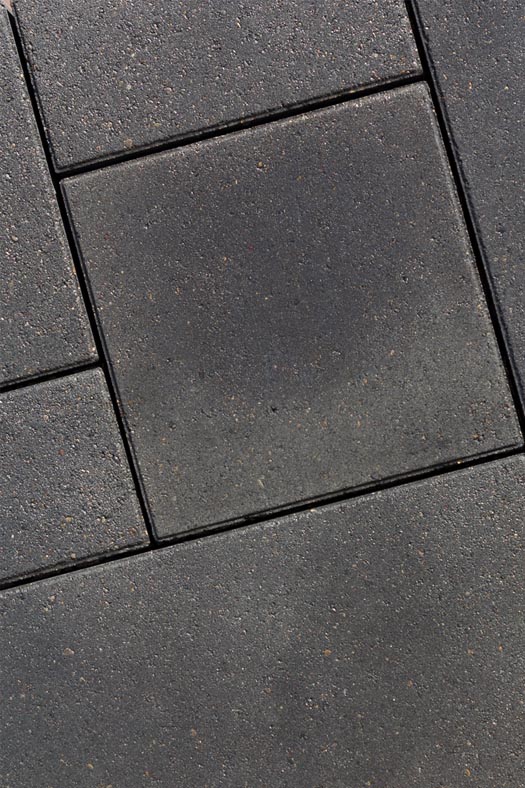

Onyx

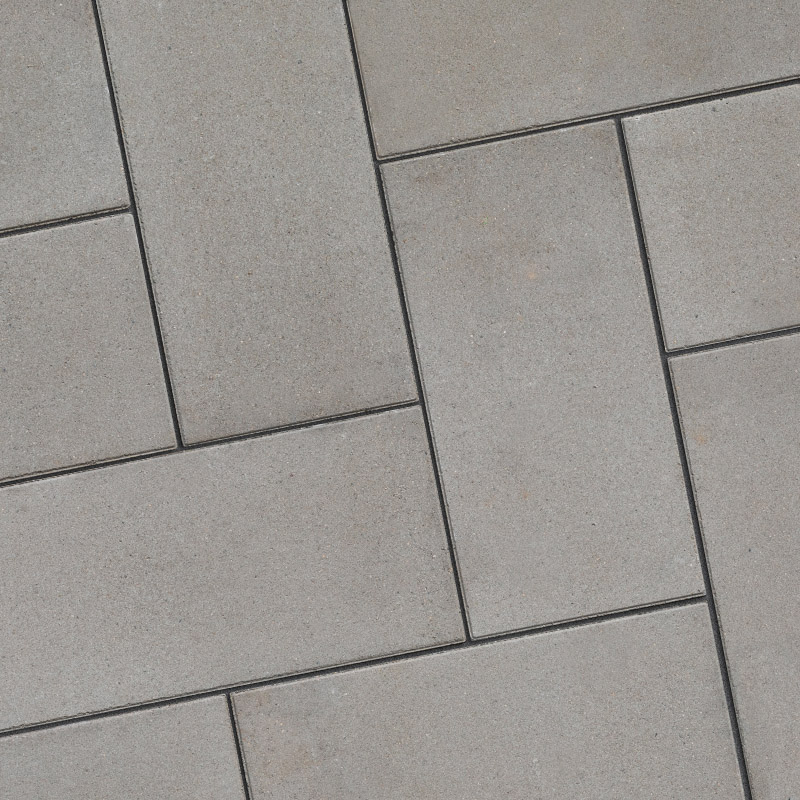

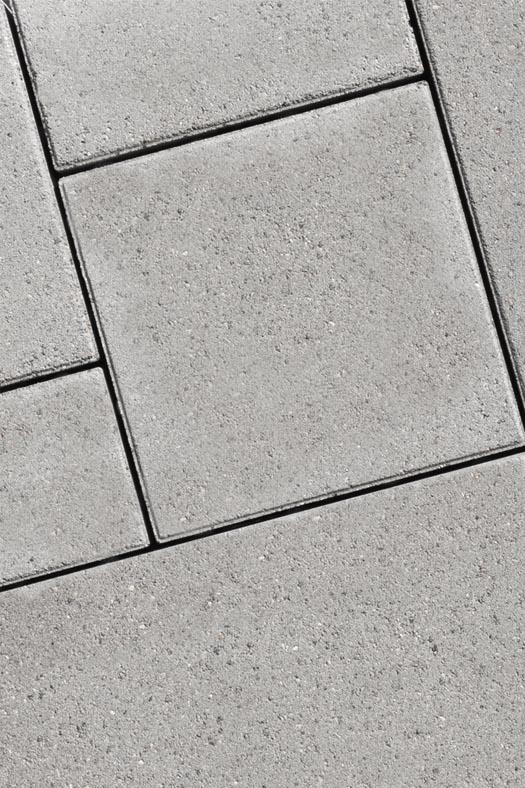

Natural

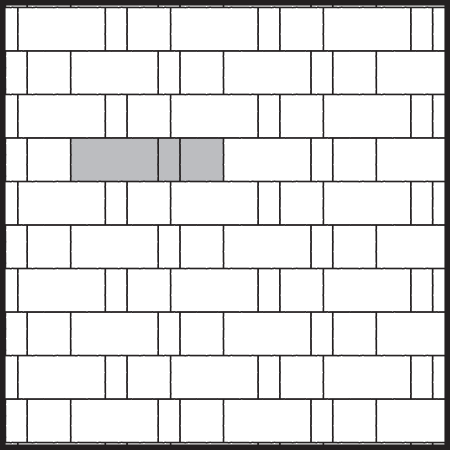

Pattern 1
6 x 12 = 14.29% (1, Small)
12 x 12 = 28.57% (1, Medium)
24 x 12 = 57.14% (1, Large)

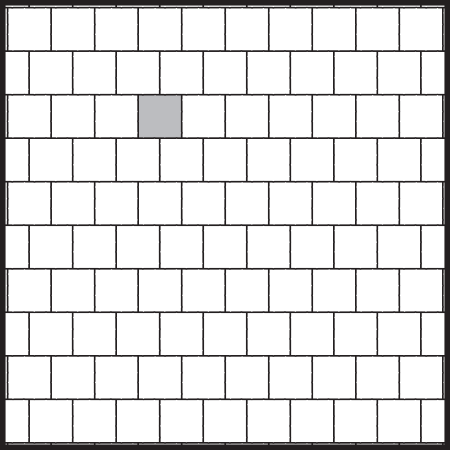

Pattern 2
12 x 12 = 100% (1, Medium)

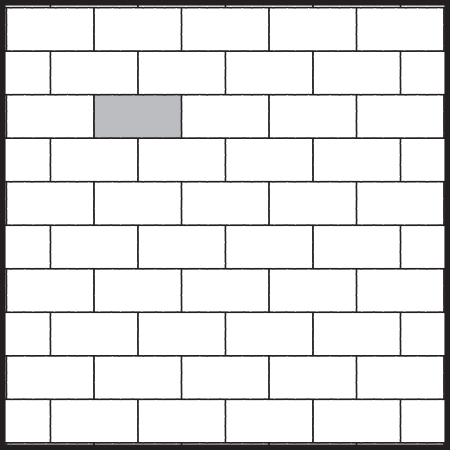

Pattern 3
24 x 12 = 100% (1, Large)

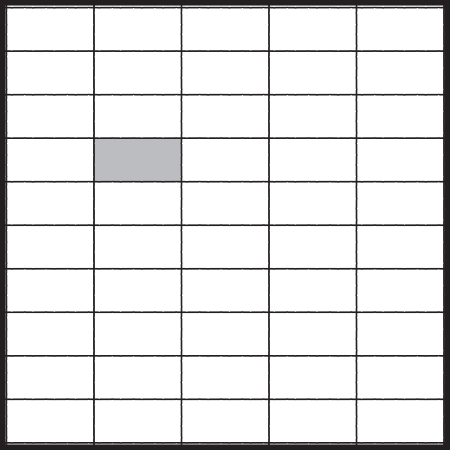

Pattern 4
24 x 12 = 100% (1, Large)

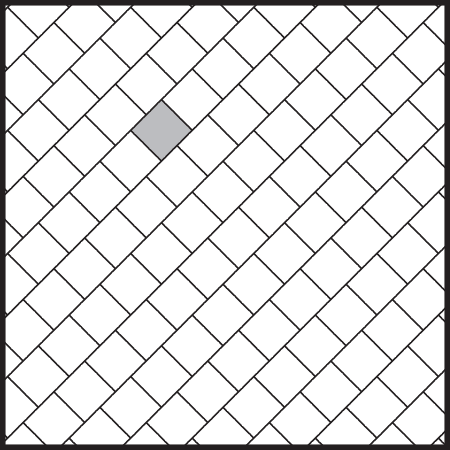

Pattern 5
12 x 12 = 100% (1, Medium)
Plank Pattern 1
18 x 3 = 100% (6, Planks)
Plank Pattern 2
18 x 3 = 100% (1, Plank)
